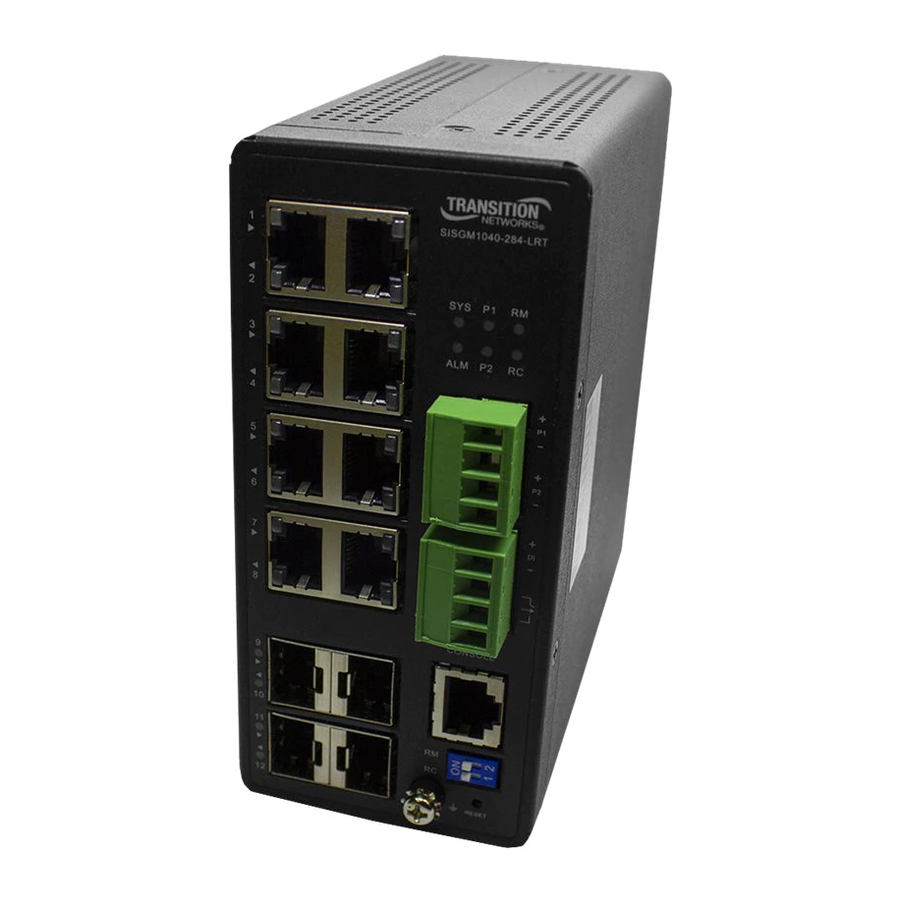

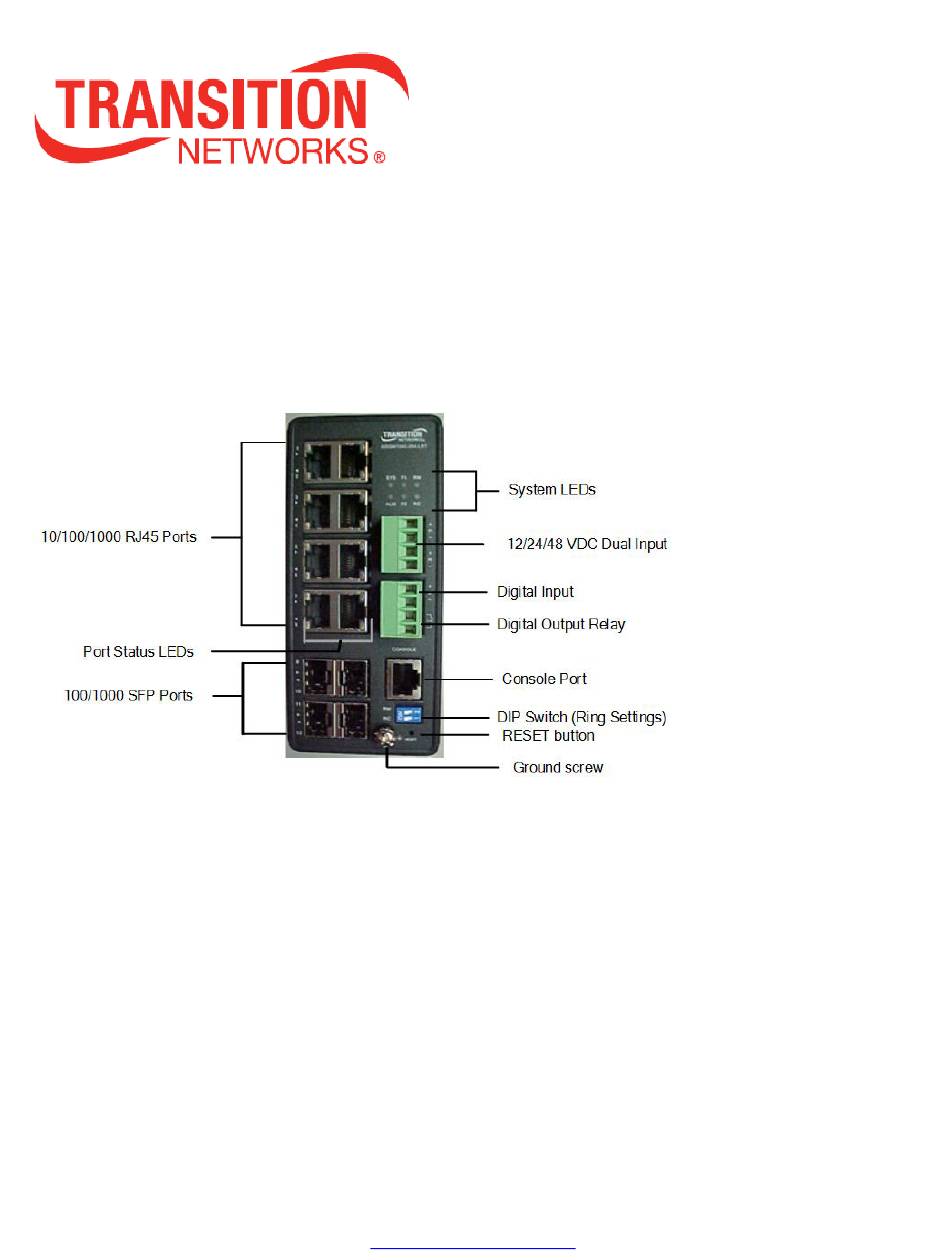

- Page 1 Transition Networks SISGM1040-284-LRT Install Guide SISGM1040-284-LRT Hardened Managed Switch, (8) 10/100/1000Base-T + (4) 100/1000Base-X SFP Slots Install Guide 33808 Rev. B 33808 Rev. B https://www.transition.com Page 1 of 45...
-
Page 2: Safety Warnings And Cautions
Anyone using this product in such an application without express written consent of an officer of Transition Networks does so at their own risk and agrees to fully indemnify Transition Networks for any damages that may result from such use or sale. -
Page 3: Table Of Contents
Transition Networks SISGM1040-284-LRT Install Guide Contents Safety Warnings and Cautions ............................. 2 Introduction ................................. 5 Features ..................................5 Benefits ..................................5 Ordering Information ..............................6 Specifications ................................6 Software Features ................................ 8 DC Power Consumption .............................11 Application Example ..............................12 About This Manual ..............................12 Related Manuals ................................12... - Page 4 Transition Networks SISGM1040-284-LRT Install Guide Compliance Information ............................39 User Information ..............................40 Innovation, Science and Economic Development Canada ICES-003 Compliance Label: ........40 RoHS, WEEE, and Environmental Programs .......................40 Declaration of Conformity ..........................40 Warranty ..................................41 Five-Year Limited Hardware Warranty ........................41 Appendix A. Rapid Ring Operation ..........................43 Rapid Ring Operation .............................43...
-
Page 5: Introduction
SISGM1040-284-LRT also provides carrier Ethernet features such as OAM/CF, ERPS/EPS, and PTPv2, making it suitable for industrial and carrier Ethernet applications. The SISGM1040-284-LRT delivers eight 10M/100M/1G RJ45 ports, four GbE SFP ports and one RJ45 console port. SISGM1040-284-LRT provides high hardware performance and environment flexibility for industrial applications. -
Page 6: Ordering Information
Power Supply, Input: 90-264 VAC, 12VDC, 18 Watts output PS-DC-DUAL Series Power Supply, Input: 100-240 VAC, Dual 56VDC + 12 or 24V output Transition Networks offers a full line of small form factor pluggable (SFP) transceivers. SFPs See our webpage. - Page 7 Transition Networks SISGM1040-284-LRT Install Guide Environmental Operating Operating Temperature Storage Temperature Altitude Humidity Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters 5% to 95% non-condensing -40 to +167⁰ -40 to +75⁰ -40 to +185⁰ -40 to +85⁰ < 10000 <3000 Dimension, Weights, Mounting...
-
Page 8: Software Features
Transition Networks SISGM1040-284-LRT Install Guide Software Features Ring Management ITU-T G.8031 Supports ITU-T G.8031 Ethernet Linear Protection Switching ITU-T G.8032 Supports ITU-T G.8032 Ethernet Ring Protection Switching Rapid Ring Enables self-recover time in less than 20ms Device Management System (DMS) Topology view: Intuitive way to configure and manage switches and devices ⚫... - Page 9 Transition Networks SISGM1040-284-LRT Install Guide IGMP snooping with proxy reporting or report suppression actively filters IGMP IGMP Proxy packets in order to reduce load on the multicast router Delivers IPv6 multicast packets only to the required receivers MLD v1/v2 Snooping...
- Page 10 Transition Networks SISGM1040-284-LRT Install Guide Port based ⚫ 802.1p VLAN priority based ⚫ Classification IPv4/IPv6 precedence / DSCP based ⚫ Differentiated Services (DiffServ) ⚫ Classification and re-marking ACLs ⚫ Ingress policer ⚫ Rate Limiting Egress shaping and rate control ⚫...
-
Page 11: Dc Power Consumption
Transition Networks SISGM1040-284-LRT Install Guide MTBF GB, GC - Ground Benign, Controlled 25°C 951,258 Hrs. GB, GC - Ground Benign, Controlled 75°C 193,332 Hrs. DC Power Consumption * Measured DC power consumption after 60 minutes under full loading with wire speed forwarding. -
Page 12: Application Example
(logon required). For Manuals, Application Notes, Brochures, Data Sheets, Specifications, etc. go to the Support Library (no logon required). Note that this manual provides links to third party web sites for which Transition Networks is not responsible. 33808 Rev. B https://www.transition.com... -
Page 13: Safety Instructions
Transition Networks SISGM1040-284-LRT Install Guide Safety Instructions When a connector is removed during installation, testing, or servicing, or when an energized fiber is broken, a risk of ocular exposure to optical energy that may be potentially hazardous occurs, depending on the laser output power. -
Page 14: Led Descriptions
Transition Networks SISGM1040-284-LRT Install Guide LED Descriptions The front panel LEDs provide switch status as follows: Power LEDs (P1 and P2): indicate whether the switch is powered up correctly. SYS (System) LED: indicates if the system is ready or not. - Page 15 Transition Networks SISGM1040-284-LRT Install Guide ALM (Alarm) LED The ALM (Alarm) LED lights if the monitored temperature or internal voltages are exceeded. Issue critical stage for High / Low Voltage alarm (Power A or B Voltage) Lit Alarm LED in RED Color if Test-point (max) < Volts or if Test-point (min) < Volts.
- Page 16 Transition Networks SISGM1040-284-LRT Install Guide Check the port status by reading the LED behaviors per the table below. Table 4: Port Status LEDs Color State Description The port is enabled and has established a link to the connected device, and Green the connection speed is 1000Mbps.
- Page 17 Transition Networks SISGM1040-284-LRT Install Guide Table 5: RM (Ring Master) and RC (Rapid-Chain) LEDs RM (Ring Master) RC (Rapid-Chain) disable disable Green Ring Master is Enabled Rapid-Chain (Active path) Amber Ring Slave is Enabled Rapid-Chain (Backup path) Error: Rapid-Chain Switch did not find the...
-
Page 18: Installation
Transition Networks SISGM1040-284-LRT Install Guide Installation This section describes switch mounting, grounding, cable connection, configuration, and power connection. Caution: Make sure you have read “Safety Warnings and Cautions” on page 2, “Safety Instructions” on page 17, “Power Supply Warnings & Cautions !!“... -
Page 19: Din Rail Mounting
Transition Networks SISGM1040-284-LRT Install Guide DIN Rail Mounting Mounting steps: 1. Screw the DIN-Rail bracket on with the bracket and screws in the accessory kit. 2. Hook the unit over the DIN-Rail. 3. Push the bottom of the unit towards the DIN-Rail until it snaps into place. -
Page 20: Wall Mounting
Transition Networks SISGM1040-284-LRT Install Guide Wall Mounting The Wall Mount Bracket WMBH-01 is an optional accessory that you must order separately. Mounting steps: 1. Screw on the wall-mount plate with the plate and screws in the accessory kit. 33808 Rev. B https://www.transition.com... -
Page 21: Ethernet Interface Connecting (Rj45 Ethernet)
Transition Networks SISGM1040-284-LRT Install Guide Ethernet Interface Connecting (RJ45 Ethernet) The switch provides two types of electrical interfaces: RJ45 and optical (mini-GBIC). Connecting the Ethernet interface via RJ45: • To connect to a PC, use a straight-through or a cross-over Ethernet cable, •... -
Page 22: Ethernet Interface Connecting (Fiber, Sfp)
Transition Networks SISGM1040-284-LRT Install Guide Ethernet Interface Connecting (Fiber, SFP) For a 100 Mbps fiber port available, prepare the LC connectors or SC connectors (with the use of an optional SC- to-LC adapter). For the available 1000 Mbps fiber ports, use mini-GBIC SFPs. These accept plug in fiber transceivers that typically have an LC style connector. -
Page 23: Alarm Relay (Digital Input And Digital Output Relay)
Transition Networks SISGM1040-284-LRT Install Guide Alarm Relay (Digital Input and Digital Output Relay) Connecting the DI/DO (Digital Input / Digital Output) Relay 1. Insert the negative (ground)/positive DI/DO Relay wires into the terminals, respectively. 2. To keep the DI/DO Relay wires from pulling loose, use a small flat-blade screwdriver to tighten the wire-clamp screws on the front of the Terminal Block connector. -
Page 24: Digital Input And Digital Output Use Case
Transition Networks SISGM1040-284-LRT Install Guide Digital Input and Digital Output Use Case The switch supports Digital Input and Digital Output. The Digital Input enables the switch to detect and log external device status (such as door intrusion detector). The Digital Output could be used to tell administrators if the switch port shows link down, link up or power failure. -
Page 25: Ground Screw
Transition Networks SISGM1040-284-LRT Install Guide Ground Screw The front panel provides a ground screw. After the Switch is mounted and connected, the front panel grounding screw can be used for grounding. Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface before connecting devices. -
Page 26: Dip Switch (Ring Settings)
Transition Networks SISGM1040-284-LRT Install Guide DIP Switch (Ring Settings) The front panel RM/CPL DIP switch lets you set Ring Settings. “DIP Switch (Ring Settings)” on page 24. Note that you can also configure Ring settings via the Web UI and CLI. -
Page 27: Power Supply Specifications
SISGM1040-284-LRT Install Guide Power Supply Specifications Various power supply models are available from Transition Networks. Note that a Power Supply is not included (sold separately). Warning: You must use an isolated power supply in order for Transition Networks to honor the warranty. -
Page 28: Industrial Power Supply 25165
Transition Networks SISGM1040-284-LRT Install Guide Industrial Power Supply 25165 Features • Protected against Short Circuit, Overload, Over Voltage • Convection air cooling • DIN rail mountable • RoHS compliant • MTBF 968.1 Khrs • No load power consumption < 0.3W •... -
Page 29: Industrial Power Supply 25130
Transition Networks SISGM1040-284-LRT Install Guide Industrial Power Supply 25130 The 25130 front panel has a DC OK LED and a +V ADJ screw. Features Variable AC input range Protected against Overload, Over Voltage Convection air cooling DIN rail mountable UL 508 approved... -
Page 30: Ps-Dc-Dual Series Stand-Alone Hardened Power Supply
Transition Networks SISGM1040-284-LRT Install Guide PS-DC-DUAL Series Stand-Alone Hardened Power Supply This stand-alone power supply is designed to offer dual DC power output in extended temperature environments. It has a compact form factor and can be DIN rail mounted. It is a 345 Watt Isolated Power Supply with 56VDC and 12/24VDC Dual Output. -
Page 31: Sps-Ua12Dht Industrial Power Supply
Transition Networks SISGM1040-284-LRT Install Guide SPS-UA12DHT Industrial Power Supply Features • Input: 90 ~ 264 VAC; Output: 12 VDC, 1.3A, 18 Watts • Protection:Short Circuit, Overload, Over Voltage, Overheating • Full load burn in test, RoHS compliant, MTBF 100.0 Khrs Specifications •... -
Page 32: Power Supply Mounting Instructions
Transition Networks SISGM1040-284-LRT Install Guide Power Supply Mounting Instructions Mount as shown in figure only, with input terminals down, or else sufficient cooling will not be possible. Admissible DIN Rail: TS35/7.5 or TS35/15. For DIN Rail fastening: 1. Tilt the unit slightly rearwards. -
Page 33: Power Supply Installation
Transition Networks SISGM1040-284-LRT Install Guide Power Supply Installation Each power supply is a DIN rail power supply with a 150% peak load capability (3 seconds) and high efficiency of up to 94%. They can be mounted on a TS35 Standard DIN rail. -
Page 34: Connecting Power
Transition Networks SISGM1040-284-LRT Install Guide Connecting Power ATTENTION This case must be earth grounded. No DC input may be earth grounded. Use Isolated Power Supply. The switch can be powered from two power supplies (input range 12V ~ 58V). Insert the positive and negative wires into contacts on the terminal block and tighten the wireclamp screws to prevent the wires from being loosened. -
Page 35: Connect And Log In Via The Console Port
Port 22 (In Windows, you can run a terminal emulator such as PuTTY) CLI Initialization and Configuration (Optional) 1. Connect a PC to the SISGM1040-284-LRT Ethernet port (RJ45 Ethernet port). 2. In Telnet, enter the command telnet 192.168.1.77. 3. Login with default account and password (Username: admin / Password: admin). -
Page 36: Connect The Switch To A Windows 10 Pc
Transition Networks SISGM1040-284-LRT Install Guide Connect the Switch to a Windows 10 PC Refer to your PC and OS documentation for more information. Go to your PC’s Control Panel > Network and Internet. Click on Network and Sharing Center. Click on Change adapter settings. -
Page 37: Troubleshooting
If the switch fails, isolate and correct the fault by determining the answers to the following questions and then taking the indicated action. First isolate the problem to the SISGM1040-284-LRT; troubleshoot any other network gear (e.g., other switches, remote devices like IP cameras, WAPs, midspan injectors, etc.) to isolate the problem to the SISGM1040-284-LRT. -
Page 38: Box Label And Device Label
Describe any action(s) already taken to resolve the problem (e.g., changing mode, resetting, etc.): _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ The model # and serial # of all other Transition Networks products in the network: ________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ Describe your network environment (layout, cable type, cable distance, etc.): ____________________________... -
Page 39: Contact Us
Transition Networks SISGM1040-284-LRT Install Guide List TN or third party equipment in the network (e.g., PCs, servers, switches, routers, or hubs, remote devices (camera, etc.), SFPs, etc.): ___________________________________ _________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ Contact Us Technical Support: Technical support is available 24-hours a day... -
Page 40: User Information
Transition Networks SISGM1040-284-LRT Install Guide User Information Caution: changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class A device, pursuant to part 15 of the FCC Rules. -
Page 41: Warranty
In no event shall Transition Networks be liable for incidental or consequential damages, costs, or expenses arising out of or in connection with the performance of the product delivered hereunder. Transition Networks will in no case cover damages arising out of the product being used in a negligent fashion or manner. - Page 42 All warranty claims are subject to the restrictions and conventions set forth by this document. Transition Networks reserves the right to charge a $50 fee for all testing and shipping incurred, if after testing, a return is classified as “No Problem Found.”...
-
Page 43: Appendix A. Rapid Ring Operation
Transition Networks SISGM1040-284-LRT Install Guide Appendix A. Rapid Ring Operation Rapid Ring Operation Rapid Ring is a proprietary redundancy network ring protocol. It can be used to recover the network from critical link failure to provide fault failover protection. Many redundant or network recovery protocols are defined by IEEE, such as spanning tree (STP, RSTP, MSTP) are available to recover the network from link failures. -
Page 44: Rm And Rc Led Descriptions
Transition Networks SISGM1040-284-LRT Install Guide RM and RC LED Descriptions The table below describes RM (Ring Master) and RC (Rapid Chain) LED status: Table 2: LED Status Color State Description Green Ring Master has been detected in the switch. Amber Ring Member has been detected in the switch. - Page 45 Minnetonka, MN 55343, U.S.A. tel: +1.952.941.7600 | toll free: 1.800.526.9267 | fax: 952.941.2322 sales@transition.com techsupport@transition.com customerservice@transition.com Copyright© 2020 Transition Networks. All rights reserved. Printed in the U.S.A. SISGM1040-284-LRT Install Guide, 33808 Rev. B 33808 Rev. B https://www.transition.com Page 45 of 45...
