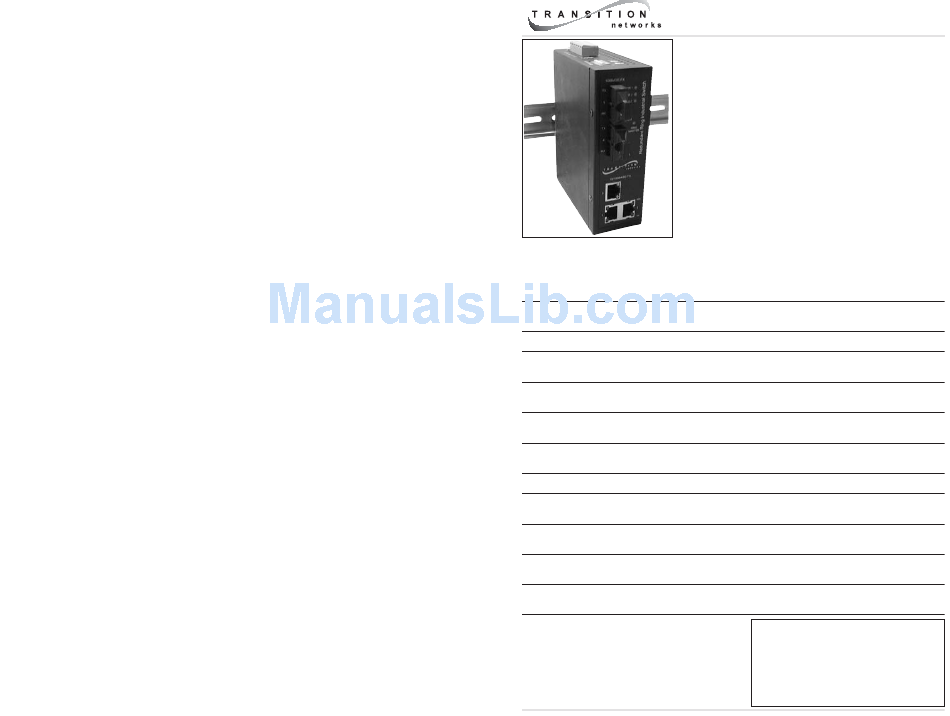

User's Guide
SISTF10xx-130-LR(T)
Stand-Alone Redundant Ring Industrial Switch
• Copper to Fiber
• Ethernet / Fast Ethernet
• 10Base-T / 100Base-TX to 100Base-FX
• Extended Temperature
• Hazardous Environment

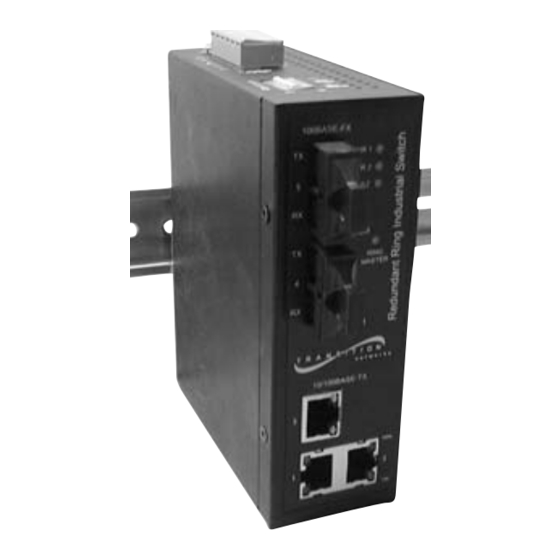

Transition Networks SISTF10xx-130-LR(T) redundant
ring industrial switch connects three (3) 10Base-T /
100Base-TX twisted-pair copper cable lines to two
(2) 100Base-FX fiber-optic cable lines. The
SISTF10xx-130-LR(T) is designed for harsh industrial
environments such as hazardous locations (Class 1 Division 2 / Zone 2), includes a
relay output warning alarm, and is designed to withstand a high degree of vibration
and shock. It is also available in models that operate in either standard or extended
temperature ranges.
Part Number
Ports 1, 2, & 3 - Copper
10Base-T/100Base-TX
Standard Temperature Models: 0°C to 60°C (32°F to 140°F):
SISTF1011-130-LR
RJ-45
100 m (328 ft)*
SISTF1012-130-LR
RJ-45
100 m (328 ft)*
SISTF1013-130-LR
RJ-45
100 m (328 ft)*
SISTF1014-130-LR
RJ-45
100 m (328 ft)*
Extended Temperature Models: -40°C to 75°C (-40°F to 167°F):
SISTF1011-130-LRT
RJ-45
100 m (328 ft)*
SISTF1012-130-LRT
RJ-45
100 m (328 ft)*
SISTF1013-130-LRT
RJ-45
100 m (328 ft)*
SISTF1014-130-LRT
RJ-45
100 m (328 ft)*
* Typical maximum cable distance.
Actual distance is dependent upon the
physical characteristics of the network
installation.
Ports 4 & 5 - 100Base-FX
Duplex Fiber-Optic
ST, 1300 nm multimode
2 km (1.2 miles)*
ST, 1310 nm single mode
15 km (9.3 miles)*
SC, 1300 nm multimode
2 km (1.2 miles)*
SC, 1310 nm single mode
15 km (9.3 miles)*
ST, 1300 nm multimode
2 km (1.2 miles)*
ST, 1310 nm single mode
15 km (9.3 miles)*
SC, 1300 nm multimode
2 km (1.2 miles)*
SC, 1310 nm single mode
15 km (9.3 miles)*
Installation . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . .8
Cable Specifications . . . . . . . . . .10
Technical Specifications . . . . . . .12
Troubleshooting . . . . . . . . . . . . .14
Compliance Information . . . . . . .16
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Transition Networks SISTF10xx-130-LR(T)
Summary of Contents for Transition Networks SISTF10xx-130-LR(T)
- Page 1 • Ethernet / Fast Ethernet • 10Base-T / 100Base-TX to 100Base-FX • Extended Temperature • Hazardous Environment Transition Networks SISTF10xx-130-LR(T) redundant ring industrial switch connects three (3) 10Base-T / 100Base-TX twisted-pair copper cable lines to two (2) 100Base-FX fiber-optic cable lines. The...
-
Page 2: Installation
SISTF10xx-130-LR(T) Installation DIN-Rail Mount The SISTF10xx-130-LR(T) Ethernet switch includes an aluminum DIN-Rail mounting plate attached to the device’s back panel. To mount the SISTF10xx- 130-LR(T) onto a DIN-Rail: Insert the top of the DIN-Rail into the upper slot of the mounting plate. The stiff metal spring should be positioned behind the DIN-Rail. - Page 3 SISTF10xx-130-LR(T) Installation -- Continued CAUTION: Disconnect the SISTF10xx-130-LR(T) from the DC power source BEFORE installing and/or wiring the device. Install the Fiber Cable To build the Redundant Ring network, connect the SISTF10xx-130-LR(T) devices using the two fiber ports labeled “4” and “5”. The fiber links can be connected between two adjacent devices using any of the following combinations: A: Port 4 of one device connected to port 4 of the adjacent device.
- Page 4 SISTF10xx-130-LR(T) Installation -- Continued Switch 6: Ring Master on: Enables the device to be the Ring Master in a Redundant Ring topology. This setting also enables the Redundant Ring break alarm. If a link in the Redundant Ring breaks (and if the SISTF10xx-130-LR(T) is the Ring Master in the Redundant Ring topology), then the internal relay forms an open circuit and the FAULT LED lights up.
-
Page 5: Operation
SISTF10xx-130-LR(T) Operation Status LEDs Use the status LEDs to monitor the SISTF10xx-130-LR(T) in the network. The three LEDs near the top indicate the power and fault status: PWR1 (amber) on = Primary power is connected to device. PWR2 (amber) on = Backup power is connected to the device. FAULT (red) on = If any of the five (5) port alarm switches are “on“... -
Page 6: Cable Specifications
SISTF10xx-130-LR(T) Cable Specifications -- Continued Copper Cable Category 5: (minimum requirement) Gauge: 24 to 22 AWG Attenuation: 22.0 dB /100m @ 100 MHz Maximum Cable Distance: 100 meters • Straight-through OR crossover cable may be used. • Shielded twisted-pair (STP) OR unshielded twisted-pair (UTP) may be used •... -
Page 7: Technical Specifications
SISTF10xx-130-LR(T) Technical Specifications For use with Transition Networks Model SISTF10xx-130-LR(T) or equivalent Standards: IEEE 802.3™, 802.3u™; 802.3x™ Data Rate: 10 Mb/s, 100 Mb/s (copper); 100 Mb/s (fiber) Processing Type: Store and Forward w/ IEEE802.3x™ full-duplex, non-blocking flow control Dimensions: 1.8" x 5.3" x 4.1" (46 mm x 135 mm x 105 mm) Weight: 1.4 lb. -
Page 8: Troubleshooting
Contact Tech Support: 800-260-1312, Int’l: 00-1-952-941-7600. Check the twisted-pair cables for proper connection. Contact Tech Support: 800-260-1312, Int’l: 00-1-952-941-7600. Declaration of Conformity Transition Networks 6475 City West Parkway, Minneapolis MN 55344, USA SISTF10xx-130-LR(T) Series Redundant Ring Industrial Switches SISTF1011-130-LR, SISTF1012-130-LR, SISTF1013-130-LR,... -
Page 9: Compliance Information
All trademarks and registered trademarks are the property of their respective owners. Copyright Restrictions © 2004 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or means (graphic, electronic, mechanical) without written permission from Transition Networks. Printed in the U.S.A.
