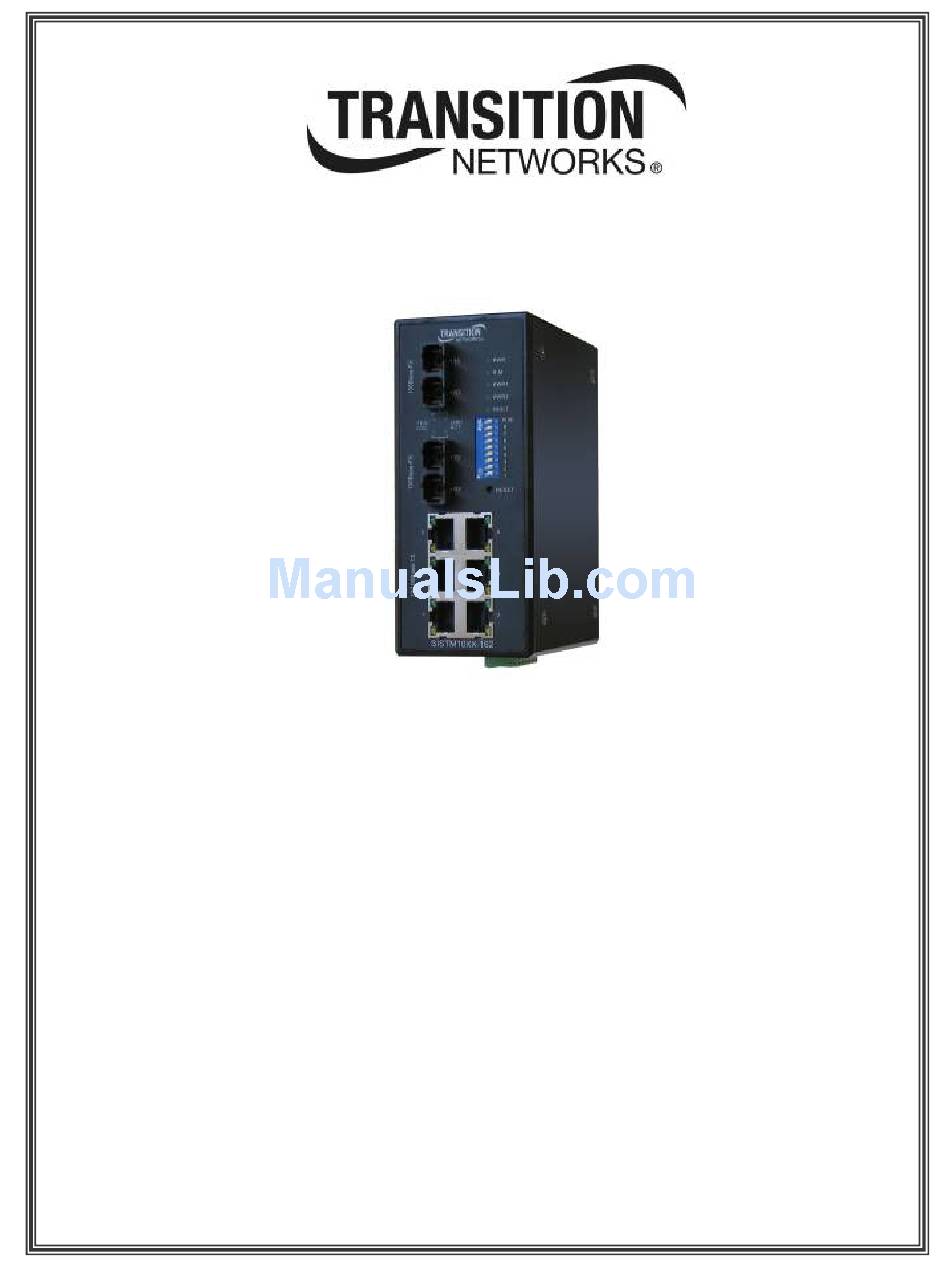

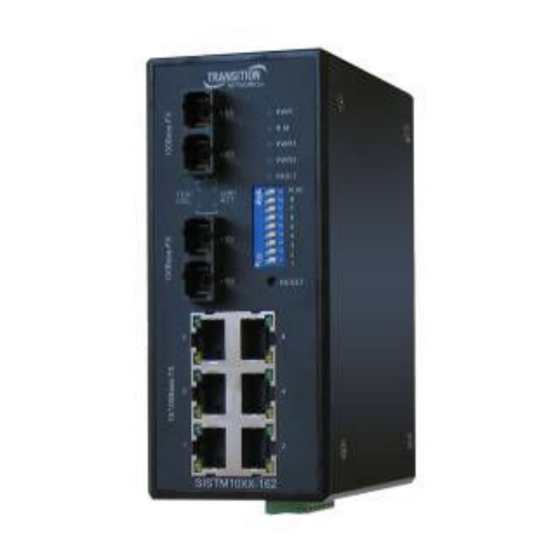

SISTM10xx-162-LR(T)
(6) 10/100Base-TX + (2) 100Base-FX
Industrial Managed Switch
Installation Manual
Rev. 1
25-October-2007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SISTM10xx-162-LR(T) and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Transition Networks SISTM10xx-162-LR(T)

  • Page 1 SISTM10xx-162-LR(T) (6) 10/100Base-TX + (2) 100Base-FX Industrial Managed Switch Installation Manual Rev. 1 25-October-2007...
  • Page 2: Notice

    This manual contents are based on the below table listing software kernel version, hardware version, and firmware version. If the switch functions have any different from the manual contents description, please contact Transition Networks for more information. Firmware Version v1.02 Kernel Version v3.22...
  • Page 3: Table Of Contents

    Contents Notice............................1 FCC Warning ..........................1 CE Mark Warning ........................1 Introduction ........................... 1 Features............................1 Package Contents ........................2 Hardware Description ........................3 Physical Dimension........................3 Front Panel ..........................3 Reset Button .......................... 3 Bottom View..........................4 DIP-switch............................ 4 LED Indicators ..........................
  • Page 4 Port status..........................17 Single Port Information ......................18 Port Statistics..........................18 Port Control..........................19 Switch Setting ..........................19 Port Mirroring ..........................20 VLAN configuration ........................21 Port-based VLAN ......................... 22 802.1Q VLAN........................23 802.1Q VLAN........................24 Alert ............................27 Email Alert Configuration ..................... 27 Event Configuration ......................
  • Page 5 Save Configuration ........................44 Rate Control..........................44 System Log..........................45 System Log Configuration....................45 Event Configuration ......................46 Troubles shooting ........................48 Technical Specification....................... 49...
  • Page 6: Ce Mark Warning

    Introduction The SISTM10xx-162-LRx Managed Industrial Switch is a cost-effective solution and meets the high reliability requirements demanded by industrial applications. The switch can be easily managed through the Web GUI. By using fiber port can extend the connection distance that increases the network elasticity and performance.
  • Page 7: Package Contents

    One wall mount plate and six screws • SISTM10xx-162-LRx DC Jack 2.0/150mm RoHS User Manual CD Wall Mount Plate Screws DIN-Rail Bracket (installed) Compare the contents of the industrial switch with the standard checklist above. If any item is damaged or missing, please contact Transition Networks.
  • Page 8: Hardware Description

    Hardware Description In this paragraph, it will describe the Industrial switch’s hardware spec, port, cabling information, and wiring installation. Physical Dimension 54mm (w) x 135mm (h) x 105mm (d) Front Panel The Front Panel of the SISTM10xx-162-LRx Managed Industrial Switch is shown below: Reset Button The reset button provides user a quick and easy way to restart and set the configuration back to default value.
  • Page 9: Bottom View

    set all configurations back to default setting Bottom View The bottom view of the switch is shown below: Grounding Screw 6-position terminal block Primary power input terminals (2) Secondary power input Contact relay output terminals (2) DIP-switch The switch provides the 9 DIP-switch for configuring the relay alarm operation mode and the master ring operation mode.
  • Page 10: Led Indicators

    Disable port Alarm Enable port Alarm. If the port’s link fails, the fault LED will light up Disable port Alarm Enable port Alarm. If the port’s link fails, the fault LED will light up Disable port Alarm Enable port Alarm. If the port’s link fails, the fault LED will light up Disable port Alarm Enable port Alarm.
  • Page 11: Ports

    No power inputs Power failure or UTP port failure or Fiber port Yellow failure Fault No Power failure or UTP port failure or Fiber port failure occurs The industrial switch is the master of X-Ring Green group R.M. (Ring Master) The industrial switch is not a ring master in X- Ring group Green...
  • Page 12: Fiber Port

    All ports on this industrial switch support automatic MDI/MDI-X operation, user can use straight- through cables (See figure below) for all network connections to PCs or servers, or to other switches or hubs. In straight-through cable, pins 1, 2, 3, and 6, at one end of the cable, are connected straight through to pins 1, 2, 3 and 6 at the other end of the cable.
  • Page 13: Cabling

    ATTENTION This is a Class 1 Laser/LED product. Don’t stare into the Laser/LED Beam. Cabling Using four twisted-pair, Category 5 cabling for RJ-45 port connection. The cable between the • converter and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) long.
  • Page 14: Wiring The Fault Alarm Contact

    Wiring the Fault Alarm Contact The fault alarm contact is in the middle of terminal block connector as below figure shows. By inserting the wires and set the DIP switch at “ON” status, it will detect the fault status which the power is failure or port link failure and form an open circuit.
  • Page 15: Mounting Installation

    Mounting Installation DIN-Rail Mounting The DIN-Rail is screwed on the industrial switch when out of factory. First, insert the top of DIN-Rail into the track. Then, lightly push the DIN-Rail into the track.
  • Page 16: Wall Mount Plate Mounting

    Check the DIN-Rail is tightly on the track. To remove the industrial switch from the track, reverse steps above. Wall Mount Plate Mounting Follow the below steps to mount the industrial switch with wall mount plate. Remove the DIN-Rail from the industrial switch; loose the screws to remove the DIN-Rail. Place the wall mount plate on the rear panel of the industrial switch.
  • Page 17: Hardware Installation

    Hardware Installation Installation Steps Unpacking the Industrial switch Check the DIN-Rail is screwed on the Industrial switch. If the DIN-Rail is not screwed on the Industrial switch. Please refer to DIN-Rail Mounting section for DIN-Rail installation. If user want to wall mount the Industrial switch, then please refer to Wall Mount Plate Mounting section for wall mount plate installation.
  • Page 18: Network Application

    Network Application This chapter provides some sample applications to help user to have more actual idea of industrial switch function application. A sample application of the industrial switch is as below:...
  • Page 19: X-Ring Application

    X-Ring Application The industrial switch supports the X-Ring protocol that can help the network system to recovery from network connection failure within 300ms or less, and make the network system more reliable. The X- Ring algorithm is like as spanning tree protocol (STP) algorithm but it has faster recovery time than STP.
  • Page 20: Coupling Ring Application

    Coupling Ring Application In the network, it may have more than one X-Ring group. By using the coupling ring function can connect each X-Ring for the redundant backup. It can ensure the transmissions between two ring groups will no failure. The following figure is a sample of coupling ring application. Dual Homing Application Dual Homing function is to prevent a lost connection between X-Ring group and upper level/core switch.
  • Page 21: Web-Based Management

    Web-Based Management About Web-based Management On CPU board of the switch there is an embedded HTML web site residing in flash memory, which offers advanced management features and allow users to manage the switch from anywhere on the network through a standard browser such as Microsoft Internet Explorer. The Web-Based Management supports Internet Explorer 6.0.
  • Page 22: Port Status

    Function Menu Bar Home Interface Panel Figure Display Configuration Display Screen Port status View every port status that depended on user’s setting and the negotiation result Port: The port number • Type: The speed mode, ex: 100TX = 100Mbps • Link: “Down”...
  • Page 23: Single Port Information

    Single Port Information Click the port on the Panel figure on the web interface directly. Then, the single port information window will show up and display the port current information. Port information interface Port Statistics The following information provides the current port statistic information Clear Click button to clean all counts...
  • Page 24: Port Control

    Port Control Change the port status Select the port by scroll the Port column • State: Disable or enable control of this port • Negotiation: Set auto negotiation mode is Auto, Nway (specify the speed/duplex on this • port and enable auto-negotiation), or Force Speed: Set the speed of the port •...
  • Page 25: Port Mirroring

    Hardware version: Display the switch hardware version • MAC Address: Display the unique hardware address assigned by manufacturer (default) • Switch settings interface [NOTE] Remember to execute the “Save Configuration” action, otherwise the new configuration will lose when switch power off. Port Mirroring The Port mirroring is a method for monitor traffic in switched networks.
  • Page 26: Vlan Configuration

    Port Mirroring interface [NOTE] Select the monitor mode as disable to disable the mirroring Remember to execute the “Save Configuration” action, otherwise the new configuration will lose when switch power off. VLAN configuration A Virtual LAN (VLAN) is a logical network grouping that limits the broadcast domain, which would, allow you to isolate network traffic so only the members of the VLAN will receive traffic from the same members of VLAN.
  • Page 27: Port-Based Vlan

    VLAN Configuration interface Port-based VLAN Packets can go among only members of the same VLAN group. Note all unselected ports are treated as belonging to another single VLAN. If the port-based VLAN enabled, the VLAN-tagging is ignored. In order for an end station to send packets to different VLAN groups, it itself has to be either capable of tagging packets it sends with VLAN tags or attached to a VLAN-aware bridge that is capable of classifying and tagging the packet with different VLAN ID based on not only default PVID but also other information about the packet, such as the protocol.
  • Page 28: 802.1Q Vlan

    Click to add a new VLAN group(The maximum VLAN group is up to 64 VLAN • groups) Entering the VLAN name, group ID and grouping the members of VLAN group • Apply And then, click • VLAN—PortBase Add interface The VLAN group will list •...
  • Page 29: 802.1Q Vlan

    802.1Q VLAN Tagged-based VLAN is an IEEE 802.1Q specification standard which it allows to create a VLAN across devices from different switch venders. IEEE 802.1Q VLAN uses a technique to insert a “tag” into the Ethernet frames. Tag contains a VLAN Identifier (VID) that indicates the VLAN numbers. All ports on the switch belong to default VLAN, VID is 1.
  • Page 30 Grouping the ports and click button • 802.1q VLAN –Add interface Next And then, click then follow interface as below. •...
  • Page 31: Port Vlan Id

    Apply Click to set the outgoing frames are VLAN-Tagged frames or untagged Tag: Outgoing frames with VLAN-Tagged Untag: Outgoing frames without VLAN-Tagged Port VLAN ID Configure port VID settings • Port VLAN ID: Enter the port VLAN ID • Apply And then, click •...
  • Page 32: Alert

    Alert There are three kinds of alert – e-mail, event, and power alarm for user to configure. Email Alert Configuration When the specific events occur, the system will send the alert to the email account that is assigned by user. User can set up the mail server IP, mail account, and forwarded email account for receiving the event alert.
  • Page 33: Event Configuration

    Event Configuration The selected events that occur will send out the alert to the assigned SMTP server. Also, user can select port events for alerting. System event selection: 4 selections – Device cold start, Power status, SNMP Authentication • Failure, and X-Ring topology changes. Mark the checkbox to select the event. When selected events occur, the system will sent out the alerting Device cold start: When the device executes cold start action, the system will send out the alert to the dedicate SMTP server...
  • Page 34: Power Alarm Configuration

    Power Alarm Configuration Power alarm function enables the Relay alarm action. Without enabling power alarm function, the Relay alarm action will not work even the Relay alarm is set. Apply Mark the check box and click button • Power Alarm interface IP Configuration User can configure the IP Settings and DHCP client function DHCP Client: To enable or disable the DHCP client function.
  • Page 35: Sntp Configuration

    IP configuration interface SNTP Configuration User can configure the SNTP (Simple Network Time Protocol) settings. The SNTP allows user to synchronize switch clocks in the Internet. SNTP Client: To enable or disable SNTP function to get the time from the SNTP server •...
  • Page 36 MEWT - Middle European Winter SWT - Swedish Winter EET - Eastern European, USSR Zone 1 +2 hours 2 pm BT - Baghdad, USSR Zone 2 +3 hours 3 pm ZP4 - USSR Zone 3 +4 hours 4 pm ZP5 - USSR Zone 4 +5 hours 5 pm ZP6 - USSR Zone 5...
  • Page 37: Ip Security

    IP Security IP security function allows user to assign 10 specific IP addresses that have permission to access the switch through the web browser for the securing switch management. Enable the IP Security: Mark the check box to enable the IP security function •...
  • Page 38: System Configuration

    System Configuration User can view spanning tree information about the Root Bridge • Apply User can modify RSTP state. After modification, click button • RSTP mode: user must enable or disable RSTP function before configure the related parameters Priority (0-61440): a value used to identify the root bridge. The bridge with the lowest value has the highest priority and is selected as the root.
  • Page 39: Per Port Configuration

    RSTP– System Configuration Interface Per Port Configuration Configure path cost and priority of every port Select the port in Port column • Path Cost: The cost of the path to the other bridge from this transmitting bridge at the specified •...
  • Page 40: X-Ring

    RSTP – Per Port Configuration interface X-Ring X-Ring provides a faster redundant recovery than Spanning Tree topology. The action is similar with STP or RSTP, but the algorithms not the same. In the X-Ring topology, every switch should enable X-Ring function and assign two member ports in the ring.
  • Page 41 The system also supports the coupling ring that can connect 2 or more X-Ring group for the redundant backup function and dual homing function that prevent connection lose between X-Ring group and upper level/core switch. Enable X-Ring: To enable the X-Ring function. Marking the check box to enable the X-Ring •...
  • Page 42: Qos Configuration

    QoS Configuration Configure Qos setting of the every port Oos Policy: Select the Qos policy rule • Using the 8,4,2,1 weight fair queue scheme: The switch will follow 8:4:2:1 rate to process priority queue from Hi to lowest queue. For example: the system will process 8 high queue packets, 4 middle queue packets, 2 low queue packets, and the one lowest queue packets at the same time Use the strict priority scheme: The higher queue will always be process first,...
  • Page 43: Igmp

    QoS configuration Interface IGMP The Internet Group Management Protocol (IGMP) is an internal protocol of the Internet Protocol (IP) suite. IP manages multicast traffic by using switches, routers, and hosts that support IGMP. Enabling IGMP allows the ports to detect IGMP queries and report packets and manage IP multicast traffic through the switch.
  • Page 44: Security Manager

    Message Description A message sent from the querier (IGMP router or switch) asking Query for a response from each host belonging to the multicast group. A message sent by a host to the querier to indicate that the host wants to be or is a member of a given group indicated in the Report report message.
  • Page 45: Snmp Configuration

    Apply And then, click Security Manager interface [NOTE] Remember to execute the “Save Configuration” action, otherwise the new configuration will lose when switch power off. SNMP Configuration The SNMP is a Protocol that governs the transfer of information between management and agent. The switch supports SNMP V1.
  • Page 46: System Options

    System Options Name: Enter a name for the switch • Location: Enter the switch physical location • Contact: Enter the name of contact person or organization • Community strings Serve as a password. Strings: Key in the name of string •...
  • Page 47: Tftp Backup Configuration

    TFTP Restore Configuration interface TFTP Backup Configuration User can save current flash ROM value from the industrial switch to the TFTP server, then go to the TFTP restore configuration page to restore the image value back to the industrial switch. TFTP Server IP Address: Key in the TFTP server IP •...
  • Page 48: Factory Default

    Apply And then, click • TFTP Update Firmware interface Factory Default Reset Switch to default configuration. Except the IP address, subnet mask, default gateway, username, and password will remain as user configured. Default Click button to reset switch to default setting •...
  • Page 49: Save Configuration

    Save Configuration Save the industrial switch configuration to the flash memory. Power off the industrial switch without the saving, all changed configuration will lost. Save Flash Click the button the save the configuration • Save Configuration Interface Rate Control Set up every port’s bandwidth rate and packet limitation type Limit Packet type: Select the packet type that wants to filter.
  • Page 50: System Log

    Rate Control Interface [NOTE] Remember to execute the “Save Configuration” action, otherwise the new configuration will lose when switch power off. Qos and Rate control cannot be existed at the same. System Log Set up system log events and view the system log events System Log Configuration Reload Click...
  • Page 51: Event Configuration

    System Log Configuration interface Event Configuration User can select the system log events. When selected events occur, the system will send out the log information. Also, per port log events can be selected. System event selection: 4 selections – Device cold start, Power status, SNMP Authentication •...
  • Page 52 Apply After selected, click • Event Configuration interface...
  • Page 53: Troubles Shooting

    Troubles shooting Verify that is using the right power cord/adapter (DC 12-48V), please don’t use the power • adapter with DC output bigger than 48V, or it will burn this converter down. Select the proper UTP cable to construct user network. Please check that is using the right •...
  • Page 54: Technical Specification

    Technical Specification IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX and 100Base-FX Fast Ethernet IEEE802.3x Flow Control and Back-pressure Standard IEEE802.1d spanning tree / IEEE802.1w rapid spanning tree IEEE802.1p class of service IEEE802.1Q VLAN Tag Protocol CSMA/CD SNMP management Management Web interface management One default button for system default setting RFC 1213 MIBII RFC 1493 Bridge MIB...
  • Page 55 4 types of packet filter rule with different packet combination: All of packet Packet filter Broadcast/ multicast/ unknown unicast packet Broadcast/ multicast packet Broadcast packet only MAC address 2K MAC address table Memory Buffer 1Mbits Per port: Link/Activity (Green), Full duplex/Collision (Yellow) Per unit: Power (Green), Power 1 (Green), Power 2 (Green), Fault (Yellow), Master (Green) 10Base-T: 2-pair UTP/STP Cat.
  • Page 56 IEEE802.1d spanning tree Spanning tree IEEE802.1w rapid spanning tree. IGMP v1 and Query mode IGMP Up to 256 groups. SMTP Support SNTP to synchronize system clock in Internet Support SMTP Server and 4 e-mail accounts for receiving SNTP event alert Management IP security IP address security to prevents unauthorized intruder TX packet only...
  • Page 57 Case Dimension IP-30, 54 mm (W) x 135 mm (H) x 105mm (D) FCC Class A, CE EN61000-4-2 (ESD), CE EN61000-4-3 (RS), CE EN-61000-4-4 (EFT), CE EN61000-4-5 (Surge), CE EN61000-4-6 (CS), CE EN61000-4-8, CE EN61000-4-11, CE EN61000-4-12, CE EN61000-6-2, CE EN61000-6-4 Safety UL, cUL, CE/EN60950-1 IEC60068-2-32 (Free fall)
