SISTM1040-262D-LRT-B Quick Start Guide

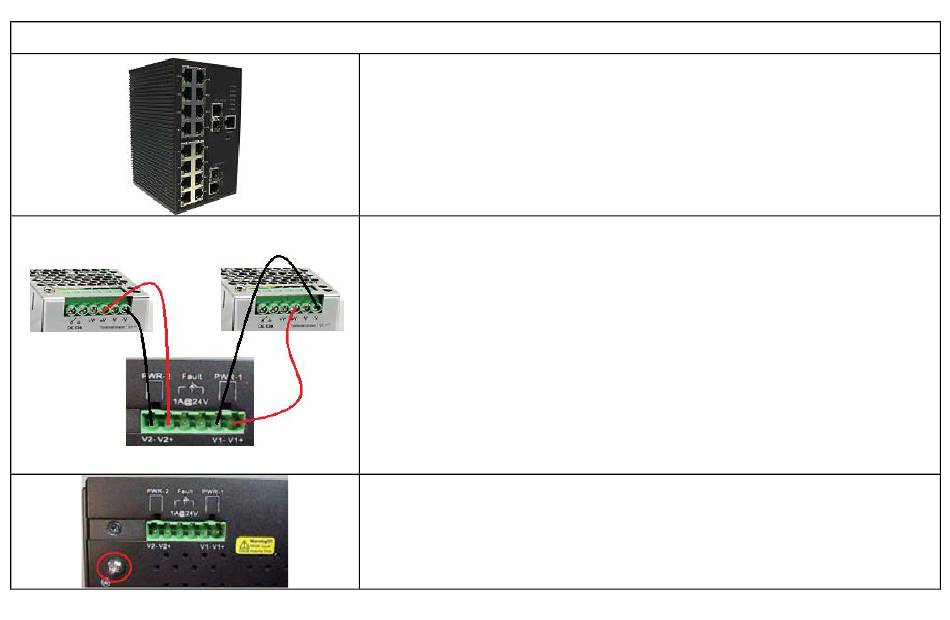

Package Contents
• SISTM1040-262D-LRT-B Hardened 18 Port Switch
• Wall Mount Bracket
• Quick Start Guide
• Console DB-9 to RJ45 Cable
• 6-Pin Terminal Block Power Connector
Redundant Power Inputs
The switch has two 12-48VDC power inputs, power input 1 and
power input 2. Positive and negative terminals are labeled V+ and
V- for each input. Note polarity on the chassis of the switch.
Suitable wire sizes to use for the power connection are
12~22AWG. 16AWG or 18AWG is preferred. Connect wires
between the + terminals on the power supply and the
on the switch terminal block. Do the same with the
Maintain correct polarity. Ensure the screws are tight and the
wires secure.
Chassis Ground
There is a chassis ground screw that can be used to ground the
device enclosure. Only negative grounding should be used.
+
terminals
–
terminals.
