SISTP1040-382B-LRT
Unmanaged Hardened Gigabit Ethernet PoE+ Switch with Low Voltage Input
Quick Start Guide
Note: See the Install Guide for important information on Safety Warnings and Cautions,
Features, Benefits, Specifications, Front Panel, LED, Back Panel, Reset button, Installation,
SFP Modules, Connection, Grounding, Connecting DC Power, Optional Power Supply,
Troubleshooting, and Related Information.
This switch is an unmanaged full Gigabit Ethernet hardened PoE+ switch that complies with IEEE 802.3at and 802.3af.
The switch has eight 10/100/1000Base-T PoE+ ports with two 100/1000 dual speed SFP slots. In many fields such as
Vehicle, Factory or Solar systems, there are no standard power input requirements of 52 to 57 volts for PoE devices.
The SISTP1040-382B-LRT uses booster technology to let you deploy the PoE switches in the input power range of 12 to
24 volts, while still delivering up to 30 Watts on each PoE+ port.

Package Contents

: Make sure you have received these items: one Switch, one Terminal Block, one Quick Start Guide,
and one Mounting kit. Contact your sales representative if any item is missing. Save the packaging for possible future
use.
Note: The switch is an indoor device; if connecting outdoor devices such as outdoor IP cameras or outdoor WAPs with
cable, you must install an arrester on the cable between the outdoor device and the switch.

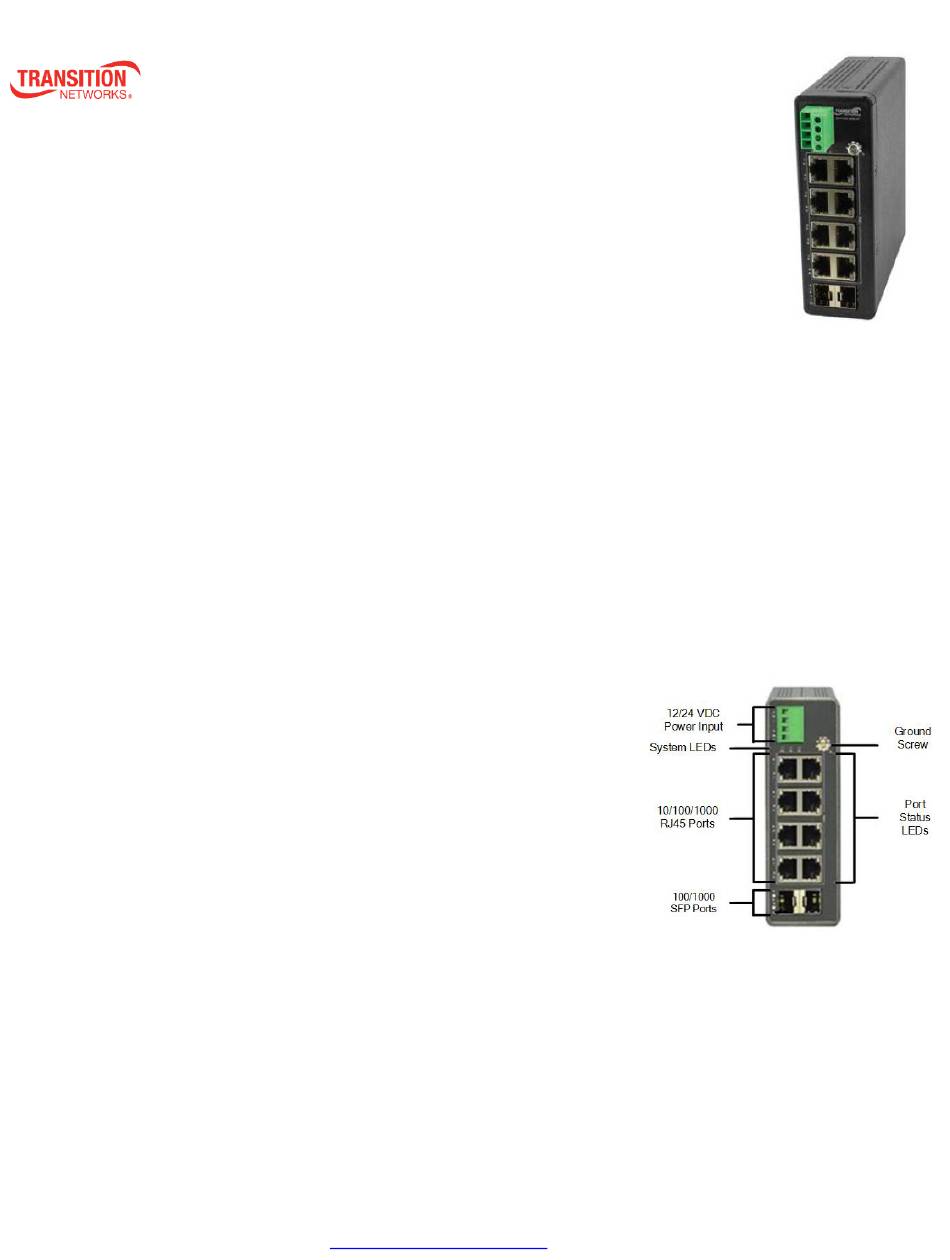

Front Panel

: The front panel provides the power input, LEDs, ports, and ground
screw as described below.

LED Descriptions

: The front panel LEDs allow switch status monitoring.
Power LEDs: indicate if the switch is powered up correctly or not.
System LED: indicates if the system is ready or not.
Port Status LEDs: indicates the current status of each port. These LEDs display
port status.

Reset Button

: Press the bottom panel Reset button to reboot the switch.

DIN Rail Mount

: 1. Attach the DIN Rail mounting kit to rear panel of the chassis. Insert screws and tighten then with a
screwdriver to secure the kit. 2. Insert the upper lip of the DIN rail into the DIN-rail mounting kit and press the switch
towards the DIN rail until it snaps into place. 3. Make sure that the switch is attached securely to DIN Rail.
Wall Mount: 1. Attach the wall mounting plates to rear panel of the chassis. Insert screws and tighten with a screwdriver
to secure the plates. 2. Install user-supplied screws on the appropriate location on the wall. 3. Make sure the switch is
attached securely to wall.
33805 Rev. B https://www.transition.com Page 1 of 2
