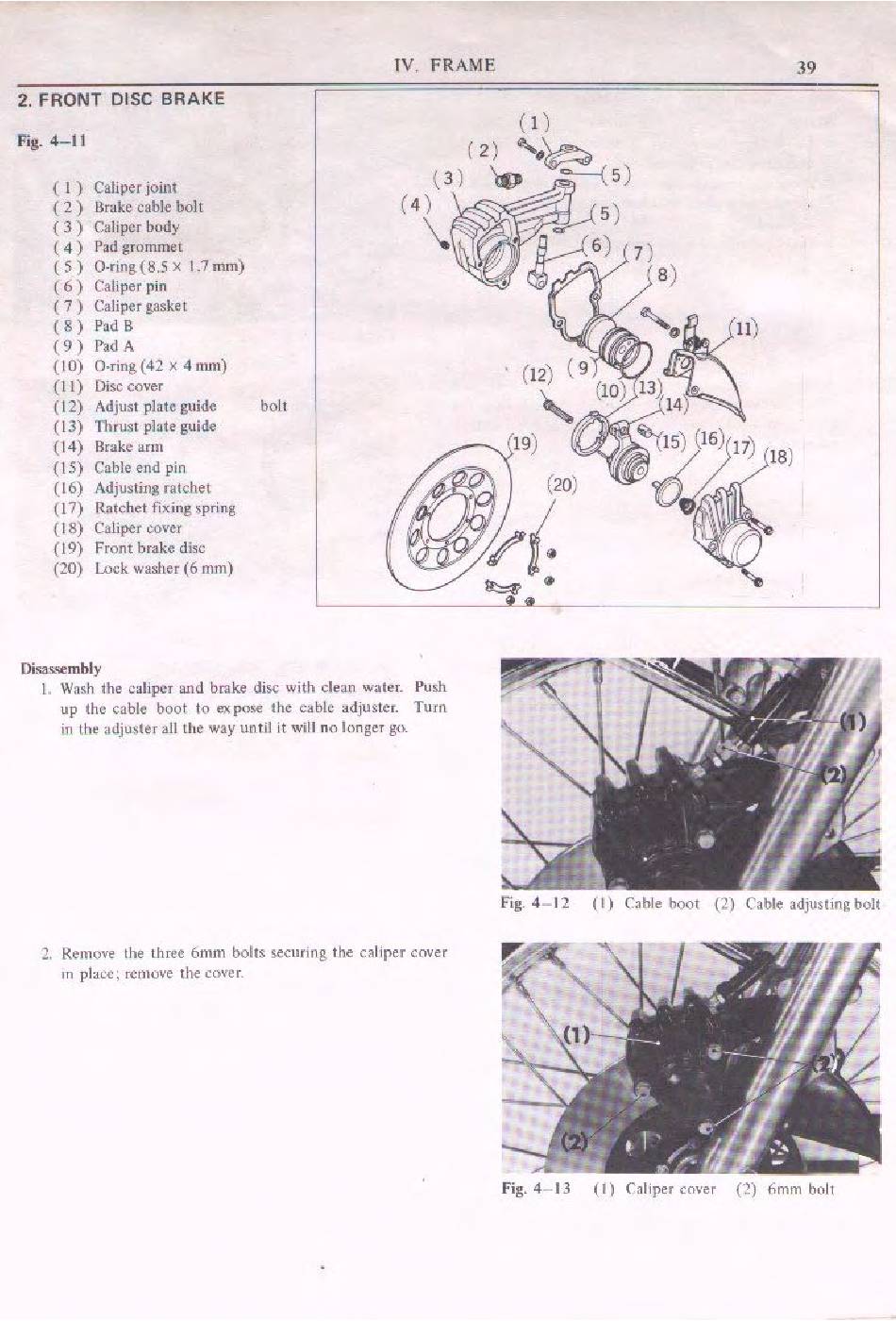

2. FRONT DISC BRAKE
Fig.
4-11
( I ) Caliper joint
(
2) Brake
cable bolt
(
3
) Caliper body
(
4
)
Pad
grommet
( 5)
0-riJlg
(8.5
x
1.7
mm)
( 6)
Caliper
pin
( 7 ) Caliper gasket
( 8)
Pad B
(9) Pad A
(10) 0,ring(42X 4nun)
(
I I)
Disc cover
(
12)
Adjust
plate
guide
bolt
(I 3) llirust
plate
guide
( 14) Brake arm
(15)
Cable end
pin
(
I
6)
Adjusting ratchet
(I 7) Ratchet fixing spring
(
18)
Caliper cover
(19)
Front brake disc
(20)
Lock washer
(6
mm)
Disa.~sembly
IV. FRAME
I.
Wash
the caliper and brake disc with clean water.
Push
up the cable boot to ex pose the cable
adjuster.
Turn
in
the
a<ljuster all
the
way
until
it
will
no
longer go.
2.
Remove the three 6mm bolls securing
the
caliper cover
m place: remove the cover.
7)
8)
18)
39
Fig.
4-
12
(I) Cahle hoot (2) Cable adjusting bolt
Fig.
4
-
13
(1)
Caliper cover
(2) 6mm bolt
