FRAME
Rear
Fork
J.
Remove
the
rear wheel (See page
48)
2.
Remove
the rear shock absorbers. (See
page
56)
3.
Remove
the bolts
securing the drive chain ca.~
in
place;
take out the chain c,iso.
4.
Unscrew
the
self-locking
nut; withdraw the rear
fork
pivot
bolt Remove tl1e
rear fork from the
frame.
5.
Remove
the dust seal cups, dust
s.,al
rubbers
and rear
fork collars frc,m the rear fork.
Inspection
L.
Check
the
free length of the
rear
shock absorber
spring
Standard value: 196.7mm
(7.7441-in.)
Service limit: 185mm (7.283S-in.)
2.
Check
the
rear damper for distortion or oil
leah
3.
Check the rear stopper n1bbcr for
cracks
or
damage.
4. Check
lhc rear
fork
cen
ter
collar-to-bushing clearance.
Standard bushing 1.0.:
20.000-20.0S2mm
(0.7874-0.7894-io.)
Service limit: 20.2mm
(0.79S3-in.)
Standard center
collar
0.0.: 19.927-19.960mm
(0.784S-0.78S8-in.)
Service
limit:
19.9mm
(0.783S-in.)
Assembly
I.
Apply
a coating of gr;,ase
to
the
rear fork
center collar
before
instll.llation. Install
the rear fork
to
the frame.
2
Reaching from
the
right
side,install the rear fork
pivot;
secure
with the self-locking nul
Torque specifications:
600-
700 kg-em
(43.4-
S0.6
lbs-ft.)
1 Using "Rear
Shock Absorber
Compressor"
(Tool
No.
07959-
3290000), compress
the rear
shock
absorber
spring
and
pull up
1he
upper
joint.
Install
the spring
seat stopper
to
secure
the spring.
NOTE:
Install the rear
shock
absorber
spring so
that the
end
with
the
large pitch
is
at
the
bottom.

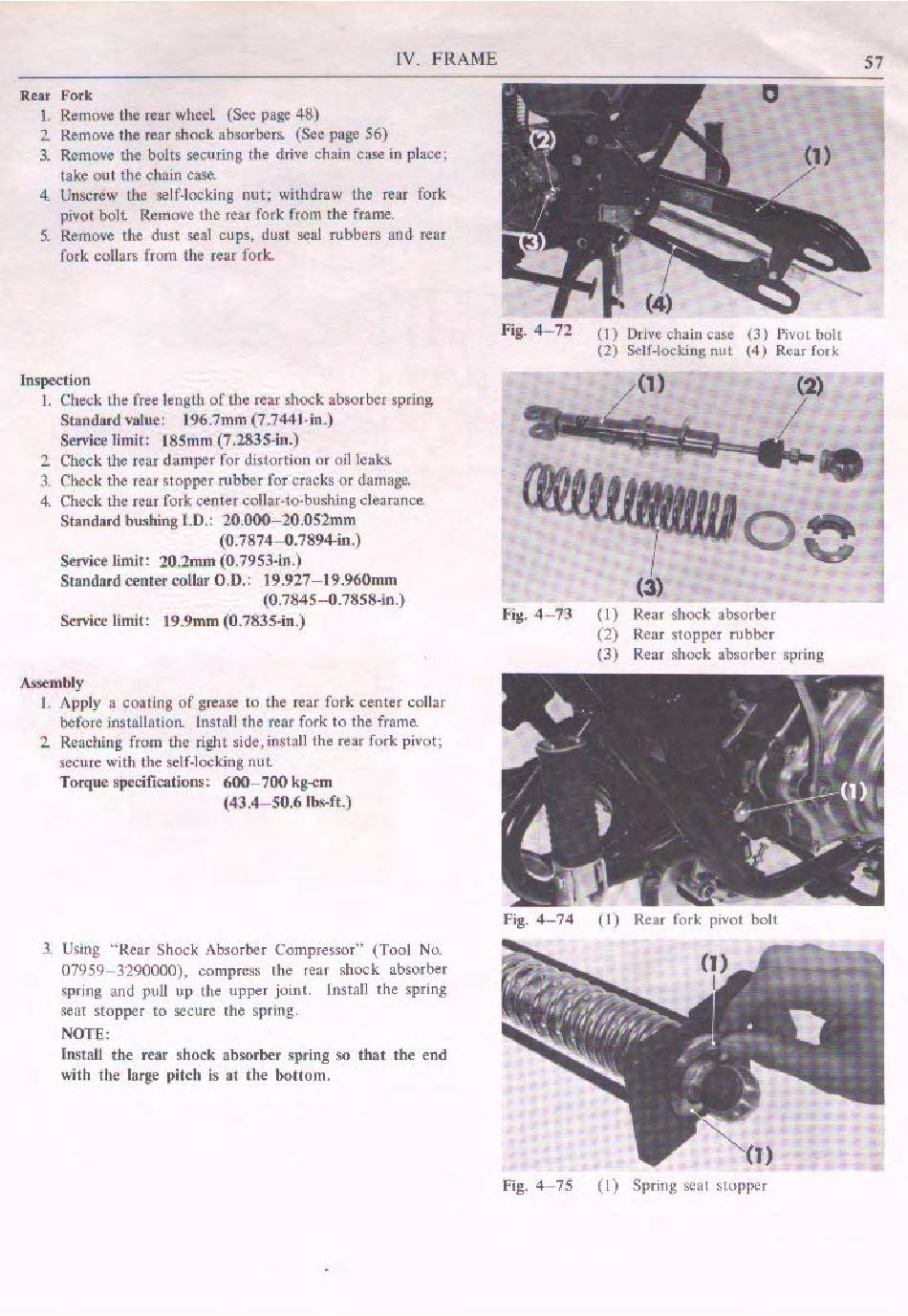

Fig.
4-72
(I)
Drive
chain
case
(3)
f>ivo\
bolt
(2)
S<llHocking nut
(4)
Rear fork
(1)
(3)
oe
Fig.
4-73
(I)
Rear shock
absorber
(2)
Rear
stopper
rubber
(3) Rear shock
absorher
spring
Fig.
4-74
(1) Rear fork
pivot
bolt
Fig.
4-
75
(I) Spring seat stopper
S7
