94

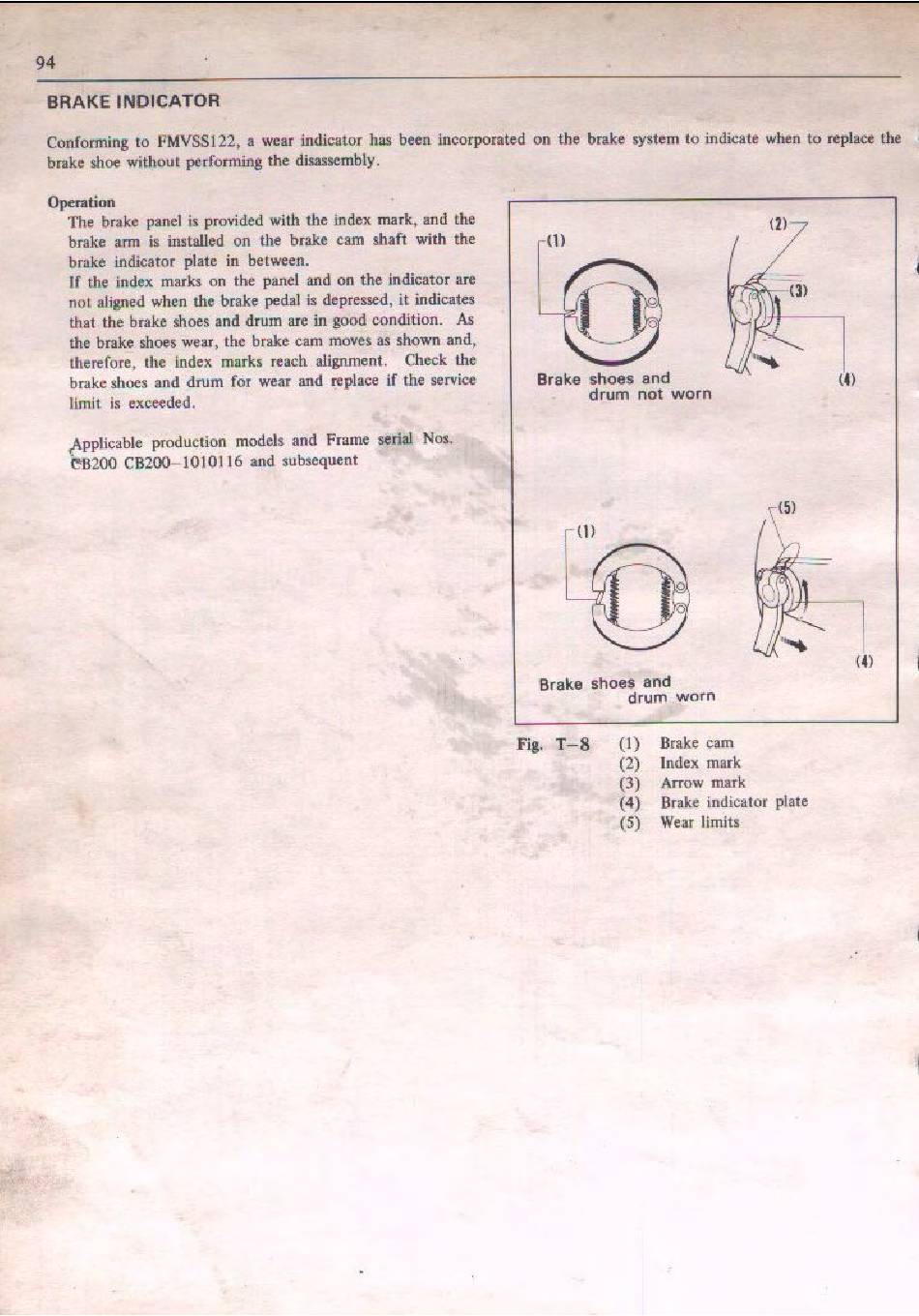

BRAKE INDICATOR
Conforming to FMVSSJ 22,
a
wear indicator has been incorporated on the brake system to indicate when to replace the
brake shoe without performing the disassembly.
Operation
The brake panel is provided with the index mark, and lhe
brake arm is i11stalled on the brake cam shaft with the
brake indicator plate in between.
If the index marks on the panel and on the
indicator
are
noL alil!l'ed when the brake pedal is depressed, it indicates
that the brake shoes and drum are in good condition.
As
the brake shoes wear, the brake cam moves as shown and,
therefore, the index marks reach
alignment.
Check the
brnke shoes and drum for wear and replace if the service
IJmit is exceeded.
,Applicable production models and Frame serial Nos.
eB200
CB200-
10JOI
16
and subsequent
(1)
Brake shoes
and
drum not worn
(I)
Brake shoes and
drum worn
Fig.
T-8
(I)
Brake cam
(2)
Index mark
(3)
Arrow mark
m
(4)
Brake indicator plate
(
S)
Wear limits
(4)
