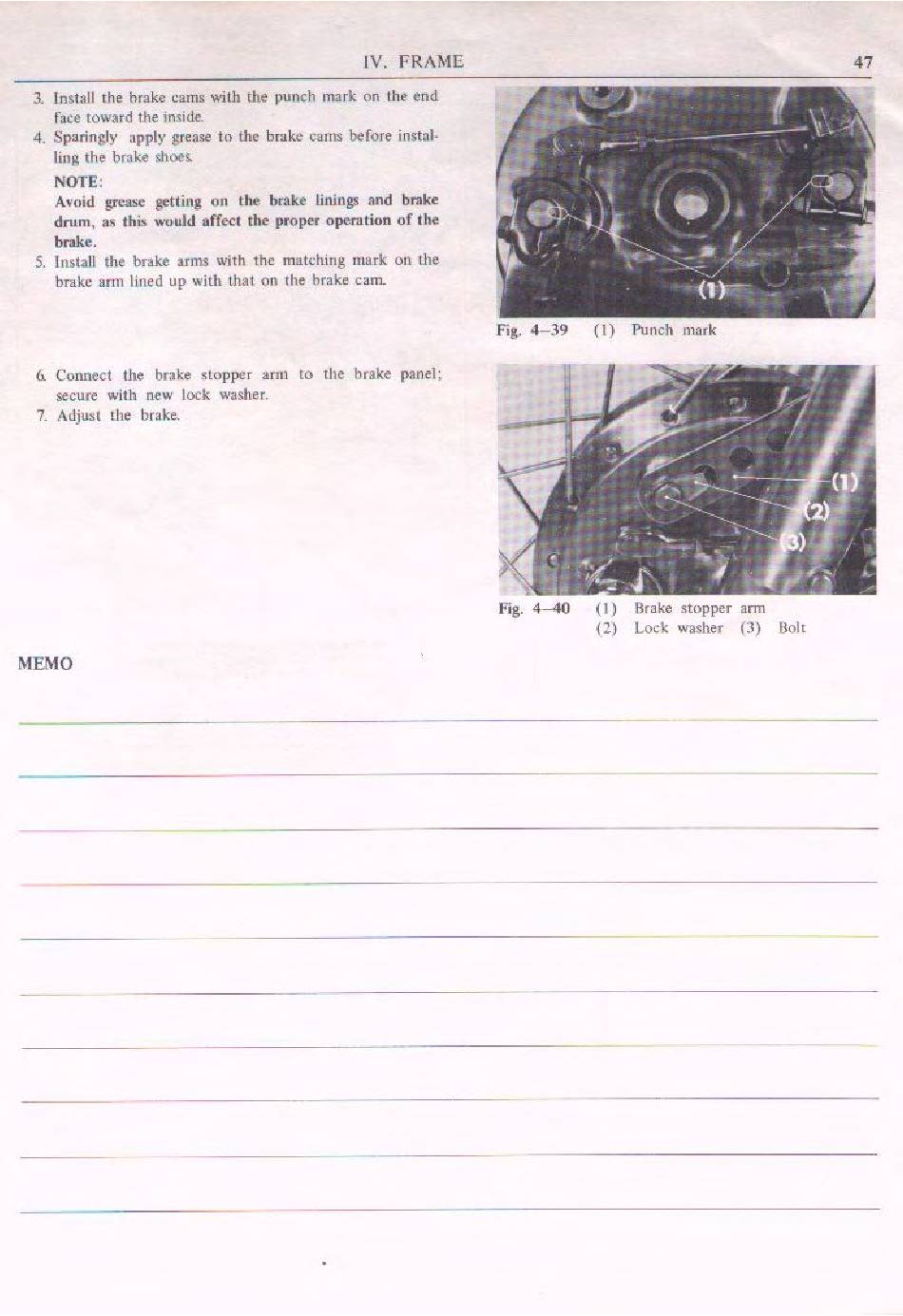

IV.
FRAME
3.
install
tl1e brake cams with tile
punch mark
on
the
end
face
toward
the
inside.
4.
Sparingly apply grease
to
the
brake
cams before instal-
ling the brake shoe~
NOTE:
AvQid grease getting on the brake linings and brake
drum, as this would affect the proper opemlion of the
bmke.
S. Install the brake arms
with the matching
mark oo
the
brake ann lined up with
that
on the hrake cam.
6. Connect the brake stopper aml to the brake panel;
secure with new Jock
washer.
7. Adjust
the
brake.
MEMO
47
Fig. 4-39
(I)
Punch mark
fig.
4-40
(I)
Brake stopper ann
(2) Lock washer (3)
[lolr
