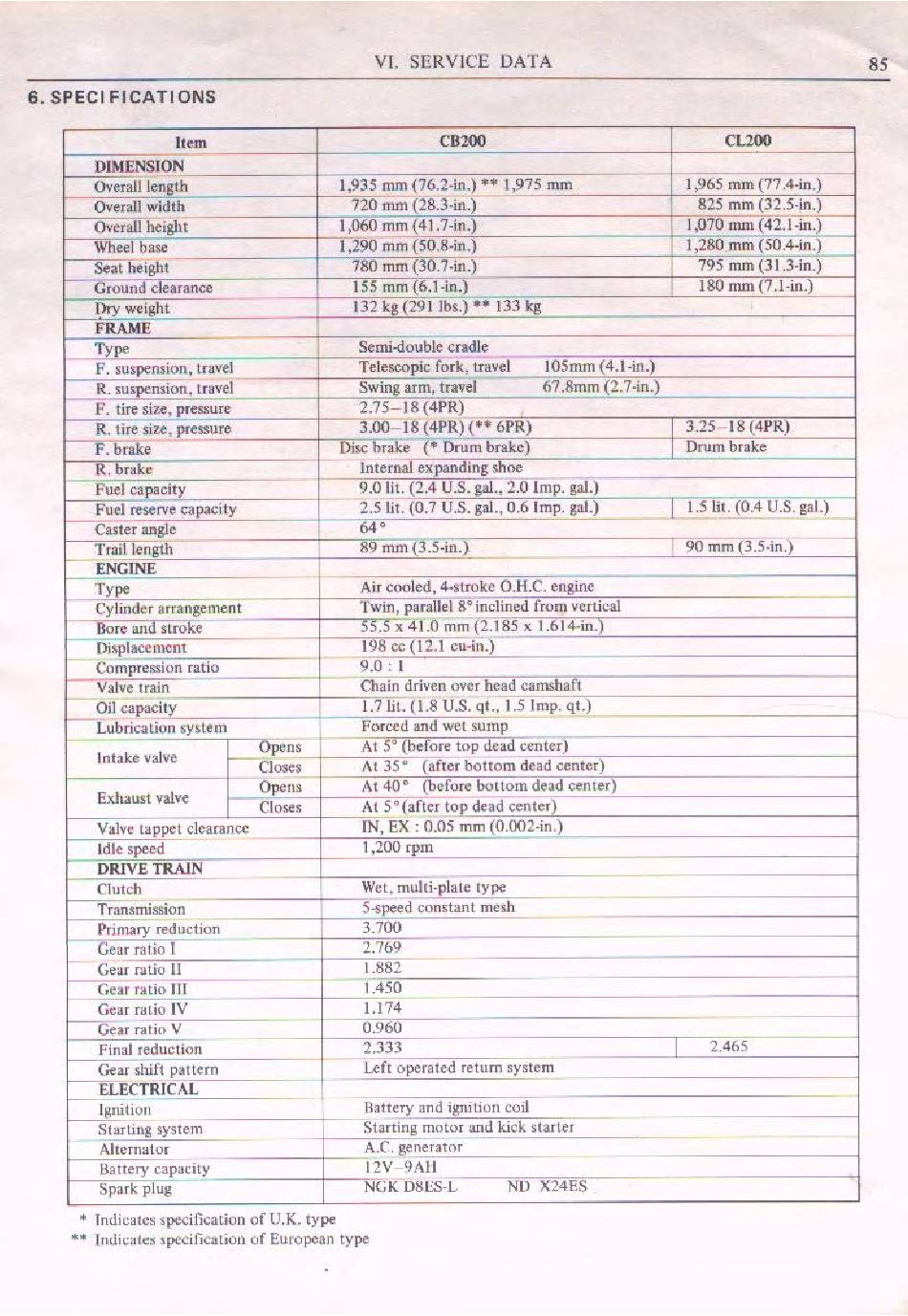

VI. SERVICE DATA
85
6.
SPECIFICATIONS
Uem
CB200
CL200
DIMENSION
Overall length.
1,935 mm (76.2-in.) •• 1,975 mm
1,965 mm (77.4-in.)
Overall width
720 mm (i8.3-in.)
825 mm (32.5-in.)
Overall height
1,060 mm (41
.7-in.)
1,070 nun ( 42.1-in.)
Wheel base
1,290 mm (50.8-in.)
1,280
mm (50.4-in.l
Seat height
780 mm (30.7-i.n.)
795 mm (31.3-in.)
-
Ground clearance
155 mm (6.1-in.J
180 mm(7.l-in.)
Dry
weight
132 kg (291 lbs.)•• 133 kg
FRAME
Type
Semi-double cradle
F.
suspension, travel
Telescopic fork, travel
105,run
(4.1
-in.)
R. suspension, travel
Swing arm, travel
67
.8mm (2.7-in.)
F.
tire
size,
pressure
2.75-
18 (4PR)
R. lire
size,
pressure
3.00-
18
(4PR)
(** 6PR)
3.25
-
18
(4PR)
F.
brake
Disc hrake (• Drum brake)
Drum brake
R. brake
Internal
expanding shoe
Fuel capacity
9.0 lit.
(2.4
U.S. gal.,
2.0
Imp. gal.)
Fuel reserve
capacity
2.5
lit. (0.7
U.S. gal., 0.6 Imp. gal.)
I
1.5
litj
0.4
U.S.
gal.)
~
-
64•
Caster
angle
Trail length
.
89 mm
(3.5-in.}
90
mm (3.5-in.)
-
ENGINE
Type
Air cooled, 4-stroke O.H.C. engine
Cylinder arrangement
Twin, patallel 8°inclined from \
1
Crlical
Bore ana
stroke•
'i'i.5 x 41.0
mm (2.185 x 1.614-i.n.l
Di$placemcnt
198
CC
(12.1
CU•in ,)
-
Compression
ratio
9.0
:
I
Valve train
Chain driven
over
head
camshaft
~
--
1.7
Gt.
(1.8
U.S. qt.,
1.5
Imp. qt.)
Oil
capacity
-
Lubrication system
Forced and wet
sump
Intake valve
Opens
At
5° (before
top dead
center
l
-
Closes
At
35• (after
bottom dead
center)
Exhaust
valve
Opens
At40° (before bottom dead center)
Closes
At
5°(after
top dead
center)
Valve
tappet clearance
IN,
EX :
0.05 mm
(0.002-in.)
Idle
speed
1,200
rpm
DRIVE
TRAIN
Clutch
Wet, multi-plate
type
Transmission
S-speed
constant mesh
Primary reduction
3.700
Gear
ratio
I
2.769
-
Gear
ratio 11
1.882
-
Gear ratio Ill
1.450
Gear
raliO IV
1.1 74
1--
Gear
ratio V
0.960
-
Final
reduction
2.333
2.465
('.ear shift pattern
Left
operated
return
system
~LECTRJCAL
Ignition
Rattery and
ignition coil
Starting system
Starting motor
and
kick starter
Alternator
A.C.
generator
Battery
capacity
12V-
9AU
Spark
plug
NGK O81!S-L
ND X24ES
• Indicates
specification of U.K. type
**
fndical~s
specification of European type
