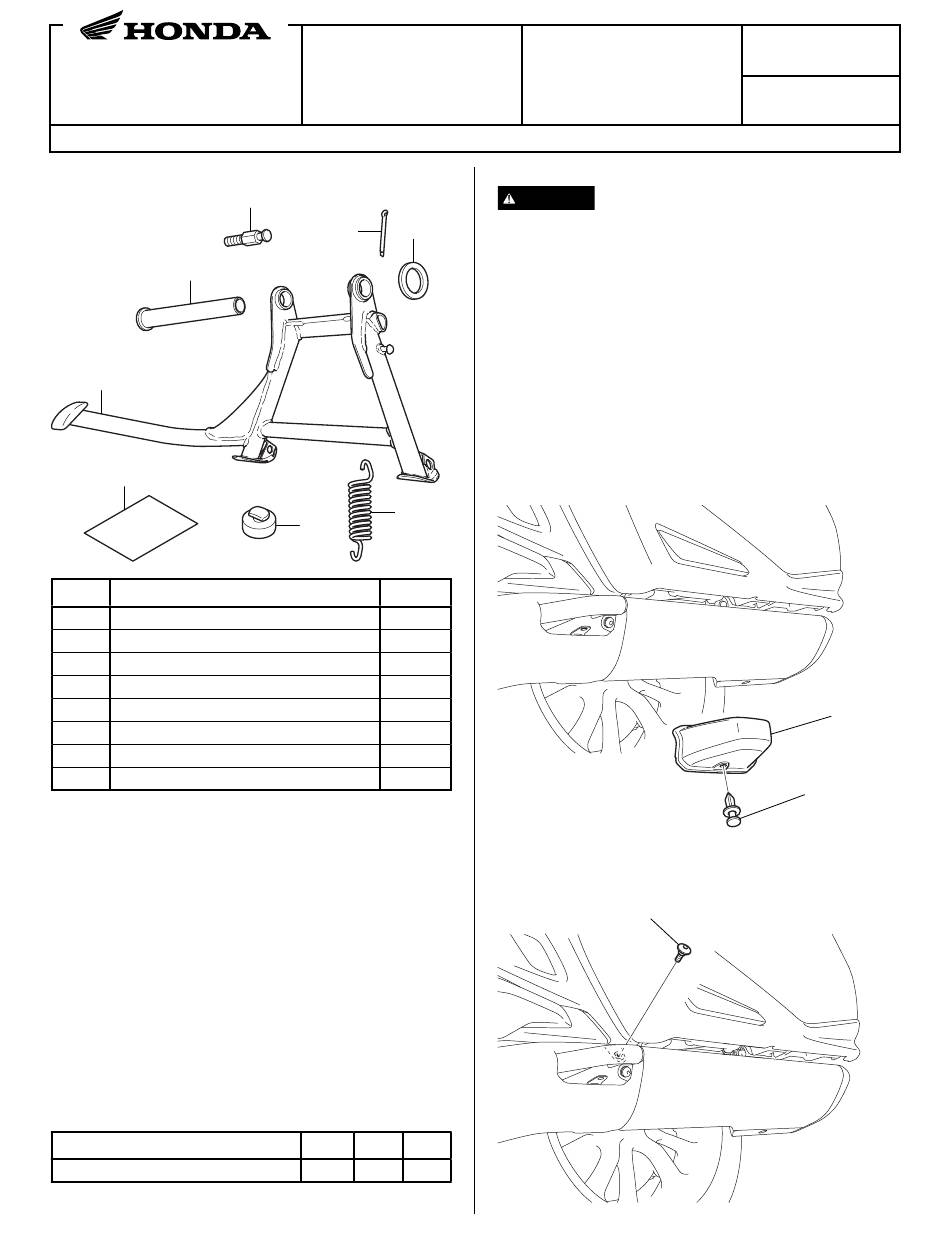

Honda 08M71-MKC-A00 Installation Instructions

Centerstand.
Hide thumbs


Advertisement

INSTALLATION
INSTRUCTIONS
Honda Dealer: Please give a copy of these instructions to your customer.
(4)
(1)
(7)
No.
Description
(1)
Centerstand
(2)
Stand stopr
(3)
Spring
(4)
Pivot pipe
(5)
Washer
(6)
Split pin
(7)
Installation Instructions URL
(8)
Spring hook
TOOLS AND SUPPLIES REQUIRED
Box-end wrench (10 mm)
Long nose pliers
Spring tool
Grease
Dish soap solution
(Water : Dish soap / 100 : 1)
Shop towel
Torque wrench
TORQUE CHART
Tighten all screws, bolts, and nuts to their specified
torque values. Refer to the Service Manual for the torque
values of the removed parts.
Item
Spring hook
© 2018 American Honda Motor Co., Inc. - All Rights Reserved.
Accessory
CENTERSTAND
P/N 08M71-MKC-A00
(8)
(5)
(6)
(3)
(2)
Qty
1
1
1
1
1
1
1
1
N·m
kgf·m
Ibf·ft
22
2.2
16
Application
GL1800/D/DA
GL1800B/BD
INSTALLATION
CAUTION
• To prevent burns, allow the engine, exhaust system,
radiator, etc., to cool before installing the accessory.
NOTE:
• Be extremely careful when installing the spring as
the combined tension of the spring is very strong.
• Keep the motorcycle on its side stand when installing
the centerstand.
• The spring installation should be performed by two
people. While one person holds the motorcycle,
another person installs the spring.
1.
Remove the left saddlebag guard cover as shown.
<Left side>
2. Remove the screw as shown.
SCREW
1 of 3
Publication No.
MII 16426
Issue Date
January 2018
LEFT SADDLEBAG
GUARD COVER
CLIP
87966-MKC-A000.indd
