40

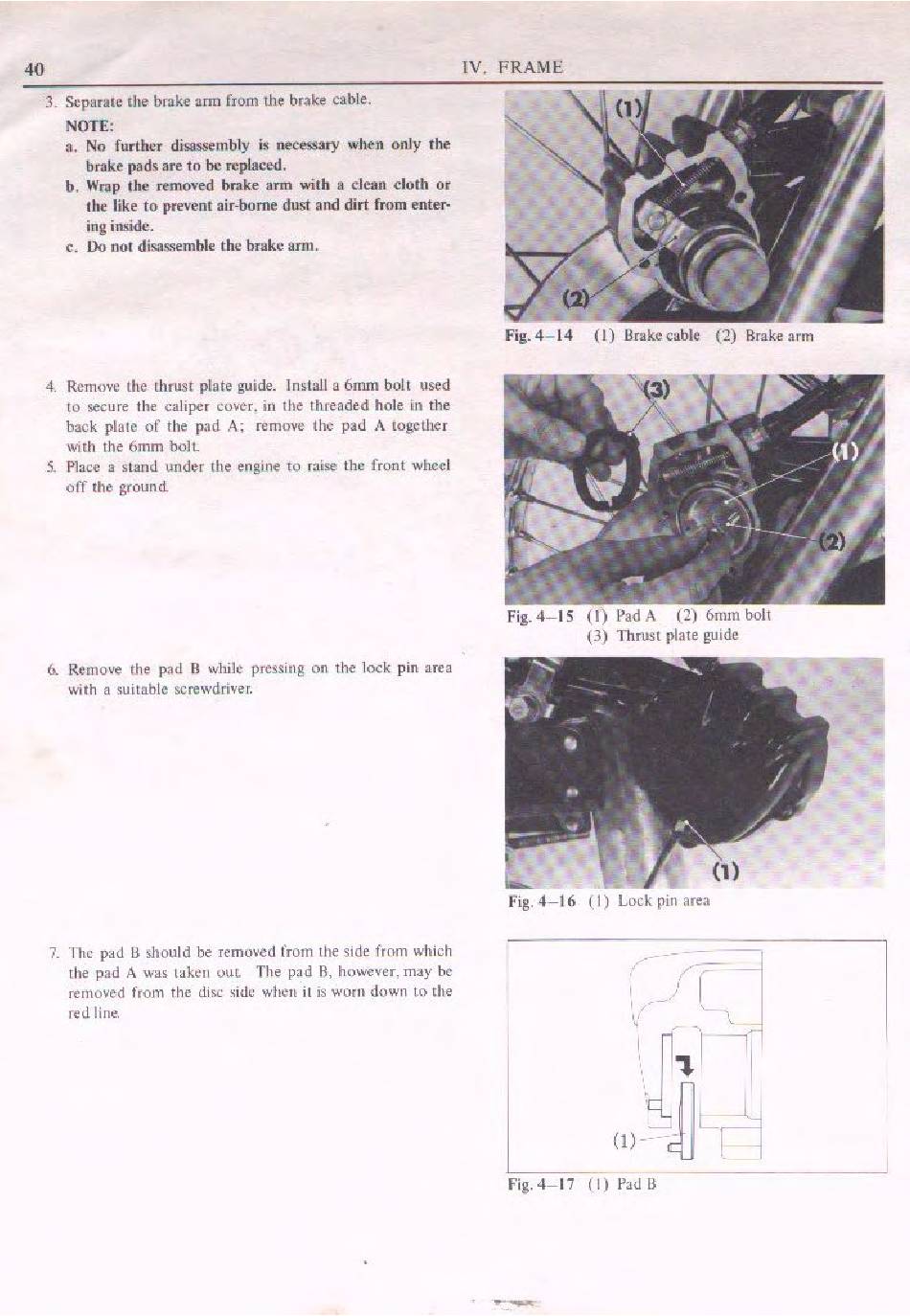

3. Scpara1e 1he brake ann from 1he brake cable.
NOTE:
a. No further disassembly is necessary when only the
brake pads are to
he
replaced.
b. Wrap the removed brake arm with a clca11 cloth or
the like lo prevent air-borne dust and dirt from enter•
inginside.
c.
Do
noc
disassemble the brake
arm.
4. Remove the thrust plate guide.
Install
a 6mm boll used
to secure the caliper cover. in 1he threaded hole in the
back plate of the pad A; remove the pad A 1oge1her
with the 6mm boll
5.
Place
a sland u11der 1he engine to raise the front wheel
off Che ground
6. Remove d1e pad 8 while pressing on the lock pin area
with a suitable screwdriver.
7. The pa<l
II should
be
removed from the side
from which
the pad A
\Vas
la ken out. The pad R, howc\fer, may be
removed froJll the disc si<lc when it is worn down to the
red line.
IV. FRAME
Fig. 4- 14 (I) llrake cable (2) Brake arm
Fig. 4-15 (I) Pad A (2) 6mm boll
(3)
Thrusc plate guide
Fig. 4-l 6 (I) Lock pin area
. , . . . -----. . =-- -
.
/ ~
; r
I
I ,-- '
( l ) i L~
Fig.4- 17 (I) Pad II
