62
V. ELECTRICAL
2.
IGNITION SYSTEM

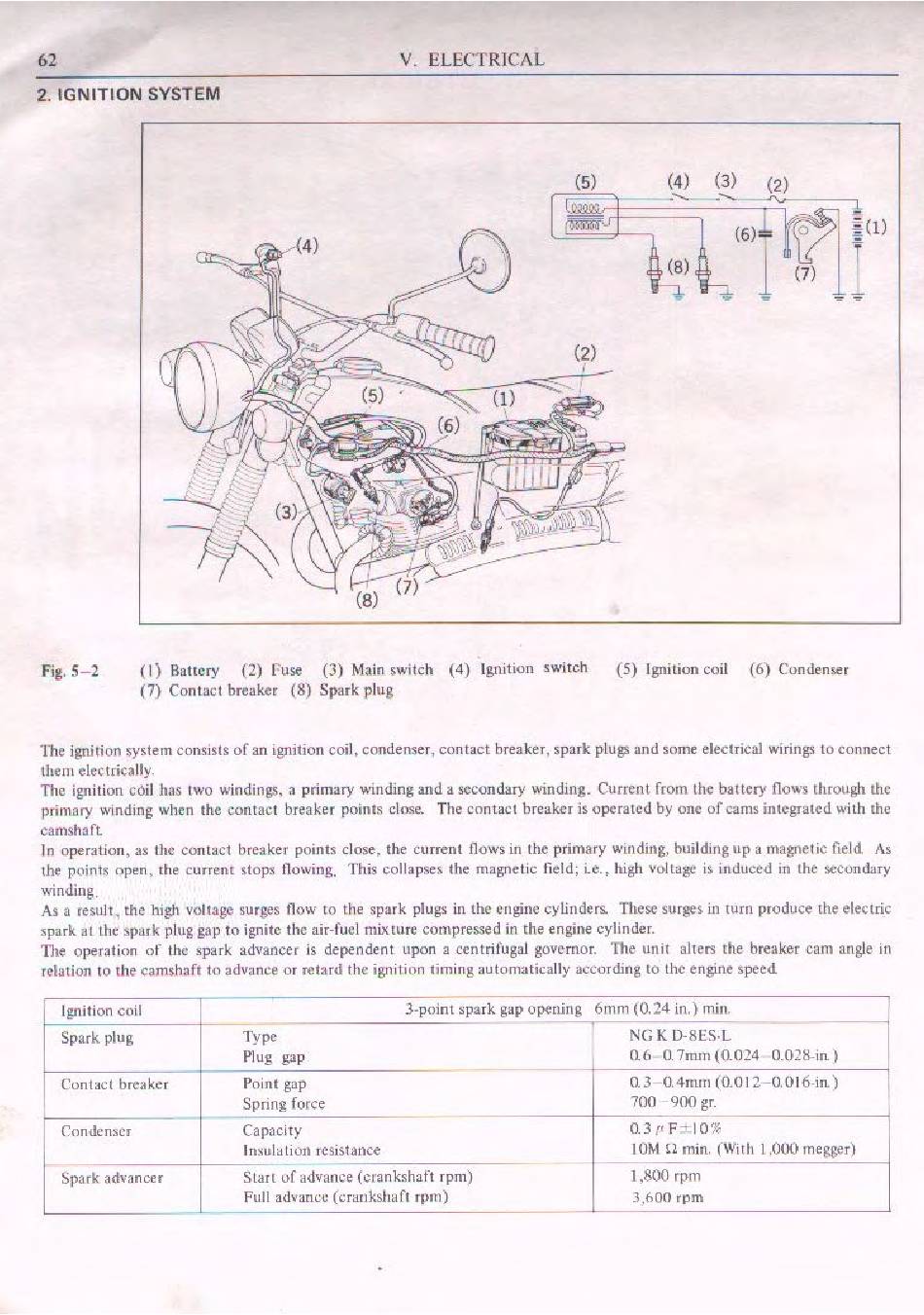

Fig.
S-
2
(2)
I
(8)
( 1)
Battery
(2) Fuse
(3) Main
switch (4)
Ignition switch
(7) Contact breaker (8) Spark
plug
(4)
_....__
(8)
7-
(3)
(2)
(5)
Ignition
coil
(6)
Condenser
The ignition system consists of an
ignWon
coil. condenser, contact
breaker,
spark
plu~
and some electrica) wirings to connect
them
electrically.
The ignition coil
has
1wo
windings.
a
primary
winding and a secondary winding. Current from
the
bancry flows through the
primary
winding when the con1ac1
breaker points close.
The
contact
b reaker
is
operated by one of cams integrated wilh the
camshaft
In operation> as
the
contact breaker points
close.
the current
flows in
the primac}' windjng, building up a rnagnelic field. As
the
points open
,
the
current stops
11owing.
This collapses the
magnetic field;
i.e., high voltage is induced in the secondary
winding,
As
a
result. the
high
voltage surges Oow to
the
spark
plugs in
the engine cylinders. These surges in
curn
produce
the
electric
spark
at
the
spark plug gap to
ignite the
air-fuel
mixture compressed in
the
engine
cylinder.
TI1e operation of
the
spark
advancer
is
dependent
upon
a centrifugal
governor.
The unit alters the breaker
cam
angle in
relation
to the camshaft to advance or re1ard the ignition timing automatically according to the engine speed
Ignition coil
Spark plug
Contact breaker
Condcnl)Cf
Spark advancer
oint spark gap opening 6mm (0. 24 in.) ,nin.
3-p
Type
Plug
gap
Point gap
Spring force
Capacity
Insulation
resistance
Start uf advance
(crankshat
·1
rpm)
Ill)
Full advance (crankshaft rp
NGK D-8ES·L
0.6 0. 7mm {0.024 0.028-in)
0.3
-
0.4,nm (0.0 I
2-
0.016-iIL)
700 900 gr.
0.3
I'
F -:i:I
0%
-
!OM
12
min. (With 1.000 megger)
1,800 rpm
3,600 rpm
