Honda 08L56-MGE-100 Installation Instructions

Tank bag
Hide thumbs

Advertisement

Quick Links

INSTALLATION
INSTRUCTIONS
Honda Dealer: Please give a copy of these instructions to your customer.

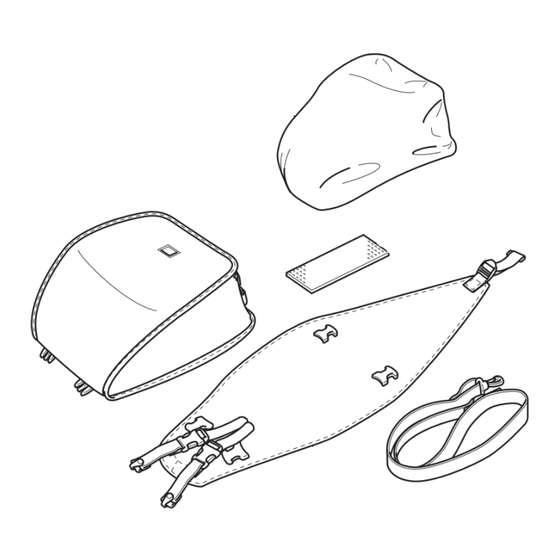

PARTS LIST

(1)
No.
Description
(1)
Tank bag
(2)
Tank bag base
(3)
Carry strap
(4)
Hook and loop tape
(5)
Rain cover
SUPPLIES REQUIRED
Ruler
Isopropyl alcohol
Shop towel
© 2010 American Honda Motor Co., Inc - All Rights Reserved.
Accessory
TANK BAG
P/N 08L56-MGE-100
(5)
(4)
(2)
(3)
Qty
1
1
1
1
1
08L56-MGE-1000-91
Application
VFR1200F/FD
USE AND CARE INFORMATION
• The weight of the cargo must not exceed the following
maximum weight capacity:
Maximum Weight Capacity
Tank bag
• Before installation, remove all dust, sand, etc., from
fuel tank and tank bag, as otherwise the fuel tank may
be scratched.
• Confirm the tank bag is securely installed before riding.
• Do not place valuables or easily breakable items in this
accessory. Do not leave the motorcycle with objects
remaining in this accessory.
• Tighten the fasteners securely.
• This product is not completely waterproof. Water may
enter the bag when the motorcycle is being washed or
during heavy rain.
• Check the accessory mounts frequently and retighten
if necessary.
INSTALLATION
1. Use the ignition key to unlock the seat. Remove the
seat as shown.
SEAT
Publications No.
MII 13236
Issue Date
April 2010
6.6 lbs (3.0 kg)
IGNITION KEY
1 of 5
