50

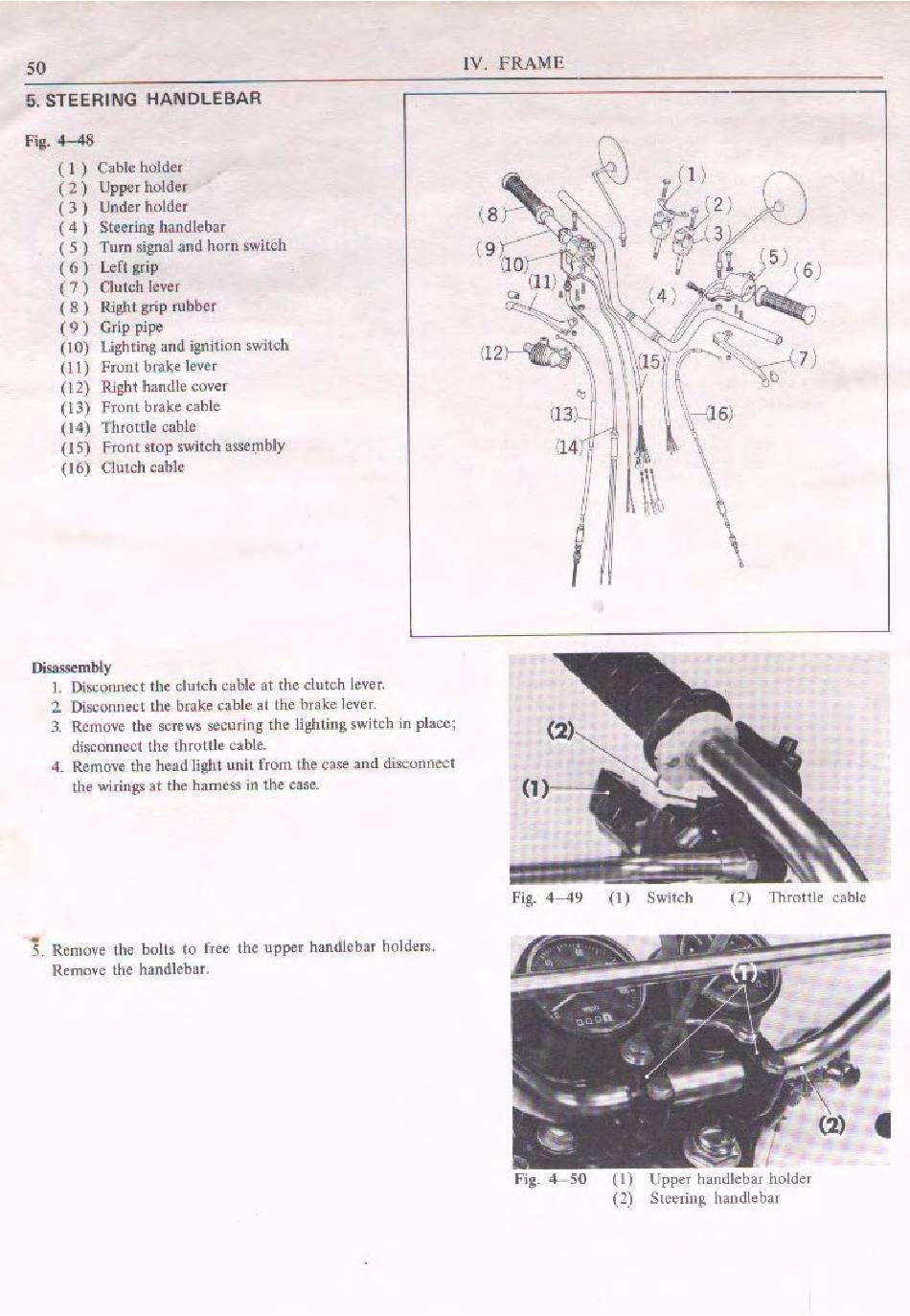

5. STEERING HANDLEBAR
Fig. 4-48
( 1 ) Cable holder
( 2)
Upper holder
( 3 ) Under holder
( 4 ) Steering handlebar
( 5 )
Turn signal and horn switcl1
( 6)
Left gri p
( 7 ) Clutch lever
( 8} Right grip rubber
( 9 ) Grip pipe
(10) Lighting and ignition switch
(11} Front brake lever
(I 2)
Right handle cover
(13)
Front brake cable
(14) Throttle cable
(IS)
Front stop switch assembly
(16) Clutch cable
Disassembly
I. Disconnect the clutch cable at the clutch lever.
2.
Disconnect Lhe brake cable at lite brake lever.
3. Remove the screw, ,ecuring the lighting switch in place;
disconnect the throttle cable.
4. Remove the head light unit from the case and disconnect
the wirlngs at the harness in the case.
5.
Remove t.hc bolls to free the upper handlebar holders.
Remove the handlebar.
IV. FRAME
Fig. 4-49 (I) Switch (2) Throttle cable
•
"
Fig. 4 - 50 (I) Upper handlebar holder
(2) Steering handlebar
