INSTALLATION
INSTRUCTIONS

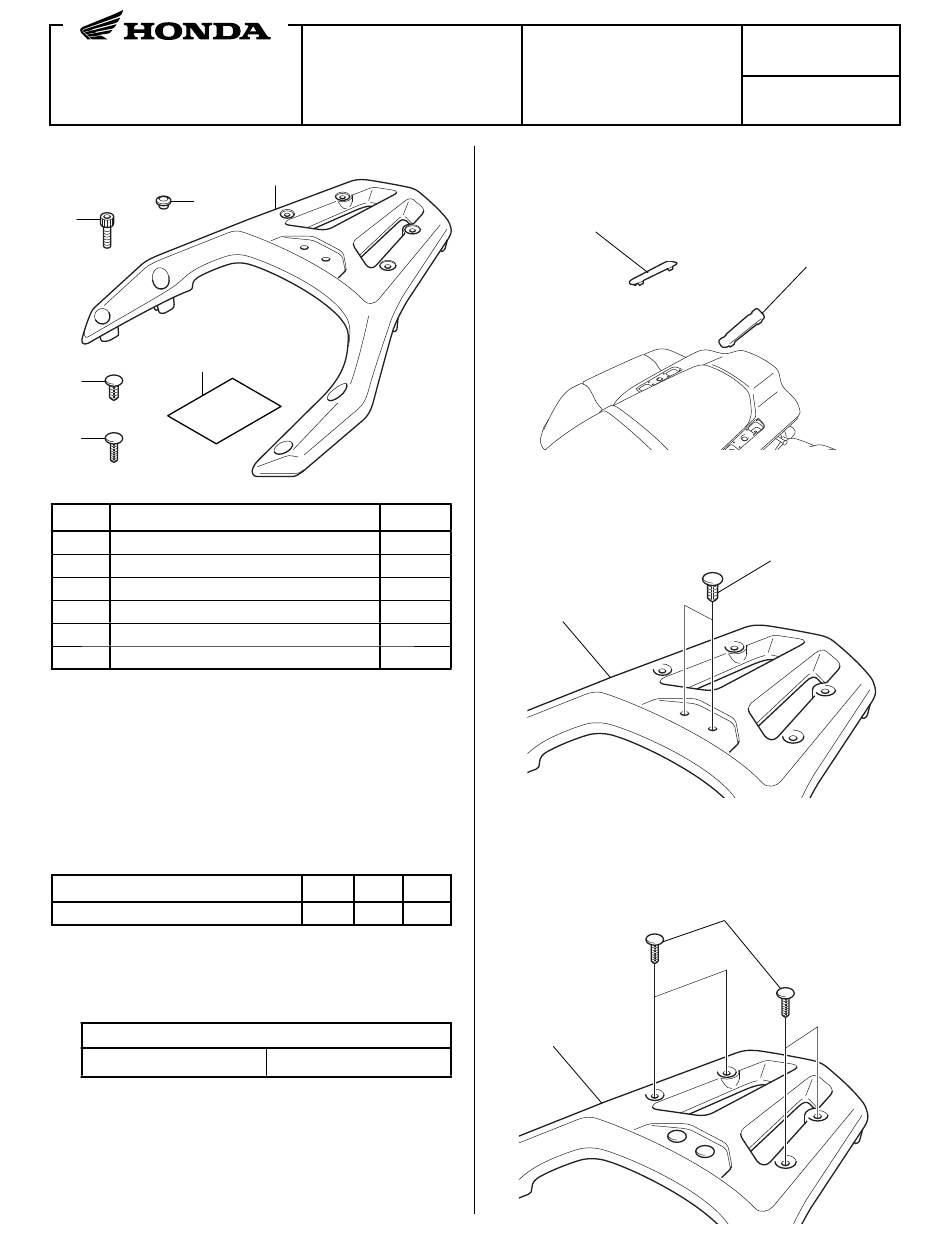

PARTS LIST
(5)
(4)
(1)
(3)
(6)
No.
Description
(1)
Installation Instruction URL
(2)
Rear carrier
(3)
Clip (wide)
(4)
8 mm socket bolt
(5)
Cap
(6)
Clip (narrow)
TOOLS REQUIRED
Hex wrench (8 mm)
Torque wrench
TORQUE CHART
Tighten all screws, bolts, and nuts to their specified
torque values. Refer to the Service Manual for the torque
values of the removed parts.
Item
8 mm socket bolt
MAXIMUM LOADING CAPACITY
• The weight of the cargo must not exceed the
following maximum loading capacity:
Maximum Loading Capacity
Rear carrier
© 2014 Honda Motor Co., Ltd. - All Rights Reserved
Accessory
REAR CARRIER
P/N 08L70-MJN-A00
(2)
Qty
1
1
2
4
4
4
N·m
kgf·m
Ibf·ft
34
3.5
25
4.5 kg (10 lb)
Application
CTX1300/D
INSTALLATION
1.
Remove the left and right center covers as shown.
RIGHT CENTER COVER (Save)
2. Install the clips as shown.
• This step is not required when installing the
backrest with pad.
REAR CARRIER
3. Install the clips as shown.
• This step is not required when installing the
carrier bracket.
REAR CARRIER
1 of 2
Publication No.
MII 14925
Issue Date
March 2014
LEFT CENTER COVER (Save)
CLIP (wide)
CLIP (narrow)
87995-MJN-D000
