Cortex LP-10 User Manual page 10

43
51

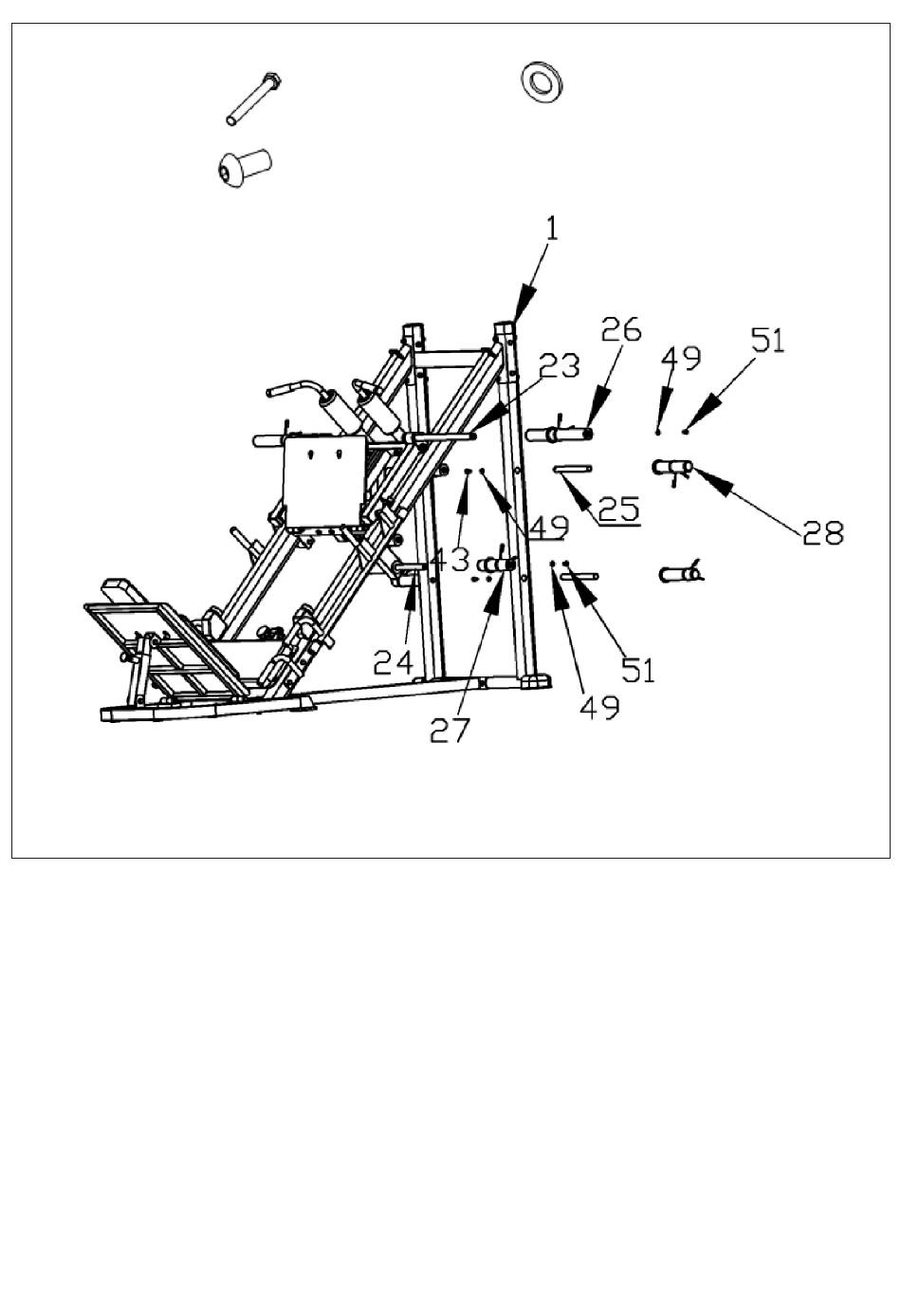

STEP 4
1. Connect the sleeves (26 #) and (23 #) as shown and (27 #) and (24 #), secure with nuts (35 #) and
gasket (49 #).
2. Connect the sleeve (25 #) and the main frame (1 #) as shown and secure with bolts (43 #) and gaskets
(49 #). Then the sleeve (28 #), connect and secure with the sleeve (25 #).
3. The other side is the same. Please tighten with the wrench on all the bolts and nuts.
Your device is now fully assembled.
10 | ASSEMBLY INSTRUCTIONS
M10*20 x 4
M10*20 x 4
Ø10 x 8
49
