- Page 1 OPERATION MANUAL PLEASE READ THIS MANUAL VERY CAREFULLY BEFORE OPERATING UNIVERSAL WEIGHT ELECTRONICS | UWE-EUROPE.COM...
-
Page 2: Table Of Contents
CAUTION SPECIFICATIONS FEATURES KEYBOARD LAYOUT & FUNCTIONS Numeric Keypad and Basic Functions Memory Functions Limit Functions Other Functions and Indicators DISPLAY INDICATORS INTERNAL FUNCTIONS CHECKWEIGHING APPLICATION Setting HI-OK-LO Limits: Managing HI-OK-LO Limit Data: TROUBLESHOOTING CALIBRATION... -
Page 3: Specifications

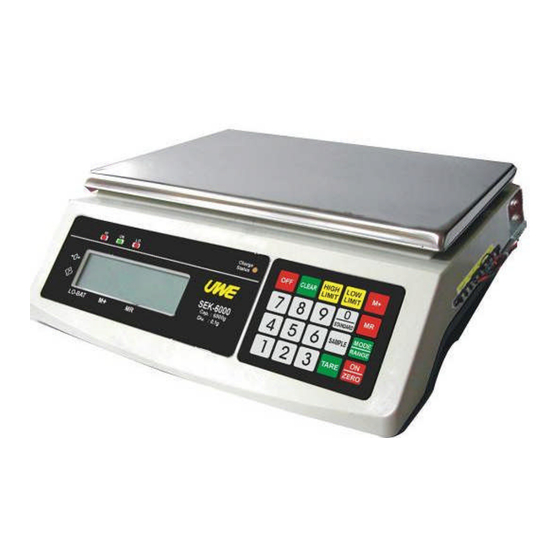

The SEK series electronic piece counting/check weighing scales are available in various models, each with specific capacities and divisions. The specifications for each model are provided below: Model No. Capacity (Max) Division (d) SEK-3000 3000g / 6.6lb 0.05g / 0.01oz SEK-6000 6000g / 13.2lb 0.1g / 0.01oz SEK-12K 12kg / 26.45lb... -
Page 4: Features
Power Requirements for Light Tower Connectivity When using the SEK series electronic piece counting/check weighing scales in conjunction with a light tower for check weighing alarm functionality, please be advised of the following: The built-in 6V 4Ah rechargeable battery in the SEK series scales is not capable of powering the light tower. -
Page 5: Keyboard Layout & Functions
Please consult with your dealer or refer to the specific model's specifications to determine the availability of these optional features. They may be included in certain models or available as separate add-ons. KEYBOARD LAYOUT & FUNCTIONS Numeric Keypad and Basic Functions Number Function NUMERIC... -
Page 6: Memory Functions
Memory Functions Number Key Function 1. Recall accumulated total weight or total pieces. 2. Press and hold, then enter 0-9 to recall HI-OK-LO data from saved memory location. 1. Accumulate weight or pieces displayed into memory. 2. Press and hold, then enter 0-9 following screen prompt to save HI-OK-LO data to a designated memory location. -
Page 7: Display Indicators
Number Key/Indicator Function Turn the scale off. Backlight can be turned on/off by pressing and Backlight Note 1 holding the ON/ZERO key. Auto-off after 20 seconds Control at zero weight, auto-on with weight. Auto Zero Works within 20% of the rated capacity. Remove all Note 2 Function weight from the platter before turning on the scale. -
Page 8: Internal Functions
INTERNAL FUNCTIONS Function Description & Options Set Auto Zero Tracking Range: Select how many divisions of "e" to Auto Zero. Within the setting range, the weight is forced to be zero. Span Value Display: Displays the span value. Software Version Display and Full Display Test: Shows the software version and runs a full display test. -
Page 9: Managing Hi-Ok-Lo Limit Data
Low Limit: Input the desired low limit using the numeric keypad, then press the LOW LIMIT key to save. Note: These settings are retained in the system memory even when the power is off and are separate from the SEK's 10 other memory sets. Managing HI-OK-LO Limit Data: Saving to Memory: After setting the HI-OK-LOW limits, press and hold the M+ key, then enter a number (0-9) following the screen prompt. -
Page 10: Calibration
Weight is not 1. Object stuck on the 1. Remove the object and try accurate. scale. again. 2. Outside interference 2. Move to an environment such as wind or RF free of interference and try interference. again. Note: This troubleshooting guide covers common issues and resolutions. For specific concerns or more complex problems, refer to the detailed manual or contact your authorized service provider.
