3.3

Extension Connectors

3.3.1

Pin Assignment for Extension Connectors

NuTFT Kit Board is equipped with one SPI flash, one LCD panel with touch function, one five direction
joystick and two push buttons for developing and verifying some special feature. Besides, the pin
arrangement of NuTFT Kit Board is compatible with Arduino UNO.
NC
NC
NC
3.3V
NC
GND
GND
NC
N1
N2
N3
N4
N5
N6

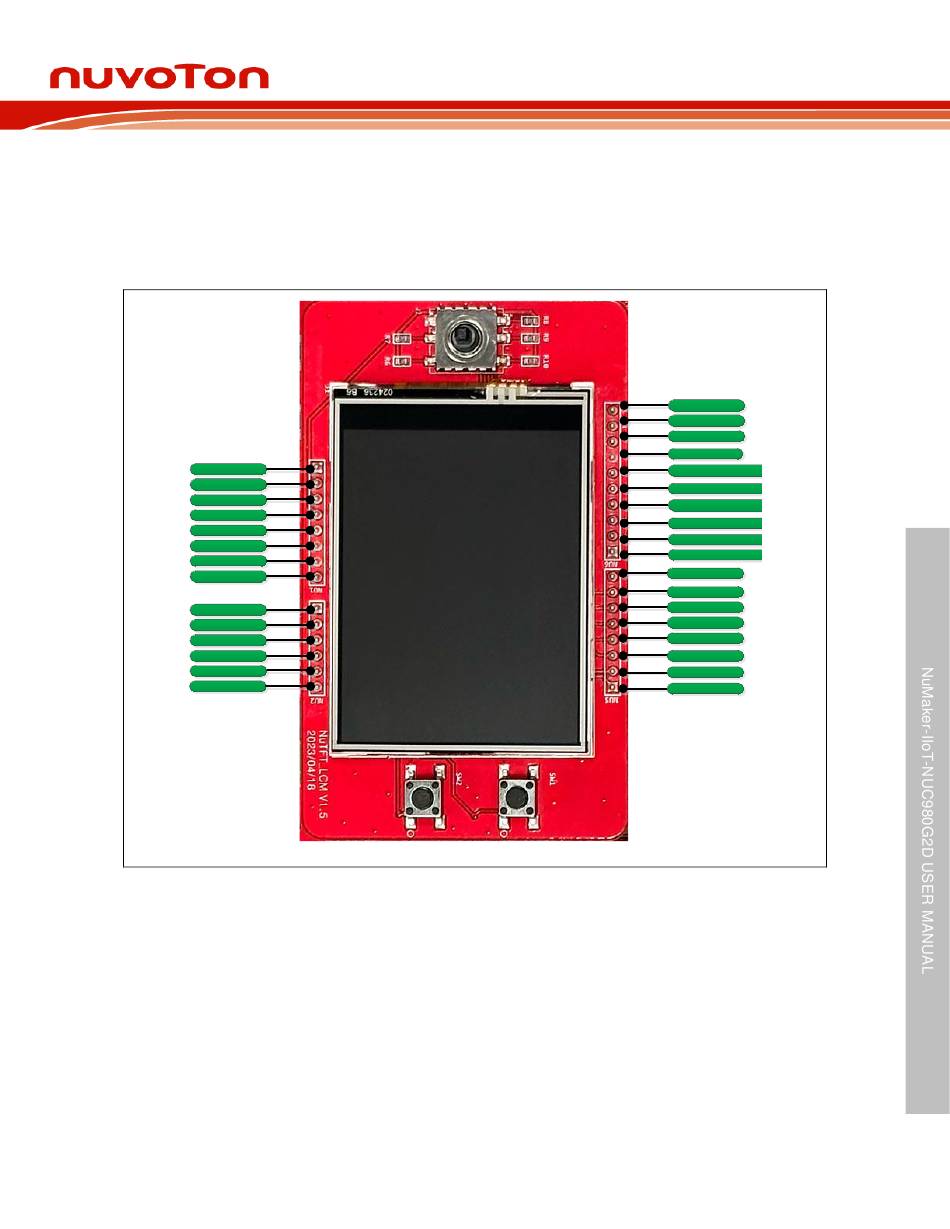

Figure 3-3 NuTFT Kit Board Extension Connectors – Front View
Aug 22, 2023
NuMaker-IIoT-NUC980G2D
Page 11 of 56
N7
N8
NC
VSS
SPIFlash-CLK
SPIFlash-MISO0
SPIFlash-MOSI0
SPIFlash-SS
SPIFlash-MOSI1
SPIFlash-MISO1
LCM_LED
Joystick-R
Joystick-U
Joystick-L
Joystick-D
Joystick-M
LCM_RESET
LCM_DC
