NuMaker-HMI-N9H30
NuMicro
®
Family
Arm
®
ARM926EJ-S Based
NuMaker-HMI-N9H30
User Manual
Evaluation Board for NuMicro
®
N9H30 Series
The information described in this document is the exclusive intellectual property of
Nuvoton Technology Corporation and shall not be reproduced without permission from Nuvoton.
Nuvoton is providing this document only for reference purposes of NuMicro microcontroller and
microprocessor based system design. Nuvoton assumes no responsibility for errors or omissions.
All data and specifications are subject to change without notice.
For additional information or questions, please contact: Nuvoton Technology Corporation.
www.nuvoton.com
Mar. 24, 2022
Page 1 of 39
Rev 1.00
Advertisement
Table of Contents
Related Manuals for Nuvoton NuMaker-HMI-N9H30
Summary of Contents for Nuvoton NuMaker-HMI-N9H30
- Page 1 The information described in this document is the exclusive intellectual property of Nuvoton Technology Corporation and shall not be reproduced without permission from Nuvoton. Nuvoton is providing this document only for reference purposes of NuMicro microcontroller and microprocessor based system design. Nuvoton assumes no responsibility for errors or omissions.
-
Page 2: Table Of Contents
1.1.1 NuMaker-N9H30 Main Board Features ................. 7 1.1.2 NuDesign-TFT-LCD7 Extension Board Features ............7 1.2 Supporting Resources ....................8 2 NUMAKER-HMI-N9H30 HARDWARE CONFIGURATION ......9 2.1 NuMaker-N9H30 Board － Front View ............... 9 2.2 NuMaker-N9H30 Board － Rear View..............14 2.3 NuDesign-TFT-LCD7 －... - Page 3 NuMaker-HMI-N9H30 List of Figures Figure 1-1 Front View of NuMaker-HMI-N9H30 Evaluation Board ..........5 Figure 1-2 Rear View of NuMaker-HMI-N9H30 Evaluation Board ........... 6 Figure 2-1 Front View of NuMaker-N9H30 Board ................9 Figure 2-2 Rear View of NuMaker-N9H30 Board ................14 Figure 2-3 Front View of NuDesign-TFT-LCD7 Board ..............
- Page 4 NuMaker-HMI-N9H30 List of Tables Table 2-1 LCD Panel Combination Connector (CON8) Pin Function ..........11 Table 2-2 Three Sets of Indication LED Functions ................ 12 Table 2-3 Six Sets of User SW, Key Matrix Functions..............12 Table 2-4 CMOS Sensor Connector (CON10) Function ..............13 Table 2-5 JTAG ICE Interface (J2) Function ..................
-
Page 5: Overview

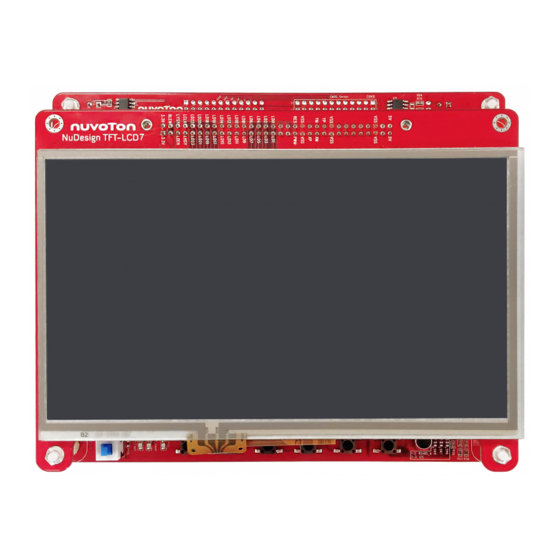

NuMaker-HMI-N9H30 OVERVIEW The NuMaker-HMI-N9H30 is an evaluation board for GUI application development. The NuMaker-HMI- N9H30 consists of two parts: a NuMaker-N9H30 main board and a NuDesign-TFT-LCD7 extension board. The NuMaker-HMI-N9H30 is designed for project evaluation, prototype development and validation with HMI (Human Machine Interface) function. -
Page 6: Figure 1-2 Rear View Of Numaker-Hmi-N9H30 Evaluation Board
NuMaker-HMI-N9H30 Figure 1-2 Rear View of NuMaker-HMI-N9H30 Evaluation Board Mar. 24, 2022 Page 6 of 39 Rev 1.00... -
Page 7: Features
NuMaker-HMI-N9H30 Features 1.1.1 NuMaker-N9H30 Main Board Features N9H30F61IEC chip: LQFP216 pin MCP package with DDR (64 MB) SPI Flash using W25Q256JVEQ (32 MB) booting with quad mode or storage memory NAND Flash using W29N01HVSINA (128 MB) booting or storage memory ... -
Page 8: Supporting Resources
NuMaker-HMI-N9H30 Supporting Resources For sample codes and introduction about NuMaker-N9H30, please refer to N9H30 BSP: https://www.nuvoton.com/products/gui-solution/gui-platform/numaker-hmi- n9h30/?group=Software&tab=2 Visit NuForum for further discussion about the NuMaker-HMI-N9H30: http://forum.nuvoton.com/viewforum.php?f=31 Mar. 24, 2022 Page 8 of 39 Rev 1.00... -
Page 9: Numaker-Hmi-N9H30 Hardware Configuration
NuMaker-HMI-N9H30 NUMAKER-HMI-N9H30 HARDWARE CONFIGURATION NuMaker-N9H30 Board － Front View Combination Connector CAN Transceiver RS-485 Transceiver (CON8) (U13) (U11) RS-232 Transceiver (U6, U12) NAND Flash (U9) 6 set User SWs Microphone 3set Indication LEDs Audio Codec Power Supply Switch (K1~6) (M1) - Page 10 NuMaker-HMI-N9H30 CON8.7 GPG7 LCD_HSYNC CON8.8 GPG6 LCD_CLK CON8.9 GPD15 LCD_D23(R7) CON8.10 GPD14 LCD_D22(R6) CON8.11 GPD13 LCD_D21(R5) CON8.12 GPD12 LCD_D20(R4) CON8.13 GPD11 LCD_D19(R3) CON8.14 GPD10 LCD_D18(R2) CON8.15 GPD9 LCD_D17(R1) CON8.16 GPD8 LCD_D16(R0) CON8.17 GPA15 LCD_D15(G7) CON8.18 GPA14 LCD_D14(G6) CON8.19 GPA13 LCD_D13(G5) CON8.20...
-
Page 11: Table 2-1 Lcd Panel Combination Connector (Con8) Pin Function
NuMaker-HMI-N9H30 CON8.39 CON8.40 CON8.41 ADC7 CON8.42 ADC3 Vsen CON8.43 ADC6 CON8.44 ADC4 CON8.45 CON8.46 ADC5 CON8.47 CON8.48 CON8.49 GPG0 I2C0_C CON8.50 GPG1 I2C0_D CON8.51 GPG5 TOUCH_INT CON8.52 CON8.53 CON8.54 CON8.55 CON8.56 CON8.57 CON8.58 CON8.59 CON8.60 CON8.61 CON8.62 CON8.63 Power 5V CON8.64... -
Page 12: Table 2-2 Three Sets Of Indication Led Functions
NAND Flash (128 MB) with Winbond W29N01HVS1NA (U9) Microphone (M1): Through Nuvoton NAU88C22 chip sound input Audio CODEC chip (U10): Nuvoton NAU88C22 chip connected to N9H30 using I interface SW6/SW7/SW8: 1-2 short for RS-485_6 function and connected to 2P terminal (CON5 –... -
Page 13: Table 2-4 Cmos Sensor Connector (Con10) Function
NuMaker-HMI-N9H30 CON10.3 Power 3.3V CON10.4 Power 3.3V CON10.5 CON10.6 CON10.7 GPI4 S_PCLK CON10.8 GPI3 S_CLK CON10.9 GPI8 S_D0 CON10.10 GPI9 S_D1 CON10.11 GPI10 S_D2 CON10.12 GPI11 S_D3 CON10.13 GPI12 S_D4 CON10.14 GPI13 S_D5 CON10.15 GPI14 S_D6 CON10.16 GPI15 S_D7 CON10.17... -
Page 14: Numaker-N9H30 Board － Rear View
NuMaker-HMI-N9H30 NuMaker-N9H30 Board － Rear View CMOS Sensor CAN_0 Terminal Power On Setting RTC Battery RS-485_6 Terminal Connector (CON9) (CON11) (SW4, S2~S9) (BT1) (CON5) USB0 Device/Host (CON14) USB1 HOST RS-232 DB9 (CON15) (CON2,CON6) RJ45 (CON12, CON13) Expand Port (CON7) RMII PHY... - Page 15 NuMaker-HMI-N9H30 can be used System Reset (SW5): System will be reset if the SW5 button is pressed Buzzer (BZ1): Control by GPB3 pin of N9H30 Speaker output (J4): Through the NAU88C22 chip sound output Earphone output (CON4): Through the NAU88C22 chip sound output ...
-
Page 16: Table 2-6 Expand Port (Con7) Function
NuMaker-HMI-N9H30 CON7.26 GPH14 UART8_RTS CON7.27 GPB15 UART10_CTS CON7.28 GPH15 UART8_CTS CON7.29 Power 5V CON7.30 Power 5V Table 2-6 Expand Port (CON7) Function UART0 selection (CON2, J3): RS-232_0 function and connected to DB9 female (CON2) for debug message output. –... -
Page 17: Table 2-9 Rs-485_6 (Sw6~8) Function
NuMaker-HMI-N9H30 Table 2-9 RS-485_6 (SW6~8) Function Power on setting (SW4, S2~9). State Function SW4.2/SW4.1 ON/ON Boot from USB SW4.2/SW4.1 ON/OFF Boot from eMMC SW4.2/SW4.1 OFF/ON Boot from NAND Flash SW4.2/SW4.1 OFF/OFF Boot from SPI Flash Table 2-10 Power on Setting (SW4) Function... -
Page 18: Table 2-15 Power On Setting (S7/S6) Function
NuMaker-HMI-N9H30 S7/S6 Open/Open Ignore Table 2-15 Power on Setting (S7/S6) Function State Function S9/S8 Short/Short NAND Flash ECC type BCH T12 S9/S8 Short/Open NAND Flash ECC type BCH T15 S9/S8 Open/Short NAND Flash ECC type BCH T24 S9/S8 Open/Open Ignore Table 2-16 Power on Setting (S9/S8) Function ... -
Page 19: Table 2-17 Cmos Sensor Connector (Con9) Function
RJ45_1 connector with LED indicator (CON13), RMII PHY with IP101GR (U16) Micro-SD/TF card slot (CON3) SOC CPU: Nuvoton N9H30F61IEC (U5) Battery power for RTC 3.3V powered (BT1, J1), can detect voltage by ADC0 RTC power has 3 sources: Share with 3.3V I/O power... -
Page 20: Nudesign-Tft-Lcd7 － Front View
NuMaker-HMI-N9H30 NuDesign-TFT-LCD7 － Front View Figure 2-3 Front View of NuDesign-TFT-LCD7 Board Figure 2-3 shows the main components and connectors from the Front side of NuDesign-TFT-LCD7 board. 7” resolution 800x480 4-W resistive touch panel for 24-bits RGB888 interface Mar. 24, 2022 Page 20 of 39 Rev 1.00... -
Page 21: Nudesign-Tft-Lcd7 － Rear View
NuMaker-HMI-N9H30 NuDesign-TFT-LCD7 － Rear View Figure 2-4 Rear View of NuDesign-TFT-LCD7 Board Figure 2-4 shows the main components and connectors from the rear side of NuDesign-TFT-LCD7 board. NuMaker-N9H30 and NuDesign-TFT-LCD7 combination connector (CON1). Mar. 24, 2022 Page 21 of 39... -
Page 22: Numaker-N9H30 And Nudesign-Tft-Lcd7 Pcb Placement
NuMaker-HMI-N9H30 NuMaker-N9H30 and NuDesign-TFT-LCD7 PCB Placement Figure 2-5 Front View of NuMaker-N9H30 PCB Placement Figure 2-6 Rear View of NuMaker-N9H30 PCB Placement Mar. 24, 2022 Page 22 of 39 Rev 1.00... -
Page 23: Figure 2-7 Front View Of Nudesign-Tft-Lcd7 Pcb Placement
NuMaker-HMI-N9H30 Figure 2-7 Front View of NuDesign-TFT-LCD7 PCB Placement Figure 2-8 Rear View of NuDesign-TFT-LCD7 PCB Placement Mar. 24, 2022 Page 23 of 39 Rev 1.00... -
Page 24: Numaker-N9H30 And Nudesign-Tft-Lcd7 Schematics
NuMaker-HMI-N9H30 NUMAKER-N9H30 AND NUDESIGN-TFT-LCD7 SCHEMATICS NuMaker-N9H30 － GPIO List Circuit Figure 3-1 shows the N9H30F61IEC GPIO list circuit. Figure 3-1 GPIO List Circuit Mar. 24, 2022 Page 24 of 39 Rev 1.00... -
Page 25: Numaker-N9H30 － System Block Circuit
NuMaker-HMI-N9H30 NuMaker-N9H30 － System Block Circuit Figure 3-2 shows the System Block Circuit. Figure 3-2 System Block Circuit Mar. 24, 2022 Page 25 of 39 Rev 1.00... -
Page 26: Numaker-N9H30 － Power Circuit
NuMaker-HMI-N9H30 NuMaker-N9H30 － Power Circuit Figure 3-3 shows the Power Circuit. Figure 3-3 Power Circuit Mar. 24, 2022 Page 26 of 39 Rev 1.00... -
Page 27: Numaker-N9H30 － N9H30F61Iec Circuit
NuMaker-HMI-N9H30 NuMaker-N9H30 － N9H30F61IEC Circuit Figure 3-4 shows the N9H30F61IEC Circuit. Figure 3-4 N9H30F61IEC Circuit Mar. 24, 2022 Page 27 of 39 Rev 1.00... -
Page 28: Numaker-N9H30 － Setting, Ice, Rs-232_0, Key Circuit
NuMaker-HMI-N9H30 NuMaker-N9H30 － Setting, ICE, RS-232_0, Key Circuit Figure 3-5 shows the Setting, ICE, RS-232_0, Key Circuit. Figure 3-5 Setting, ICE, RS-232_0, Key Circuit Mar. 24, 2022 Page 28 of 39 Rev 1.00... -
Page 29: Numaker-N9H30 － Memory Circuit
NuMaker-HMI-N9H30 NuMaker-N9H30 － Memory Circuit Figure 3-6 shows the Memory Circuit. Figure 3-6 Memory Circuit Mar. 24, 2022 Page 29 of 39 Rev 1.00... -
Page 30: Numaker-N9H30 － I S, I2C_0, Rs-485_6 Circuit
NuMaker-HMI-N9H30 NuMaker-N9H30 － I S, I2C_0, RS-485_6 Circuit Figure 3-7 shows the I S, I2C_0, RS-486_6 Circuit. Figure 3-7 I S, I2C_0, RS-486_6 Circuit Mar. 24, 2022 Page 30 of 39 Rev 1.00... -
Page 31: Numaker-N9H30 － Rs-232_2 Circuit
NuMaker-HMI-N9H30 NuMaker-N9H30 － RS-232_2 Circuit Figure 3-8 shows the RS-232_2 Circuit. Figure 3-8 RS-232_2 Circuit Mar. 24, 2022 Page 31 of 39 Rev 1.00... -
Page 32: Numaker-N9H30 － Lcd Circuit
NuMaker-HMI-N9H30 NuMaker-N9H30 － LCD Circuit Figure 3-9 shows the LCD Circuit. Figure 3-9 LCD Circuit Mar. 24, 2022 Page 32 of 39 Rev 1.00... -
Page 33: 3.10 Numaker-N9H30 － Cmos Sensor, I2C_1, Can_0 Circuit
NuMaker-HMI-N9H30 3.10 NuMaker-N9H30 － CMOS Sensor, I2C_1, CAN_0 Circuit Figure 3-10 shows the CMOS Sensor,I2C_1, CAN_0 Circuit. Figure 3-10 CMOS Sensor, I2C_1, CAN_0 Circuit Mar. 24, 2022 Page 33 of 39 Rev 1.00... -
Page 34: 3.11 Numaker-N9H30 － Rmii_0_Pf Circuit
NuMaker-HMI-N9H30 3.11 NuMaker-N9H30 － RMII_0_PF Circuit Figure 3-11 shows the RMII_0_RF Circuit. Figure 3-11 RMII_0_PF Circuit Mar. 24, 2022 Page 34 of 39 Rev 1.00... -
Page 35: 3.12 Numaker-N9H30 － Rmii_1_Pe Circuit
NuMaker-HMI-N9H30 3.12 NuMaker-N9H30 － RMII_1_PE Circuit Figure 3-12 shows the RMII_1_PE Circuit. Figure 3-12 RMII_1_PE Circuit Mar. 24, 2022 Page 35 of 39 Rev 1.00... -
Page 36: 3.13 Numaker-N9H30 － Usb Circuit
NuMaker-HMI-N9H30 3.13 NuMaker-N9H30 － USB Circuit Figure 3-13 shows the USB Circuit. Figure 3-13 USB Circuit Mar. 24, 2022 Page 36 of 39 Rev 1.00... -
Page 37: 3.14 Nudesign-Tft-Lcd7 － Tft-Lcd7 Circuit
NuMaker-HMI-N9H30 3.14 NuDesign-TFT-LCD7 － TFT-LCD7 Circuit Figure 3-14 shows the TFT-LCD7 Circuit. Figure 3-14 TFT-LCD7 Circuit Mar. 24, 2022 Page 37 of 39 Rev 1.00... -
Page 38: Revision History
NuMaker-HMI-N9H30 REVISION HISTORY Date Revision Description 2022.03.24 1.00 Initial version Mar. 24, 2022 Page 38 of 39 Rev 1.00... - Page 39 NuMaker-HMI-N9H30 Important Notice Nuvoton Products are neither intended nor warranted for usage in systems or equipment, any malfunction or failure of which may cause loss of human life, bodily injury or severe property damage. Such applications are deemed, “Insecure Usage”.
