3.2

Rear View

shows the main components and connectors from the rear side of NuTFT Kit Board.
The following lists components and connectors from the rear view:

16 Mbits (2 MB) SPI Flash * 1 (W25Q16CV) (U1)

Arduino UNO Compatible Interface Connectors (NU1, NU2, NU5, NU6 and NU7)

Switch (SW3, SW4)
Arduino compatible
Arduino compatible
interface connectors
interface connectors
Switch
Switch
Aug 22, 2023
Arduino compatible
Arduino compatible
interface connectors
interface connectors
Arduino compatible
Arduino compatible
interface connectors
interface connectors

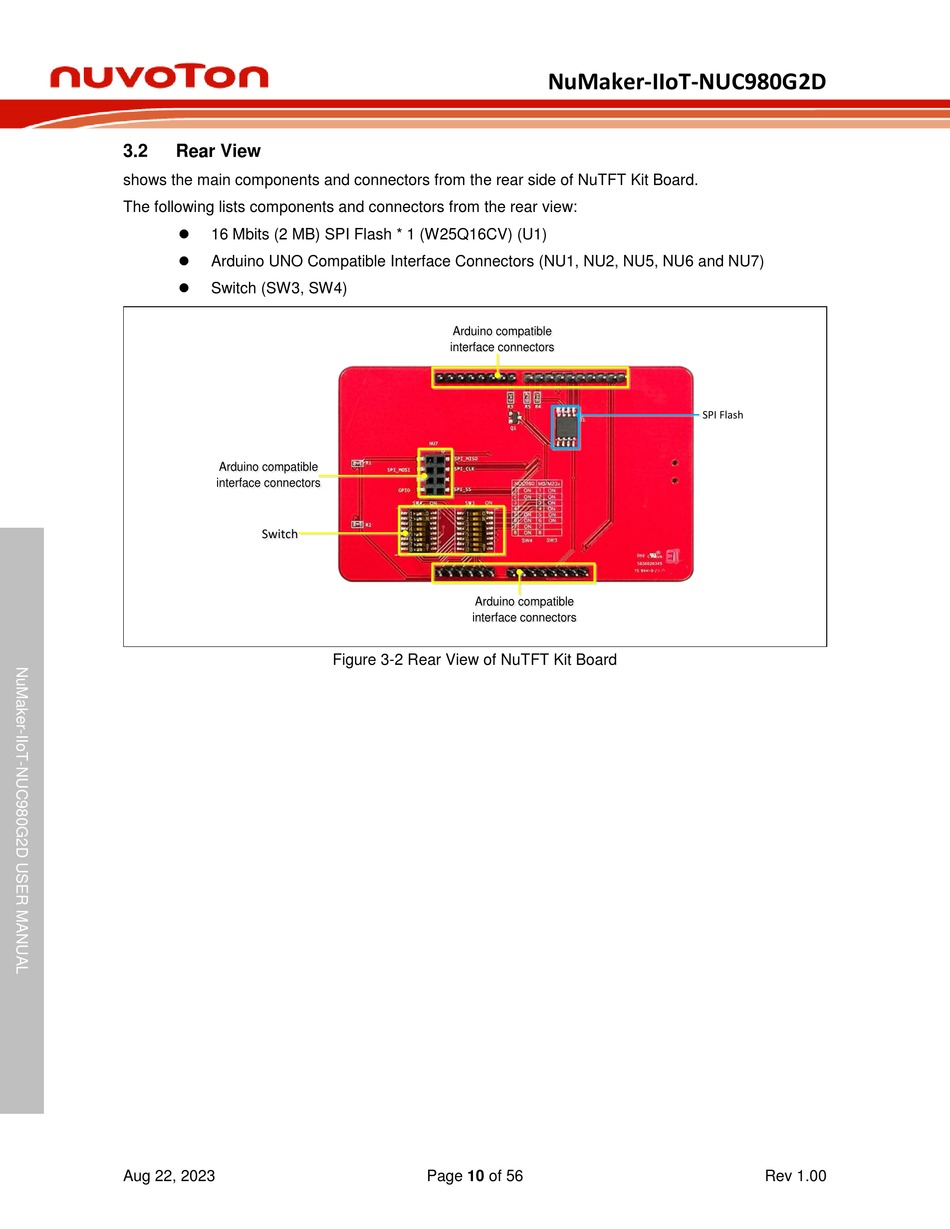

Figure 3-2 Rear View of NuTFT Kit Board
