UNO to PCIe
®
®
ARM
Cortex
-M
32-bit Microcontroller
UNO to PCIe
User Manual
®
NuMicro
M480 Series
®
NuMicro
NUC980 Series
The information described in this document is the exclusive intellectual property of
Nuvoton Technology Corporation and shall not be reproduced without permission from Nuvoton.
Nuvoton is providing this document only for reference purposes of NuMicro microcontroller based system
design. Nuvoton assumes no responsibility for errors or omissions.
All data and specifications are subject to change without notice.
For additional information or questions, please contact: Nuvoton Technology Corporation.
www.nuvoton.com
April
30, 2019
Page 1 of 20
Rev 1.00
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Nuvoton NuMicro M480 Series
Summary of Contents for Nuvoton NuMicro M480 Series
- Page 1 The information described in this document is the exclusive intellectual property of Nuvoton Technology Corporation and shall not be reproduced without permission from Nuvoton. Nuvoton is providing this document only for reference purposes of NuMicro microcontroller based system design. Nuvoton assumes no responsibility for errors or omissions.
-
Page 2: Table Of Contents

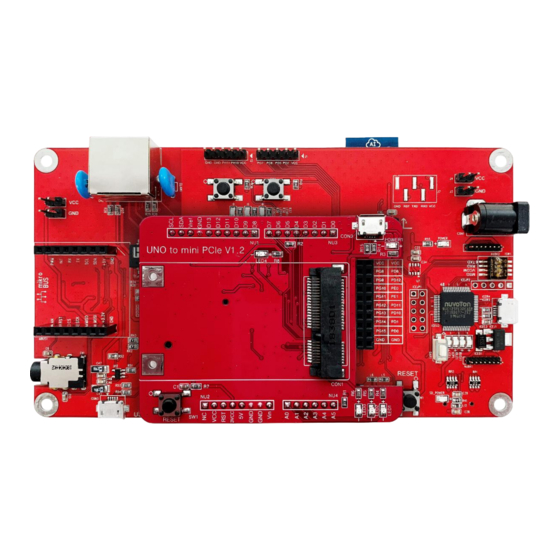

UNO to PCIe Table of Contents Overview ..................... 5 Brief Introduction to NuMaker-IoT-M487 Board ........... 6 Brief Introduction to NK-980IoT Board ............. 6 UNO to PCIe Board Overview ..............8 Front View ....................8 Rear View ....................9 Pin Assignment for mini PCIe interface ............11 Arduino UNO Compatible Interface .............. - Page 3 UNO to PCIe List of Figures Figure 1-1 Combination of UNO to PCIe Board and NuMaker-IoT-M487 Board ......5 Figure 1-2 Combination of UNO to PCIe Board and NK-980IoT Board........... 5 Figure 1-3 NuMaker-IoT-M487 Board ....................6 Figure 1-4 NK-980IoT Board ......................7 Figure 2-1 Front View of UNO to PCIe Board ..................
- Page 4 UNO to PCIe List of Tables Table 2-1 Pin Assignment for mini PCIe interface ................. 11 Table 2-2 Arduino UNO Interface of NuMaker-IoT-M487 board and NK-980IoT board Mapping with UNO to PCIe Board ......................13 April 30, 2019 Page 4 of 20 Rev 1.00...
-
Page 5: Overview
UNO to PCIe OVERVIEW This user manual is aimed to give users a fast introduction to the UNO to PCIe (Ver 1.2) board. This board is a daughter board for both NuMaker-IoT-M487 (Ver 1.2) board and NK-980IoT. It needs to be combined with the Quectel EC21 module board, Quectel BG96 module and ZTE ME3630 module board to connect to LTE. -
Page 6: Brief Introduction To Numaker-Iot-M487 Board
Arduino Uno compatible interface for expansion. Users can use it to develop and verify applications to emulate the real behavior. For more detailed information about the NK-980IoT board, please visit Nuvoton ARM9 Family website to get the related User Manual document. -
Page 7: Figure 1-4 Nk-980Iot Board
UNO to PCIe Figure 1-4 NK-980IoT Board April 30, 2019 Page 7 of 20 Rev 1.00... -
Page 8: Uno To Pcie Board Overview
UNO to PCIe UNO TO PCIE BOARD OVERVIEW Front View Figure 2-1 shows the main components and connectors from the front side of UNO to PCIe board. The following lists components and connectors from the front view: mini PCIe connector (CON1) ... -
Page 9: Rear View
UNO to PCIe Rear View Figure 2-2 shows the main components and connectors from the rear side of UNO to PCIe board. The following lists connectors from the rear view: Mini SIM card slot for SIM1 (CON2) Switch for UART pins of NuMaker-IoT-M487 board (SW2) GPIO pin of UNO Status Function... -
Page 10: Figure 2-2 Rear View Of Uno To Pcie Board
UNO to PCIe SIM Card slot (CON2) Figure 2-2 Rear View of UNO to PCIe Board April 30, 2019 Page 10 of 20 Rev 1.00... -
Page 11: Pin Assignment For Mini Pcie Interface
UNO to PCIe Pin Assignment for mini PCIe interface The UNO to PCIe daughter board is equipped with mini PCIe connecter, USB2.0, Sim Card and one push button for user developing and verifying some special feature. Besides, the pin arrangement of UNO to PCIe is compatible with Arduino UNO. -
Page 12: Arduino Uno Compatible Interface
UNO to PCIe Arduino UNO Compatible Interface Figure 2-3 shows the Arduino UNO compatible interface. The Table 2-2 shows the mapping tables on these connector headers of NuMaker-IoT-M487 board and NK-980IoT board. Figure 2-3 Arduino UNO Compatible Interface April 30, 2019 Page 12 of 20 Rev 1.00... - Page 13 UNO to PCIe Table 2-2 Arduino UNO Interface of NuMaker-IoT-M487 board and NK-980IoT board Mapping with UNO to PCIe Board UNO to PCIe Board UNO to PCIe Board Header Header Compatible to Compatible to UNO to PCIe Board UNO to PCIe Board Arduino UNO Arduino UNO NU2.1...
-
Page 14: Pcb Placement
UNO to PCIe PCB Placement Figure 2-4 and Figure 2-5 show the front and rear placement of NuMaker M487 Advance board. Figure 2-4 Front Placement Figure 2-5 Rear Placement April 30, 2019 Page 14 of 20 Rev 1.00... -
Page 15: Uno To Pcie Board Schematics
UART_RI UART_RI TVCC switch 3.3V to 1.8V UART_DCD UART_DCD W_DISABLE W_DISABLE WAKE# WAKE# PERST# PERST# nuvoTon Technology Corp. Title UNO_to_PCIe Size Document Number Interface Connector Tuesday, April 09, 2019 Date: Sheet Figure 3-1 Interface Connectors April 30, 2019 Page 15 of 20... -
Page 16: Mini Pcie Interface
SC_DAT SC_CLK SC_CLK 3VCC SC_RST SC_RST mini PCIe PCIe_USB_DM mini PCIe PCIe_USB_DM PCIe_USB_DP PCIe_USB_DP nuvoTon Technology Corp. Title UNO_to_PCIe Size Document Number mini PCIe Date: Tuesday, April 09, 2019 Sheet Figure 3-2 mini PCIe interface April 30, 2019 Page 16 of 20... -
Page 17: Sim Card
33pF 33pF 33pF 33pF C0603 C0603 C0603 C0603 C0603 SMF15C SIM Card TSOP-6 Off-page Connector 3VCC 3VCC nuvoTon Technology Corp. Title UNO_to_PCIe SC_PWR SC_PWR SC_DAT SC_DAT SC_CLK Size Document Number SC_CLK SC_RST SIM Card SC_RST Date: Wednesday, April 03, 2019... -
Page 18: Usb Device
CON3 PCIe_USB_DM PCIe_USB_DP Off-page Connector 3VCC 3VCC USB_MICRO_RECEP. PCIe_USB_DM PCIe_USB_DM PCIe_USB_DP PCIe_USB_DP USB Device nuvoTon Technology Corp. Title UNO_to_PCIe Size Document Number USB Device Date: Wednesday, April 03, 2019 Sheet Figure 3-4 USB Device Circuit April 30, 2019 Page 18 of 20... -
Page 19: Revision History
UNO to PCIe REVISION HISTORY Date Revision Description 2019.04.30 1.00 Initially issued. April 30, 2019 Page 19 of 20 Rev 1.00... - Page 20 UNO to PCIe Important Notice Nuvoton Products are neither intended nor warranted for usage in systems or equipment, any malfunction or failure of which may cause loss of human life, bodily injury or severe property damage. Such applications are deemed, “Insecure Usage”.
