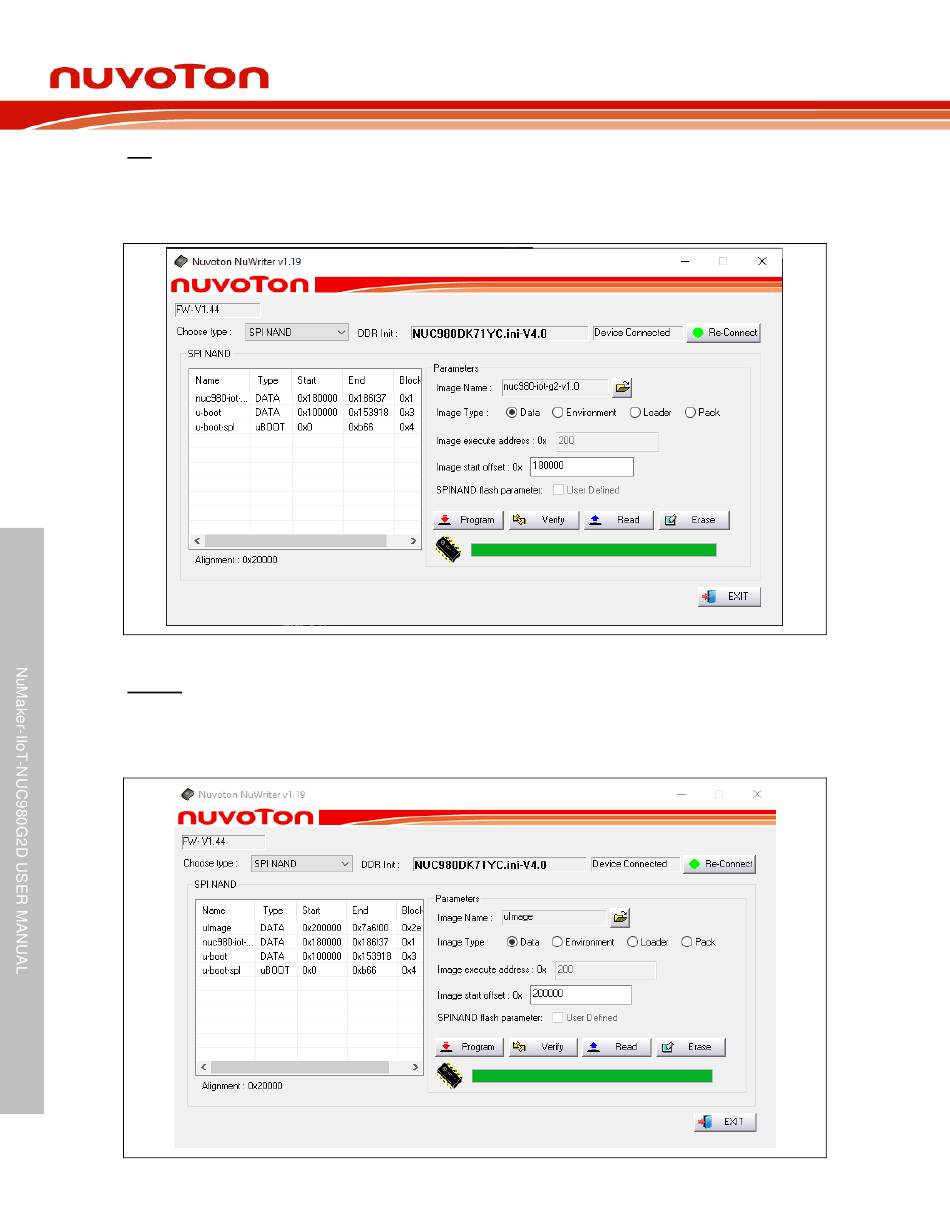

dtb
Linux 5.10 need to download the dtb into SPI NAND Flash at the specified address, depending on the
value of image start offset (aligned on block size boundary, block size is based on SPI NAND
specifications). If dtb start offset is equal to 0x180000, download the dtb into SPI NAND Flash at the
address 0x180000.
uImage
Download the image of data type into SPI NAND Flash at the specified address, depending on the value
of image start offset (aligned on block size boundary, block size is based on SPI NAND specifications).
If image start offset is equal to 0x200000, download the image of data into SPI NAND Flash at the
address 0x200000.
Aug 22, 2023
Figure 5-15 Download dtb to SPI NAND
