Nuvoton NuMicro NuMaker-IIoT-NUC980G2D User Manual page 30

NuMaker-IIoT-NUC980G2D

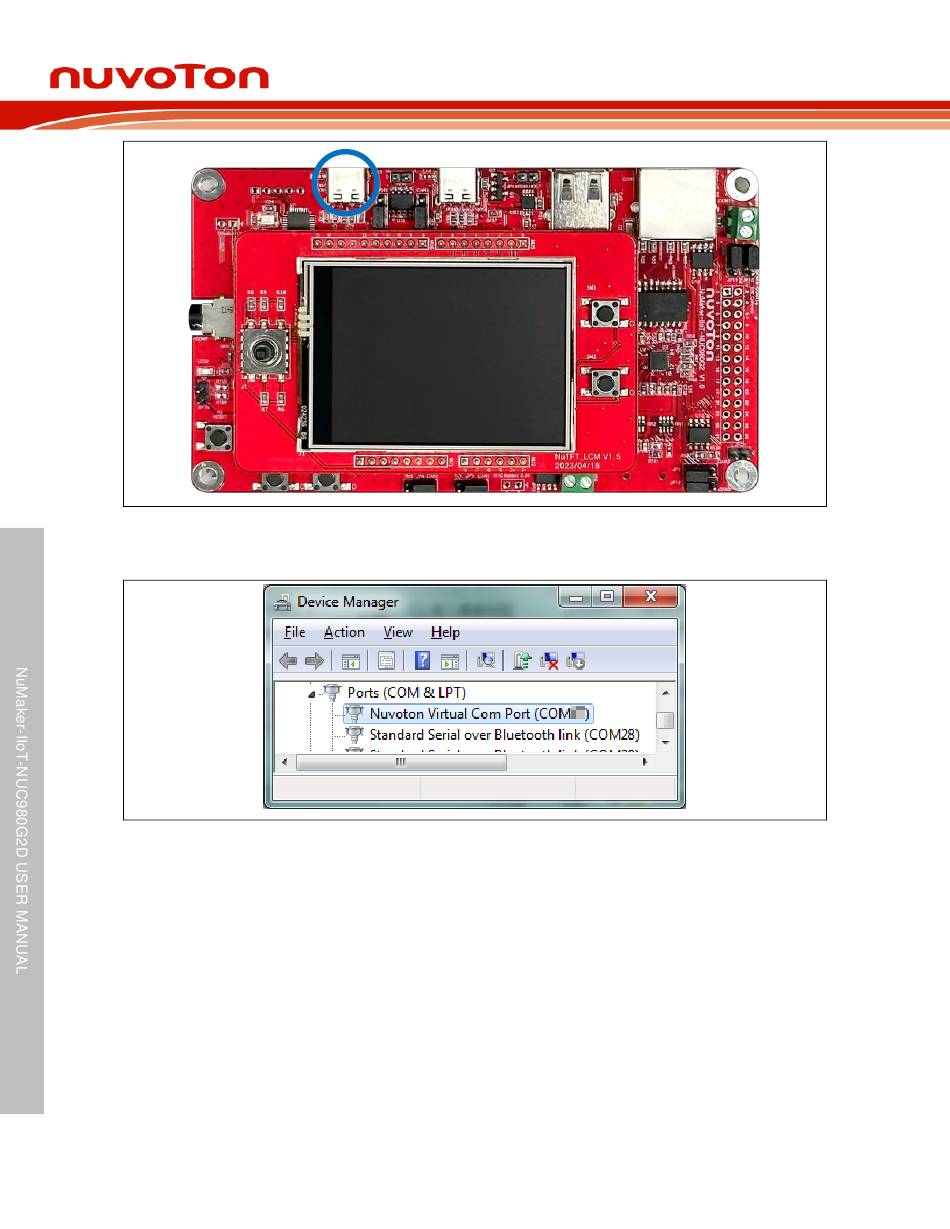

Figure 5-6 USB-Serial Debug Port
2. Find the "Nuvoton Virtual COM Port" on the Device Manger as Figure 5-7.
Figure 5-7 Device Manger
3. Open a serial port terminal, PuTTY for example, to print out debug message. Set the speed to
115200.
Aug 22, 2023 Page 30 of 56 Rev 1.00
