INSTRUCTIONS FOR USE

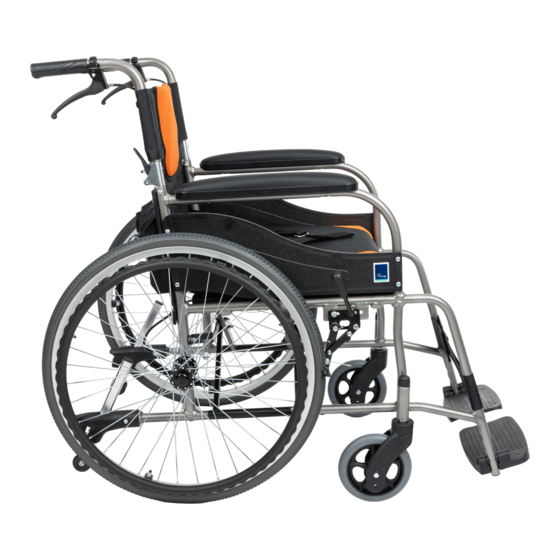

Aluminium wheelchair
Product code: SIMPLE-TIM
1. Characteristics
The wheelchair is made of light aluminium frame reinforced with
double cross bar. It has upholstered backrest and seat cushion.
Armrests are made in profiled version. The wheelchair is equipped
with quick release function allowing fast dismantling of wheels, anti-
tip wheels, safe belt, attendant brakes and foldable backrest.
Footrests are available in a swing away version. The wheelchair is
supplied with solid rear wheels 22'' and solid rubber front wheels 6''
in diameter. For patients after amputations, there is a possibility to
adjust the centre of gravity on the front wheels.
The set includes: frame with seat, cushion, protective strap, set of
keys for wheelchair assembly/dismantling

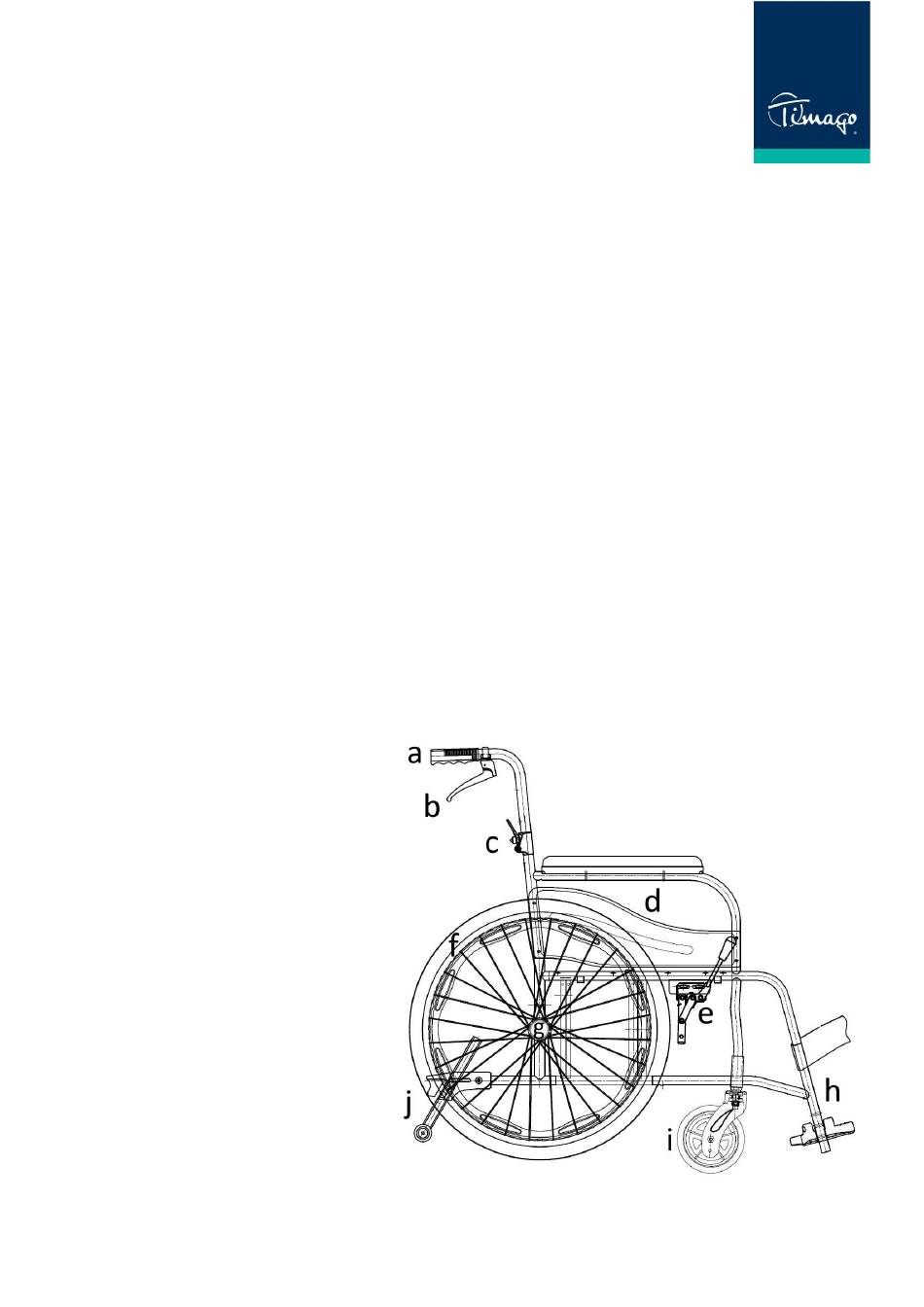

Elements of the wheelchair:
a. Hand grip
b. Attendant brake
c. Backrest lock
d. Armrest
e. Wheel lock
f. Handrim
g. Quick release
h. Footrest
i. Adjustment of the
centre of gravity
on the front wheels
j. Anti-tip wheels
1
Advertisement
Table of Contents
Related Manuals for Timago SIMPLE-TIM
Summary of Contents for Timago SIMPLE-TIM
- Page 1 INSTRUCTIONS FOR USE Aluminium wheelchair Product code: SIMPLE-TIM 1. Characteristics The wheelchair is made of light aluminium frame reinforced with double cross bar. It has upholstered backrest and seat cushion. Armrests are made in profiled version. The wheelchair is equipped with quick release function allowing fast dismantling of wheels, anti- tip wheels, safe belt, attendant brakes and foldable backrest.
- Page 2 2. Application The wheelchair is designed for people who have problems with unassisted moving and for patients with dysfunctions and reduced mobility. This self propelled wheelchair can also be pushed by an accompanying person. The wheelchair is suitable for indoor and outdoor use.
- Page 3 Step 5. Checking the assembly of wheels. Lift the wheelchair slightly and spin the right wheel and then the left one by pulling the handrims and check if the wheels spin properly. Step 6. Assembly of cushion. Fix the cushion to the seat with Velcro. On completion of the above activities, the wheelchair is ready to use.
- Page 4 • In case of excessive resistance, pull the handle forwards slightly by twisting off the locking screw which is located on the other side of the wheel lock (from the inside of the wheelchair). Set the wheel lock shoe in such position that the wheel lock blocks the wheel easily.
- Page 5 • To adjust the centre of gravity, unscrew fixing screw in right and left wheel. Then, set the seat inclination by moving fixing axis of the wheel upwards or downwards, the same in both wheels. • The seat inclination should be set in such a way so that the user does not slide down from the wheelchair and can freely use handrims.
- Page 6 5. Notes Timago International Group does not bear responsibility of improper moving in the wheelchair, failure to comply safety regulations and misuse. 6. Cleaning and maintenance Carry out the maintenance of the wheelchair components regularly: • The upholstery and the cushion can be cleaned with damp (not wet) cloth and cold or warm water, without the use of detergents.
- Page 7 Serial number Medical device Please read the Note instruction The manufacturer checked for compliance with essential medical devices requirements. Our complete line of products is available from our distributors. Learn more at: www.timago.com. Thank you for choosing Timago!
- Page 8 Timago International Group Spółka z o.o. i Spółka – Spółka komandytowa ul. Karpacka 24/12 43-316 Bielsko-Biała, Polska T.: +48 33 499 50 00 F.: +48 33 499 50 11 E.: info@timago.com 02/2023(I)
