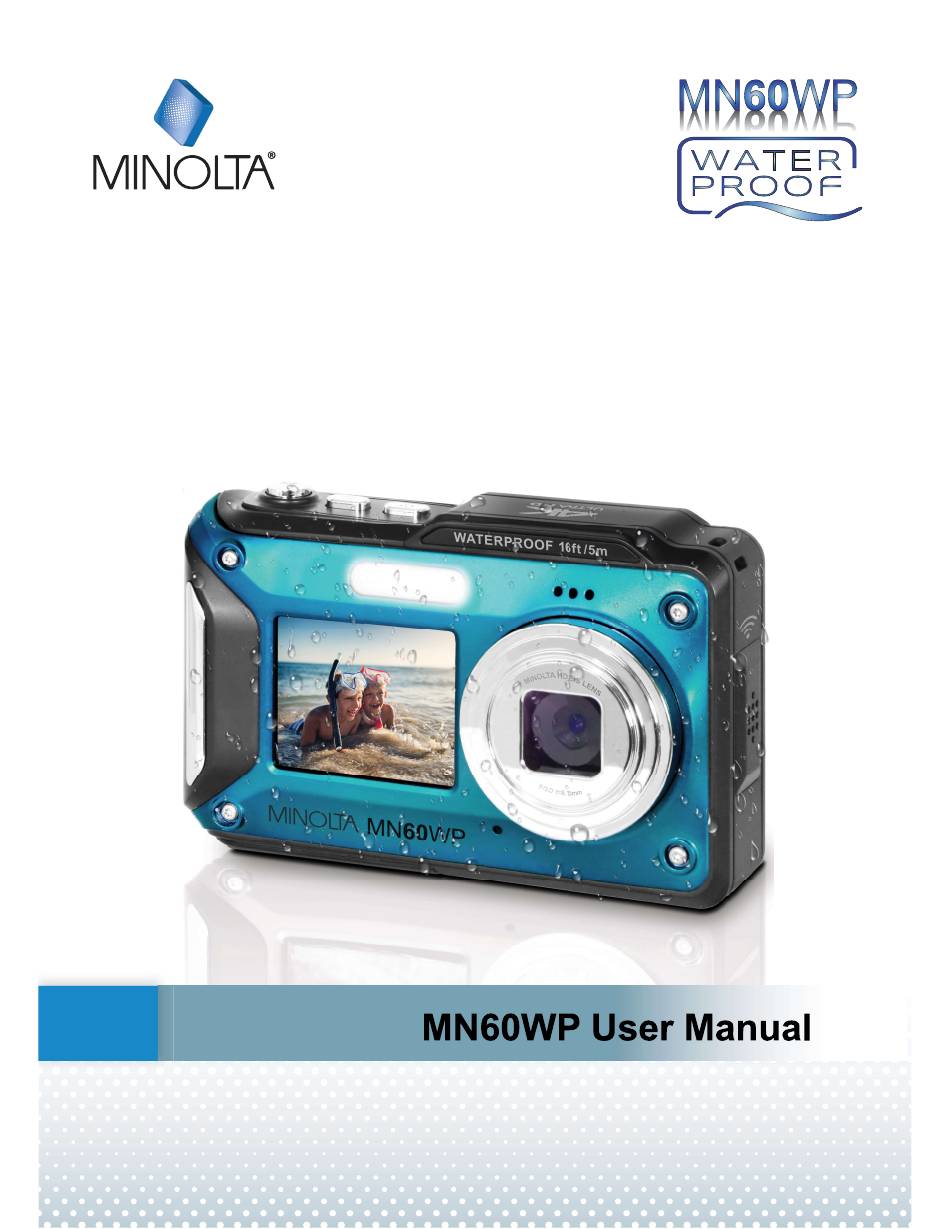

Minolta MN60WP User Manual

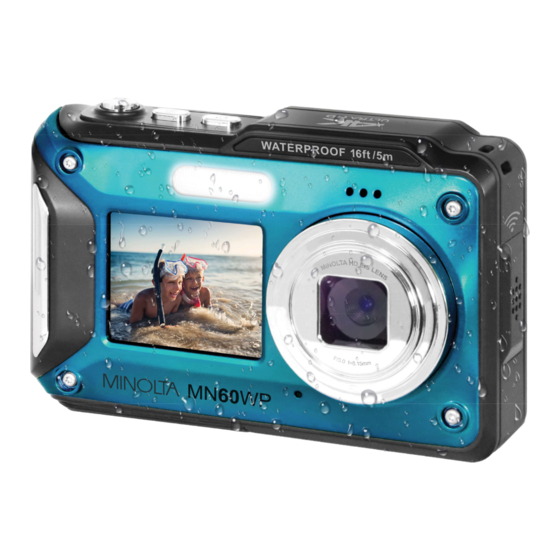

Waterproof camera
Hide thumbs Also See for MN60WP:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MN60WP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Minolta MN60WP

Summary of Contents for Minolta MN60WP

  • Page 2 1. About Your Camera About this Manual Congratulations on purchasing the Minolta MN60WP Waterproof Camera! The contents of this manual are subject to change without notice. Note that the may differ somewhat from the screens and configuration of the actual camera.
  • Page 3 1. About Your Camera conditions for satisfying RF exposure compliance. FCC: SAR standard Value: 1.6 W/Kg, Maximal Measure: 0.4 W/kg CE Mark Warning This is a Class B product, in a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.
  • Page 4 1. About Your Camera batteries according to the instructions. Please keep the batteries out of the reach of children to prevent from swallowing the batteries, which might cause poisoning. If the battery's color or shape changes in any way, stop using the battery immediately.
  • Page 5 1. About Your Camera If moisture such as water droplets adheres to the outside of the camera or inside of the battery cover, immediately wipe it If a foreign substance adheres to the outside of the camera or inside of the battery cover, immediately remove it with a soft cloth.
  • Page 6 1. About Your Camera To Unlock the Battery Door Unlock the battery door by sliding the battery door notch away from the opening. Use a fingernail or other pointy object when sliding the latch to get a better grip. To Lock the Battery Door Press down on the end of the battery door where the latch is located until the battery door is completely flat and a click is heard.
  • Page 7 1. About Your Camera Do Not Point the Lens at Strong Light Sources for Extended Periods Avoid pointing the lens at the sun or other strong light source light sources for extended periods when using or storing the camera. Intense light may cause the image sensor to deter before Removing or Disconnecting the Power Source or Memory Card...
  • Page 8 1. About Your Camera or a computer, the battery is not charged at battery temperature below 5°C (41°F) or above 55°C (131°F). When the battery is between 45°C (113°F) - 55°C (131°F), the chargeable capacity may decrease. Do not continue charging once the battery is fully charged as this will result in reduce battery performance.
  • Page 9 1. About Your Camera with a blower, gently wipe the parts with a soft dry cloth. If you wipe with too much pressure or with a rough cloth, it may damage the camera or cause a malfunction. Storage If you do not intend to use the camera for an extended period, remove the battery and avoid storing the camera in any of the following types of locations: Places that are poorly ventilated or subject to humidity of over 60% Place exposed to temperatures above 50°C (122°F) or below -10°C (14°F).
  • Page 10 1.1 Camera Interface 1 2 3 4 10 11 1. Shutter 10. LED Indicator 2. Switch Screen 11. Zoom In 3. Power 12. Up | LED Light On/Off 13. Down | Delete | 4. LED Light Record Audio On/Off 5. Microphone 14.
  • Page 11 1.2 Button Function Description Function Description Power Press for 3 seconds to power on or off. In Settings: Tap to enter menus and confirm selected setting. OK | Zoom Out In Video or Photo: Press and hold to zoom out. In Playback: Tap to play and pause recorded videos.

  • Page 12: Installing The Battery

    To Open the Battery Door Unlock the battery door by sliding the battery door notch away from the opening. Use a fingernail or other pointy object when sliding the latch to get a better grip. The battery door will flip up automatically when the latch is fully opened.
  • Page 13 Push the memory card down until you hear an audible click. The memory card can only be inserted in one way. Do not force the card in if it will not go in smoothly. 3. Close the memory card door by pushing it down and a click is heard from the latch.

  • Page 14: Charging The Battery

    To Lock the Battery Door Press down on the end of the battery door where the latch is located until the battery door is completely flat and a click is heard. The battery door is fully locked once the latch clicks into place. Charging the Battery Connect your camera to the included AC adaptor with the USB cable provided for charging.
  • Page 15 camcorder to your computer, open the battery door on the bottom of the camera to access the USB port. Insert the small end of the USB plug into the will function as a web cam. Use the UP or DOWN buttons to select your desired mode and press the OK button to enter into that mode.

  • Page 16: Screen Icons

    1.1 Screen Icons The meaning of the icons shown on the LCD screen in each mode can be found below. Icon Description Photo Mode Interval Photo Mode Burst Photo Mode Self-Timer Photo Mode Video Mode Slow Motion Mode Loop Recording Mode Time Lapse Mode...
  • Page 17 . Using Your Camera 2. Using the Camera 2.1 Photo Shooting To enter Photo mode, power the camera on and press the MODE button to access the mode selection screen and use the UP or DOWN buttons to select Photo and press the OK button to enter that mode. 1.
  • Page 18 16MP, 13MP, 12MP, 8MP). 6. Press the MENU button twice to exit the settings menu. 2.1.2 White Balance White Balance changes the color of light in your pictures, making it seem warmer or cooler depending on how the light you're shooting in affects the frame.
  • Page 19 6. Press the MENU button twice to exit the settings menu. 2.1.5 Metering Metering mode refers to the way in which a camera determines the appropriate exposure (quantity of light reaching the camera lens). Spot metering will only base the exposure setting on a very small area of the scene. Center metering will use the light from the center of the LCD and the Multi setting measures the light at several points on the screen.
  • Page 20 button to confirm your selected option (Auto, 2 Seconds, 5 Seconds, 10 Seconds, 15 Seconds, 20 Seconds, 30 Seconds). 6. Press the MENU button twice to exit the settings menu. 2.1.8 ISO This function adjusts the light sensitivity in your photograph. 1.
  • Page 21 2.2 Interval Photo In the interval photo mode, the camera will take a single photo at a set time interval until stopped. To enter Interval Photo mode, power the camera on and press the MODE button to access the mode selection screen and use the UP or DOWN buttons to select Interval and press the OK button to enter that mode.
  • Page 22 2. Press the OK button to enter the Photo mode settings. 3. Select Photo Size using the UP or DOWN buttons. 4. Press the OK button to enter the Photo Size submenu. 5. Press the UP or DOWN buttons to navigate the menu, and press the OK button to confirm your selected resolution (48MP, 30MP, 24MP, 20MP, 16MP, 13MP, 12MP, 8MP).
  • Page 23 2. Press the OK button to enter the Photo mode settings. 3. Select White Balance using the UP or DOWN buttons. 4. Press the OK button to enter the White Balance submenu. 5. Press the UP or DOWN buttons to navigate the menu, and press the OK button to confirm your selected option (Auto, Sunny, Cloudy, Incandescent, Florescent).
  • Page 24 2. Press the OK button to enter the Photo mode settings. 3. Select Sharpness using the UP or DOWN buttons. 4. Press the OK button to enter the Sharpness submenu. 5. Press the UP or DOWN buttons to navigate the menu, and press the OK button to confirm your selected option (Sharp, Normal, Soft).
  • Page 25 5. Press the UP or DOWN buttons to navigate the menu, and press the OK button to confirm your selected option (Wide, Standard, Narrow). 6. Press the MENU button twice to exit the settings menu.

  • Page 26: Photo Burst

    2.3 Photo Burst In photo burst mode, the camera will take a set number of images with each press of the SHUTTER button. To enter Photo Burst mode, power the camera on and press the MODE button to access the mode selection screen and use the UP or DOWN buttons to select Burst and press the OK button to enter that mode.
  • Page 27 5. Press the UP or DOWN buttons to navigate the menu, and press the OK button to confirm your selected resolution (48MP, 30MP, 24MP, 20MP, 16MP, 13MP, 12MP, 8MP). 6. Press the MENU button twice to exit the settings menu. 2.3.2 Photo Burst This function lets you set the number of photos captured with each photo burst.
  • Page 28 5. Press the UP or DOWN buttons to navigate the menu, and press the OK button to confirm your selected option (Auto, Sunny, Cloudy, Incandescent, Florescent). 6. Press the MENU button twice to exit the settings menu. 2.3.5 Exposure This function adjusts the frame brightness in your photograph. 1.
  • Page 29 5. Press the UP or DOWN buttons to navigate the menu, and press the OK button to confirm your selected option (Sharp, Normal, Soft). 6. Press the MENU button twice to exit the settings menu. 2.3.8 ISO This function adjusts the light sensitivity in your photograph. 1.
  • Page 30 2.4 Self-Timer In Self Timer mode, the camera will take a single picture after a set amount of time has elapsed with each press of the SHUTTER button. To enter Self Timer mode, power the camera on and press the MODE button to access the mode selection screen and use the UP or DOWN buttons to select Timer and press the OK button to enter that mode.
  • Page 31 1. In Self-Timer Mode press the MENU button. 2. Press the OK button to enter the Photo mode settings. 3. Select Self-Timer using the UP or DOWN buttons. 4. Press the OK button to enter the Self-Timer submenu. 5. Press the UP or DOWN buttons to navigate the menu, and press the OK button to confirm your selected resolution (3 Seconds, 5 Seconds, 10 Seconds, 20 Seconds).
  • Page 32 1. In Self-Timer Mode press the MENU button. 2. Press the OK button to enter the Photo mode settings. 3. Select Exposure using the UP or DOWN buttons. 4. Press the OK button to enter the Exposure submenu. 5. Press the UP or DOWN buttons to navigate the menu, and press the OK button to confirm your selected option (-3, -2, -1, 0, +1, +2, +3).
  • Page 33 2. Press the OK button to enter the Photo mode settings. 3. Select using the UP or DOWN buttons. 4. Press the OK button to enter the ISO submenu. 5. Press the UP or DOWN buttons to navigate the menu, and press the OK button to confirm your selected option (Auto, 100, 200, 400, 800, 1600, 3200, 6400).

  • Page 34: Video Recording

    2.5 Video Recording Power the camera on and the camera will be ready to record videos right away. 1. Line up your shot by looking at the LCD screen to see what is in view. 2. Hold the camera steady and press the SHUTTER button to begin recording.
  • Page 35 electronically minimizing motion blur and reducing camera shake. 1. In Video Mode press the MENU button. 2. Press the OK button to enter the Photo mode settings. 3. Select Image Stabilization using the UP or DOWN buttons. 4. Press the OK button to turn Image Stabilization on and off, a check mark indicates that the feature is active.
  • Page 36 2.5.5 Exposure This function adjusts the frame brightness in your photograph. 1. In Video Mode press the MENU button. 2. Press the OK button to enter the Photo mode settings. 3. Select Exposure using the UP or DOWN buttons. 4. Press the OK button to enter the Exposure submenu. 5.
  • Page 37 2.5.8 Video Quality The Video Quality function determines the level of compression the camera uses when saving videos to a memory card. 1. In Video Mode press the MENU button. 2. Press the OK button to enter the Photo mode settings. 3.
  • Page 38 2.5.11 Record Audio This setting allows you to select the built-in microphone ON or OFF during a video recording. Once you select an option, your camcorder will either record audio within the video file, or record a video file without the audio. 1.

  • Page 39: Slow Motion Recording

    2.6 Slow Motion Recording Videos recorded in slow motion are recorded at a much higher frames per second and when played back, the videos show movement at a much slower rate. To enter Slow Motion mode, power the camera on and press the MODE button to access the mode selection screen and use the UP or DOWN buttons to select and press the OK button to enter that mode.
  • Page 40 button to confirm your selected resolution (1080P 4X, 1080P 2X, 720P 8X, 720P 4X). 6. Press the MENU button twice to exit the settings menu. 2.6.2 White Balance White Balance changes the color of light in your pictures, making it seem warmer or cooler depending on how the light you're shooting in affects the frame.
  • Page 41 3. Select Metering using the UP or DOWN buttons. 4. Press the OK button to enter the Metering submenu. 5. Press the UP or DOWN buttons to navigate the menu, and press the OK button to confirm your selected option (Multi, Center, Spot, Matrix).
  • Page 42 5. Press the UP or DOWN buttons to navigate the menu, and press the OK button to confirm your selected option (Wide, Standard, Narrow). 6. Press the MENU button twice to exit the settings menu.

  • Page 43: Loop Recording

    2.7 Loop Recording This function allows you to set a maximum duration for each video clip recorded. To enter Loop Recording mode, power the camera on and press the MODE button to access the mode selection screen and use the UP or DOWN buttons to select Loop and press the OK button to enter that mode.
  • Page 44 (120fps), 1080P (60fps), 1080P (30fps), 720P (240fps), 720P (120fps), 720P (60fps), 720P (30fps)). 6. Press the MENU button twice to exit the settings menu. 2.7.2 Loop Duration This function allows you to set a maximum duration for each video clip recorded.
  • Page 45 indicates that the feature is active. 5. Press the MENU button twice to exit the settings menu. 2.7.5 White Balance White Balance changes the color of light in your pictures, making it seem warmer or cooler depending on how the light you're shooting in affects the frame.
  • Page 46 4. Press the OK button to enter the Metering submenu. 5. Press the UP or DOWN buttons to navigate the menu, and press the OK button to confirm your selected option (Multi, Center, Spot, Matrix). 6. Press the MENU button twice to exit the settings menu.
  • Page 47 button to confirm your selected option (Auto, 100, 200, 400, 800, 1600, 3200, 6400). 6. Press the MENU button twice to exit the settings menu. 2.7.11 Time Stamp This setting allows you to imprint a date & time onto your captured image files. Once an image file is captured with the imprint, the imprint cannot be removed.

  • Page 48: Time Lapse

    2.8 Time Lapse This feature allows you to capture long sequences of events in a much shorter time period. To enter Time Lapse mode, power the camera on and press the MODE button to access the mode selection screen and use the UP or DOWN buttons to select Lapse and press the OK button to enter that mode.
  • Page 49 2.8.2 Interval Duration This function allows you to set the amount of time in between images. 1. In Time Lapse Mode press the MENU button. 2. Press the OK button to enter the Photo mode settings. 3. Select Interval Duration using the UP or DOWN buttons. 4.
  • Page 50 2.8.4 White Balance White Balance changes the color of light in your pictures, making it seem warmer or cooler depending on how the light you're shooting in affects the frame. 1. In Time Lapse Mode press the MENU button. 2. Press the OK button to enter the Photo mode settings. 3.
  • Page 51 NOTE: By selecting time lapse will automatically stop recording when the final video is 10 seconds long. The actual length of time that it will take to record the 10 second video will depend on the interval duration, see section 2.8.2. 2.8.7 Metering Metering mode refers to the way in which a camera determines the appropriate exposure (quantity of light reaching the camera lens).
  • Page 52 4. Press the OK button to enter the Video Quality submenu. 5. Press the UP or DOWN buttons to navigate the menu, and press the OK button to confirm your selected option (Normal, Fine, Super Fine), Super Fine uses the least amount of compression for saving, and as a result produces a higher photo quality.

  • Page 53: Camera Settings

    2.9 Camera Settings Basic settings can be changed in the Settings menu. These include date & time, language and sound options. Power the camera on and press the MENU button. Press the DOWN button so the gear icon is highlighted and press the OK button to enter the camera settings menu.
  • Page 54 5. The Wi-Fi information will then be displayed on the screen. Press the OK button to exit the Wi-Fi information screen. 6. Press the MENU button twice to exit the settings menu. 2.9.4 Reset Wi-Fi This function allows you to reset the Wi-Fi network on the camera. 1.
  • Page 55 indicates that the feature is active. 5. Press the MENU button twice to exit the settings menu. 2.9.7 Screen Saver This function sets the duration of time in which the camcorder will wait with no user input before automatically turning off the LCD screen. Note: even while the screen is off, the camera will still be powered on.
  • Page 56 3. Select Button Sound using the UP or DOWN buttons. 4. Press the OK button to enter the Button Sound submenu. 5. Press the UP or DOWN buttons to navigate the menu, and press the OK button to confirm your selected option (High, Medium, Low, Off). 6.
  • Page 57 4. Press the OK button to enter the Time Set submenu. 5. Press the UP or DOWN buttons to change the highlighted value and press the OK button to switch the highlighted value. 6. Press the MENU button to save the settings and exit the submenu. 7.
  • Page 58 button to enter the camera settings. 3. Select Device Info using the UP or DOWN buttons. 4. Press the OK button to enter the Device Info submenu. 5. The device info will then be displayed on the screen, press the OK button to exit the Device Info screen.
  • Page 59 2.10 Playback Mode Videos and photos captured on your camera can be easily played back. 1. Press the MODE button to enter Playback mode. 2. Press the UP or DOWN buttons to cycle through the captured videos and photos stored on the memory card. 3.

  • Page 60: Wireless Connectivity

    2.11 Wireless Connectivity 2.11.1 Connecting to the DV King 4K App To wirelessly operate the MN60WP camera you will need to install the DV King 4K DV King 4K The camera can be operated remotely by following the steps below: 1.
  • Page 61 2.11.2 Operating the D Your MN60WP will now be operable via your smartphone. It will initially default to the video recording function. To change to Photo Mode, press the camera icon in the bottom of your phone screen. Video Mode...
  • Page 62 2.11.3 Recording Videos Remotely 1. To start recording a video, press the record button, a video camera icon, in the middle of your smartphone screen. 2. The video recording mode can be changed by selecting the mode name from the middle of your smartphone screen. 3.
  • Page 63 2.11.4 Taking Photos Remotely 1. To capture a photo, press the capture button, a camera icon, in the 2. The photo capture mode can be changed by selecting the mode name 3. The photo mode settings can be accessed by selecting the gear icon in...
  • Page 64 2.11.5 Viewing Media on the App 1. To view the recorded images and videos stored on the memory card on the app, press the photo gallery button in the bottom left of your 2. Tap the photo or video file you wish to view. From this screen media can be saved to your smartphone and deleted.
  • Page 65 2.11.6 Changing Camera Settings on the App Camcorder settings can also be changed on the app. Press the icon in the top here, a number of settings including can be changed.
  • Page 66 4.1 Technical Specifications Model Number Minolta MN60WP Lens Zoom 16X Digital Zoom Image Sensor 12MP CMOS Sensor Shutter -Shake Image Stabilization JPEG: 48MP 30MP 24MP 20MP 16MP 13MP Pixels (photo) 12MP 8MP MP4: 4K (30fps) 2.7K (30fps) 1080P (120fps) 1080P...
  • Page 67 Minolta is a registered trademark of JMM Lee Properties, LLC and is used in the United States by Elite Brands Inc. under license. -441-1100 www.minoltadigital.com www.elitebrands.com Copyright © 2023 Elite Brands Inc. please call our toll-free technical support hotline at 800-441-1100. Please be...
