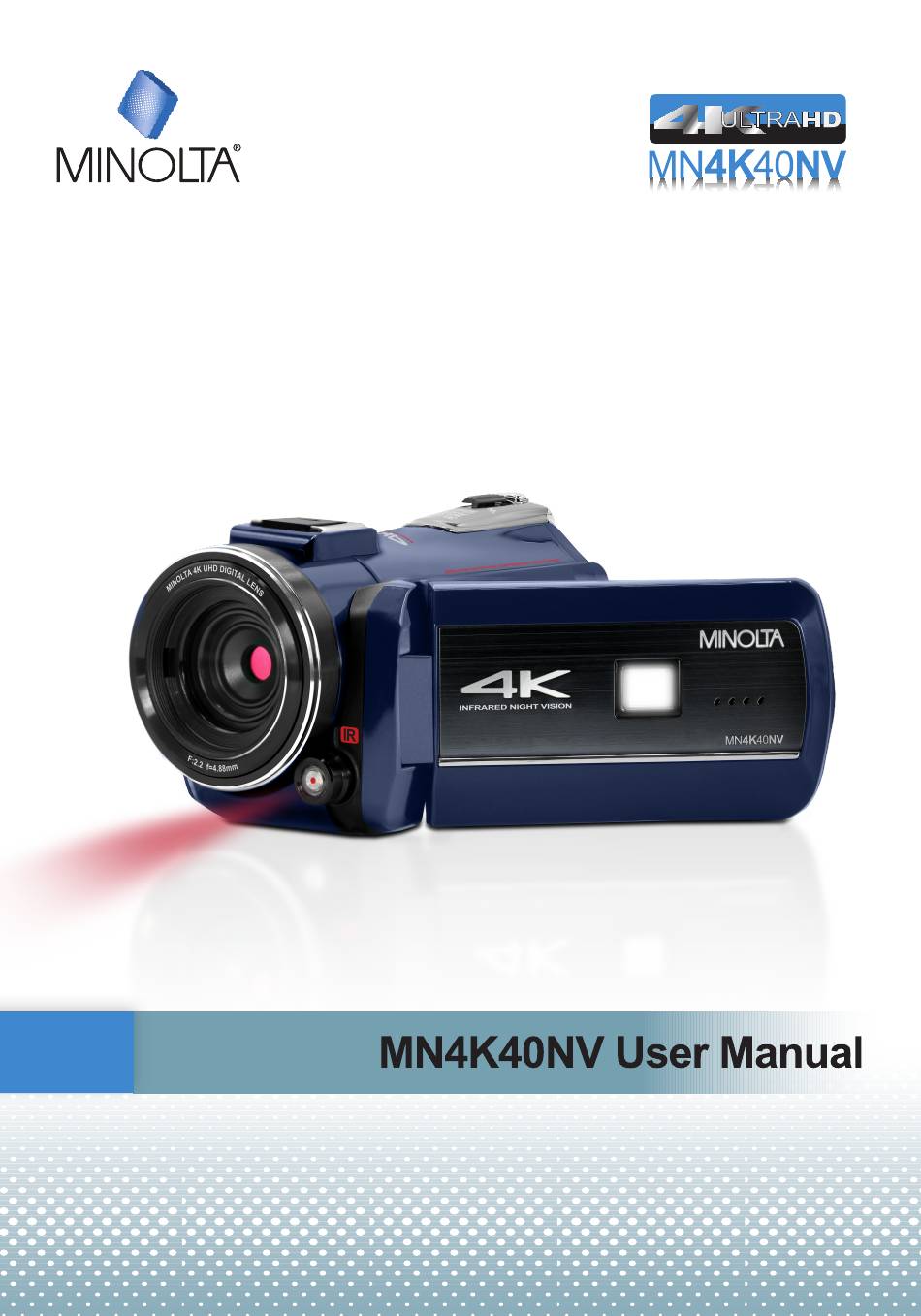

Minolta MN4K40NV User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the MN4K40NV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Minolta MN4K40NV

Summary of Contents for Minolta MN4K40NV

  • Page 2: Federal Communications Commission Interference Statement

    1. About Your Camcorder About this Manual Congratulations on purchasing the Minolta MN4K40NV Camcorder! The contents of this manual are subject to change without notice. Note that the example screens and product illustrations shown in this User’s Guide may differ somewhat from the screens and configuration of the actual camcorder.
  • Page 3 1. About Your Camcorder conditions for satisfying RF exposure compliance. FCC: SAR standard Value: 1.6 W/Kg, Maximal Measure: 0.4 W/kg CE Mark Warning This is a Class B product, in a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.
  • Page 4 1. About Your Camcorder batteries, which might cause poisoning. • Once the battery's color changes or its shape is twisted, please stop using it. USB adapter Information • Do not expose the adapter to high temperatures or moisture places. Otherwise, it may cause fire or electric shock.

  • Page 5: First Use

    2. First Use 1.1 Camcorder Interface 1. Touch LCD Screen 8. IR Night Vision I. Menu Button 2. Hot Shoe Mount 9. Battery Door Release II. Display Button 3. LED Indicator 10. Battery Door III. Power Button 4. Zoom Button 11.
  • Page 6 2. First Use 1. Lens 5. Remote Control Sensor 2. Speaker 6. Tripod Socket 3. White LED Light 7. Strap Bracket 4. Infrared LED Light...
  • Page 7 2. First Use 1.2 Button Function Description Function Description Press once to power on and press once to Power power off. Rotate to cycle between Photo, Video and Mode Dial Setup modes. Tap to access and exit all menus and Menu submenus.
  • Page 8 2. First Use White LED light to assist with vision and White LED Light recording in a low-light environment. Battery Door Slide to the right to open the battery door. Release Infrared LED Night In Photo and Video: Press to activate the IR Vision LEDs for night vision and capture.
  • Page 9 2. First Use 2. First Use 2.1 Inserting the Memory Card Insert the included SD memory card to record and store your videos and photos. When the battery is low, media stored on the memory card will not be erased. Please insert the SD memory card by following the steps below: 1.
  • Page 10 2. First Use 2.2 Installing the Battery Insert the lithium-ion battery into the battery compartment with the metal contacts facing the inside of the camcorder. The battery can only be inserted one way. Push the battery in until it locks into place. 1.
  • Page 11 2. First Use 2.3 Charging the Battery Connect your camcorder to the included AC adaptor with the USB cable provided for charging. Open the rubber jack door on the rear of the camcorder to access the charging port. Insert the small end of the USB plug into the camcorder’s port, and the larger end into the included AC adaptor.
  • Page 12 2. First Use 2.8 Video Mode Press the MODE button to switch to Video Mode. The meaning of each icon within Video Mode is explained in the table below: 1. Video Mode 7. Exposure 2. Video Size (Resolution) 8. Memory Card Inserted 3.
  • Page 13 2. First Use 2.9 Photo Mode Press the MODE button to switch to Photo Mode. The meaning of each icon within Photo Mode is explained in the table below: 1. Photo Mode 6. Color Effect 2. Photo Size (Resolution) 7. Exposure 3.
  • Page 14 2. First Use 2.10 Using the Zoom Function This camcorder has a digital zoom function. To operate the zoom function, slide the ZOOM button to the right to zoom in closer to the subject, and to the left to zoom away from the subject. 2.11 Using the LED Lights This camcorder has built-in LED Lights - giving you the ability to capture photos and videos in a dark environment.
  • Page 15 2. First Use 2.14 Remote Control Zoom In Video Note: Before using the remote, remove Pause the battery tab on the Zoom Out Photo back. LED Light Delete Mode When using the Volume Up remote, it should be Left Right pointed towards the remote control receiver Play/Stop...
  • Page 16 3. Using Your Camcorder 3. Using the Camcorder 3.1 Video Recording You may rotate the mode dial to switch to another mode. A camcorder icon will appear in the top left corner of the screen when you are in Video mode. 1.
  • Page 17 3. Using Your Camcorder 3.1.3 Setup – Color Effect This function sets the color filter effect of a video. 1. In Video Mode press the MENU button. 2. Use the ZOOM button to select Setup and press the PHOTO button to enter the menu.
  • Page 18 3. Using Your Camcorder 1. In Video Mode press the MENU button. 2. Use the ZOOM button to select Setup and press the PHOTO button to enter the menu. 3. Select ‘Metering’ using the ZOOM button and press the PHOTO button to enter the ‘Metering’...
  • Page 19 3. Using Your Camcorder 3.2 Photo Shooting Power the camcorder on and press the MODE button or press the icon in the top left corner of the touch screen to switch to Photo mode. 1. Line up your shot by looking at the LCD screen to see what is in the shot. 2.
  • Page 20 3. Using Your Camcorder 3.2.3 Setup – Color Effect This function sets the color filter effect of a video. 1. In Photo Mode press the MENU button. 2. Use the ZOOM button to select Setup and press the PHOTO button to enter the menu.
  • Page 21 3. Using Your Camcorder 2. Use the ZOOM button to select Setup and press the PHOTO button to enter the menu. 3. Select ‘Sharpness’ using the ZOOM button and press the PHOTO button to enter the ‘Sharpness’ submenu. 4. Press the ZOOM button to navigate the menu and press the PHOTO button to confirm your selected exposure mode (Soft, Normal, Sharp).
  • Page 22 3. Using Your Camcorder button to confirm your selected exposure mode (On, Off). 5. Press the MENU button to exit the submenu. 3.2.10 Function – Face Detection This function allows you to set your camcorder to detect faces in a scene and adjust your camcorder’s setting for the most optimal picture.
  • Page 23 3. Using Your Camcorder Playback Mode Videos and photos captured on your camcorder can be easily played back. 3.3.1 Video Playback Follow the steps below to enter the Video Playback mode. 1. In Video Mode press the MENU button. 2. Use the ZOOM button to select Playback and press the PHOTO button to enter the menu.
  • Page 24 3. Using Your Camcorder ‘Protect’ submenu. 2. Press the ZOOM button to navigate the menu, and press the PHOTO button for your selected setting (Lock Current, Unlock Current, Lock All, Unlock All). 3. Press the MENU button to exit the menu without protecting any videos. 3.3.2 Photo Playback Follow the steps below to enter the Video Playback mode.
  • Page 25 3. Using Your Camcorder 1. In Photo Playback Mode press the MENU button, and use the ZOOM button to select ‘Protect’. Press the PHOTO button to enter the ‘Protect’ submenu. 2. Press the ZOOM button to navigate the menu, and press the PHOTO button for your selected setting (Lock Current, Unlock Current, Lock All, Unlock All).
  • Page 26 3. Using Your Camcorder 3.4 Settings Mode Basic settings can be changed in the Setup menu. These include date & time, language and sound options. Power the camcorder on and rotate the mode dial to enter the Settings mode. A menu will display on the screen. 3.4.1 Language This function allows you to set the camcorder’s interface language.
  • Page 27 3. Using Your Camcorder 2. Press the ZOOM button to select your desired frequency. Then press the PHOTO button to confirm your selection (50Hz, 60Hz). The default frequency for the United States is 60Hz. 3. Press the MENU button to exit the submenu. 4.

  • Page 28: Technical Specifications

    4. Appendix 4.1 Technical Specifications Model Number Minolta MN4K40NV Fixed Focus • f=4.88mm • F/2.2 • 37mm Front Threading Lens for Lens Accessory Attachments Zoom 16X Digital Zoom Image Sensor 13MP CMOS Sensor Shutter Electronic • Anti-Shake Image Stabilization JPEG: 30MP • 24MP • 20MP • 16MP • 13MP • 10MP •...
  • Page 29 Minolta is a registered trademark of JMM Lee Properties, LLC and is used in the United States by Elite Brands Inc. under license. 40 Wall Street, 61st Floor, New York, NY 10005 USA • Tel: 800-441-1100 www.minoltadigital.com • www.elitebrands.com Copyright © 2022 Elite Brands Inc.
