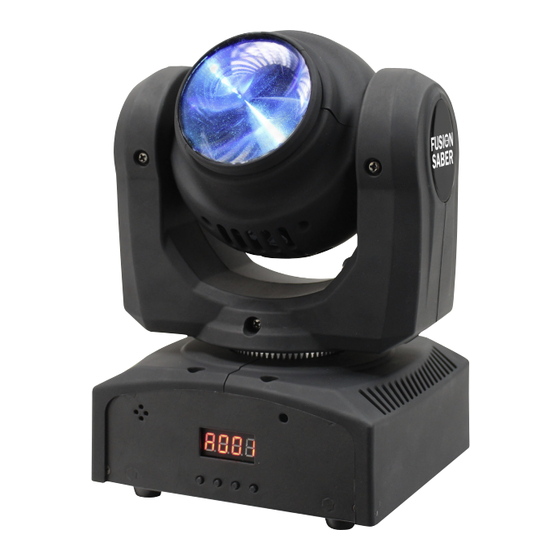

- Page 1 Fusion Saber User Manual Order code: EQLED070...
-
Page 2: Safety Advice
• Only use the equipment indoors. • If your product fails to function correctly, stop use • Do not expose to flammable sources, liquids or gases. immediately. Pack the unit securely (preferably in the original packing material), and return it to your Pro Light • Always disconnect the power from the mains when dealer for service. equipment is not in use or before cleaning! Only handle the power-cable by the plug. Never pull out the plug by • Only use fuses of same type and rating. pulling the power-cable. • Repairs, servicing and power connection must only be • Make sure that the available voltage is between carried out by a qualified technician. THIS UNIT CONTAINS 110~240V, 50/60Hz. NO USER SERVICEABLE PARTS. • Make sure that the power cable is never crimped or • WARRANTY: One year from date of purchase. damaged. Check the equipment and the power cable periodically. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Fusion Saber User Manual... - Page 3 3935 1750 39500 9880 4390 2470 1580 5270 1432 42400 10640 4710 2650 1700 3° 01 - LED display 02 - Function buttons 03 - Microphone 04 - DMX input socket 05 - DMX output socket 06 - IEC power input socket 07 - Fuse F1A 250V 08 - Fan In the box: 1 x fixture, 1 x power cable & 1 x user manual www.prolight.co.uk Fusion Saber User Manual...
- Page 4 Test d 2 5 5 h o U r Usage time (hours) v E r Software version S t r o S 2 5 5 y E S r S E t Reset factory settings www.prolight.co.uk Fusion Saber User Manual...
- Page 5 Operating instructions DMX mode: Operating in a DMX control mode environment gives the user the greatest flexibility when it comes to customising or creating a show. In this mode you will be able to control each individual trait of the fixture and each fixture independently. To access the DMX address mode, press the “MENU” button on the front of the unit to show Addr on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to set the required DMX address. Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. DMX channel mode: ChNd To access the DMX channel mode, press the “MENU” button on the front of the unit to show on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to choose one of the 9 or 17 DMX channel modes. Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Fusion Saber User Manual...
- Page 6 Red LED 1 (0-100%) 250-255 Sound mode 000-255 Green LED 1 (0-100%) CH10 000-255 Blue LED 1 (0-100%) CH11 000-255 White LED 1 (0-100%) CH12 000-255 Red LED 2 (0-100%) CH13 000-255 Green LED 2 (0-100%) CH14 000-255 Blue LED 2 (0-100%) CH15 000-255 White LED 2 (0-100%) 000-007 No function 008-127 Static colour CH16 128-191 Colour change 192-255 Colour fade CH17 000-255 CH16 speed (slow-fast) www.prolight.co.uk Fusion Saber User Manual...
-
Page 7: Master/Slave Mode
Manual mode: Nanu To access manual mode, press the “MENU” button on the front of the unit to show on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to choose between tILt GrEE bLuE (Pan), (Tilt), (Red 0-100%), (Green 0-100%), (Blue 0-100%), UhIt dINN Stro (White 0-100%), (Master dimmer 0-100%), or (Strobe). Press the “ENTER” button to confirm the setting and use the “UP” and “DOWN” buttons to choose between To exit out of any of the above options, press the “MENU” button. Pan/Tilt offset: To access the pan/tilt sub menu, press the “MENU” button on the front of the unit and then press and hold the “ENTER” button show on the LED display. Use the “UP” and “DOWN” buttons to choose tILt between (Pan) and (Tilt). Now press the “ENTER” button and use the “UP” and “DOWN” -127 buttons to adjust the value between . Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Fusion Saber User Manual... -
Page 8: Dmx Setup
DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Fusion Saber User Manual... -
Page 9: Line Termination
5-pin XLR (socket) 3-pin XLR (socket) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Fusion Saber User Manual... -
Page 10: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Fusion Saber User Manual... - Page 11 Fusion Saber User Manual...
- Page 12 Fusion Saber User Manual...
