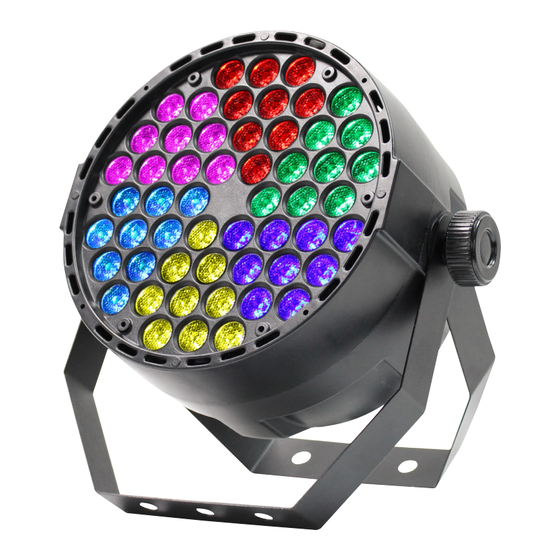

- Page 1 MidiPar Tri Plus User Manual Order codes: MidiPar Tri Plus - EQLED132...
-
Page 2: Safety Advice
NO USER SERVICEABLE PARTS. pulling the power-cable. • This lighting fixture is for professional use only - it is • Make sure that the available mains supply voltage is not designed for or suitable for household use. The between 100~240V AC, 50/60Hz. product must be installed by a qualified technician in accordance with local territory regulations. The safety of • Make sure that the power cable is never crimped or the installation is the responsibility of the installer. The damaged. Check the equipment and the power cable fixture presents risks of severe injury or death due to fire periodically. hazards, electric shock and falls. • If the equipment is dropped or damaged, disconnect the • Warning! Risk Group 2 LED product according to mains power supply immediately and have a qualified EN 62471. Do not view the light output with optical engineer inspect the equipment before operating again. instruments or any device that may concentrate the beam. • WARRANTY: One year from date of purchase. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk MidiPar Tri Plus User Manual... - Page 3 • 3-Pin XLR input/output • Fan cooled 25° - Lux FULL ON 5000 1250 Specifications 1580 98.8 63.2 3000 Power consumption 28.4 10.2 Power supply 100~240V, 50/60Hz Fuse F3A 250V 25° Dimensions 250 x 250 x 155mm Weight 1.26kg Order codes EQLED132 250mm 155mm Segment 1 Segment 4 www.prolight.co.uk MidiPar Tri Plus User Manual...
-
Page 4: Technical Specifications
4 channel mode: Operating in a DMX control mode environment Channel Value Function gives the user the greatest flexibility when it comes 000-255 Master dimmer (0-100%) to customising or creating a show. In this mode you 000-255 Red (0-100%) will be able to control each individual trait of the 000-255 Green (0-100%) fixture and each fixture independently. To access 000-255 Blue (0-100%) the DMX channel mode, press the “MENU” button d. 0 01 on the rear of the unit to show on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to select the desired d-04 d-08 d-11 DMX channel between d-23 or . Now press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk MidiPar Tri Plus User Manual... - Page 5 072-079 S1: Yellow, S2: Cyan, S3: Magenta, S4: Yellow, S5: Cyan, S6: Magenta 080-087 S1: Red, S2: Red, S3: Green, S4: Green, S5: Blue, S6: Blue 088-095 S1: Red, S2: Green, S3: Blue, S4: Yellow, S5: Cyan, S6: Magenta 096-103 S1: Red, S2: Red, S3: Green, S4: Red, S5: Red, S6: Green 104-111 S1: Green, S2: Green, S3: Blue, S4: Green, S5: Green, S6: Blue 112-119 S1: Blue, S2: Blue, S3: Red, S4: Blue, S5: Blue, S6: Red 120-127 S1: Red, S2: Blackout, S3: Green, S4: Blackout, S5: Blue, S6: Blackout 128-189 Colour change (slow-fast) 190-249 Colour fade (slow-fast) 250-255 Sound active Please note: S1 = Segment 1, please see page 3 for segment locations 000-003 No function 004-007 Auto show 1 008-011 Auto show 2 012-251 ... 252-255 Auto show 64 Please note: There is a different auto show every 4 values. 000-255 Segment macro speed (slow-fast) www.prolight.co.uk MidiPar Tri Plus User Manual...
- Page 6 072-079 S1: Yellow, S2: Cyan, S3: Magenta, S4: Yellow, S5: Cyan, S6: Magenta 080-087 S1: Red, S2: Red, S3: Green, S4: Green, S5: Blue, S6: Blue 088-095 S1: Red, S2: Green, S3: Blue, S4: Yellow, S5: Cyan, S6: Magenta 096-103 S1: Red, S2: Red, S3: Green, S4: Red, S5: Red, S6: Green 104-111 S1: Green, S2: Green, S3: Blue, S4: Green, S5: Green, S6: Blue 112-119 S1: Blue, S2: Blue, S3: Red, S4: Blue, S5: Blue, S6: Red 120-127 S1: Red, S2: Blackout, S3: Green, S4: Blackout, S5: Blue, S6: Blackout 128-189 Colour change (slow-fast) 190-249 Colour fade (slow-fast) 250-255 Sound active Please note: S1 = Segment 1, please see page 3 for segment locations 000-003 No function 004-007 Auto show 1 008-011 Auto show 2 012-251 ... 252-255 Auto show 64 Please note: There is a different auto show every 4 values. 000-255 Segment macro speed (slow-fast) www.prolight.co.uk MidiPar Tri Plus User Manual...
-
Page 7: Master/Slave Mode
To exit out of any of the above options, 000-010 No function press the “MENU” button. 011-255 Segment 4 Blue (0-100%) Please ensure that all slave units are set to the 000-010 No function same DMX channel mode as the master unit. 011-255 Segment 5 Red (0-100%) 000-010 No function 011-255 Segment 5 Green (0-100%) 000-010 No function 011-255 Segment 5 Blue (0-100%) 000-010 No function 011-255 Segment 6 Red (0-100%) 000-010 No function 011-255 Segment 6 Green (0-100%) 000-010 No function 011-255 Segment 6 Blue (0-100%) 000-255 Strobe (slow-fast) www.prolight.co.uk MidiPar Tri Plus User Manual... - Page 8 A5. 0 1 A5. 0 9 sound sensitivity between ~ . Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. Auto modes: A6. 0 1 To access the auto modes, press the “MENU” button on the rear of the unit to show on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to select A6. 0 1 A6. 6 4 the desired auto program between ~ . Press the “ENTER” button and use the “UP” and A6. 0 1 A6. 3 2 “DOWN” buttons to adjust the program speed between ~ . Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk MidiPar Tri Plus User Manual...
-
Page 9: Dmx Setup
DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk MidiPar Tri Plus User Manual... -
Page 10: Line Termination
5-pin XLR (socket) 3-pin XLR (socket) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk MidiPar Tri Plus User Manual... - Page 11 Operating instructions & WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk MidiPar Tri Plus User Manual...
- Page 12 MidiPar Tri Plus User Manual...
