- Page 1 Fusion 300FX Zoom Wash User Manual Order codes: EQLED077...
-
Page 2: Safety Advice
Please note: These fixtures are intended for stage lighting and entertainment applications only, and are not intended for extended periods of use, including but not limited to house-light, industrial or architectural applications and should only be operated with short duty cycles. www.prolight.co.uk Fusion 300FX Zoom Wash User Manual... - Page 3 CAUTION! The maximum ambient temperature (Ta) of 40° must not be exceeded. CAUTION! If the lens gets damaged ie. cracks or deep scratches so the output is impaired then it must be replaced. www.prolight.co.uk Fusion 300FX Zoom Wash User Manual...
-
Page 4: Product Overview

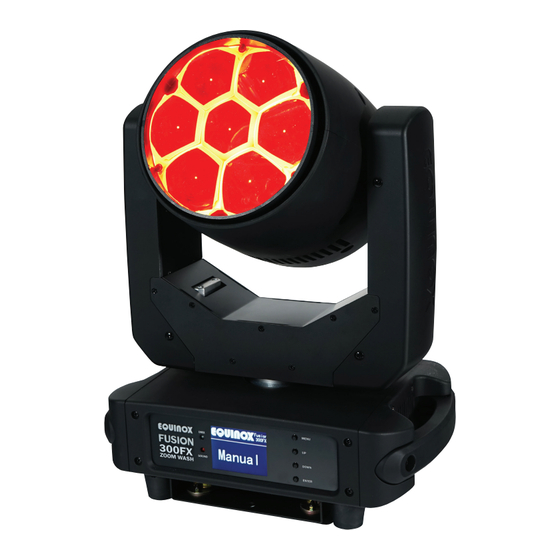

Fusion 300FX Zoom Wash The compact Fusion 300FX Zoom Wash features 7 x 40W quad-colour LEDs (RGBW) outputting gentle pastel tones to rich saturated hues. The motorised zoom from a narrow 5 degree beam angle to a wider 40 degree paired with front-lens rotation, allows the user to create superb mid-air beam effects along with wide washes of colour. -
Page 5: Technical Specifications
Technical specifications 160mm 260mm 85mm 185mm 310mm 200mm www.prolight.co.uk Fusion 300FX Zoom Wash User Manual... - Page 6 2 x omega clamps, & 1 x power cable 02 - Function buttons 05 - Power switch 08 - Fuse F4A 250V 03 - 3-Pin XLR input 06 - PowerTwist input 09 - Carry handles www.prolight.co.uk Fusion 300FX Zoom Wash User Manual...
-
Page 7: Installation
The installation should be checked annually by a qualified person. The Equinox Fusion 300FX Zoom Wash can be operated in a number of mounting positions as shown in the diagram above, hanging upside-down from the ceiling or truss, mounting sideways on truss or stood upright on a flat level surface. - Page 8 4. Mount the fixture onto your truss system via the clamps and tighten to ensure secure. 5. Pull the safety cable through the safety cable holes located on the metal base plate on the underside of the fixture and around the truss. www.prolight.co.uk Fusion 300FX Zoom Wash User Manual...
- Page 9 The LCD control panel situated on the front of the fixture allows the user to access the menu system to adjust the fixtures settings. When the unit has been powered on the display will show “Equinox Fusion 300FX Zoom Wash”, “Motor Reset... Please Wait...” whilst the unit performs its motor reset.
- Page 10 “DOWN” buttons to set the required show mode. Press the “ENTER” button to confirm the setting. Show 3 Show 7 and 8 are forward facing show modes. Show 4 Show 5 Show 6 Show 7 Show 8 www.prolight.co.uk Fusion 300FX Zoom Wash User Manual...
-
Page 11: Master/Slave Mode
“Sound Sensitivity” on the LCD Default 080 display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to select between “000” and “100”. Press the “ENTER” button to confirm the setting. www.prolight.co.uk Fusion 300FX Zoom Wash User Manual... - Page 12 000-255 “000” - “255”. Press the “ENTER” button to confirm the setting. PT Spd 000-255 Zoom 000-255 Zoom Rotation 000-255 Dimmer 000-255 Strobe 000-255 000-255 Green 000-255 Blue 000-255 White 000-255 000-255 Default www.prolight.co.uk Fusion 300FX Zoom Wash User Manual...
- Page 13 “DMX Fail” on the LCD display. Now press the “ENTER” button and use the Show mode “UP” and “DOWN” buttons to choose between “Blackout”, “Hold” or “Show mode”. Press the “ENTER” button to confirm the setting. www.prolight.co.uk Fusion 300FX Zoom Wash User Manual...
- Page 14 “UP” and “DOWN” buttons to select “Invert”.Press the “ENTER” button and use the “UP” and “DOWN” buttons to select between “On”, “Off” and “Auto”. Press the “ENTER” button to confirm the setting. www.prolight.co.uk Fusion 300FX Zoom Wash User Manual...
- Page 15 Tilt limit - Tilt Start/End Point Adjustment Focus Limit - Focus Start/End Point Adjustment White 000-255 Red - Red Brightness Adjustment Green - Green Brightness Adjustment Blue - Blue Brightness Adjustment White - White Brightness Adjustment www.prolight.co.uk Fusion 300FX Zoom Wash User Manual...
-
Page 16: System Information
“Factory Reset” on the LCD display. Press the “ENTER” button and use the “UP” and “DOWN” buttons to select between “Yes” and “No”. Press the “ENTER” button to perform the factory reset when yes is selected. www.prolight.co.uk Fusion 300FX Zoom Wash User Manual... - Page 17 Sound sensitivity (low-high) 000-255 Blue dimmer (0-100%) 000-255 White dimmer (0-100%) No function 001-027 2800K 028-055 3200K 056-083 3600K 084-111 4500K CH10 112-139 5000K 140-167 5600K 168-195 6200K 196-223 6800K 224-251 7500K 252-255 8500K www.prolight.co.uk Fusion 300FX Zoom Wash User Manual...
- Page 18 Rotate CCW (slow-fast) 023-031 Master dimmer (0-100%) 000-004 No function 005-255 Strobe (slow-fast) CH10 000-255 Red dimmer (0-100%) CH11 000-255 Green dimmer (0-100%) CH12 000-255 Blue dimmer (0-100%) CH13 000-255 White dimmer (0-100%) www.prolight.co.uk Fusion 300FX Zoom Wash User Manual...
-
Page 19: Dmx Setup
3-Pin: CABL10 – 2m CABL11 – 5m CABL12 – 10m 5-Pin: CABL185 – 2m CABL187 – 5m CABL188 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Fusion 300FX Zoom Wash User Manual... -
Page 20: Line Termination
3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Fusion 300FX Zoom Wash User Manual... - Page 21 Please note: Caution should be used when power linking other fixtures to the Fusion 300FX Zoom Wash as the power consumption of other fixtures will vary. Fixtures fitted with lamps often require 2/3 times more current on startup, these may require their own power source.
-
Page 22: Weee Notice
