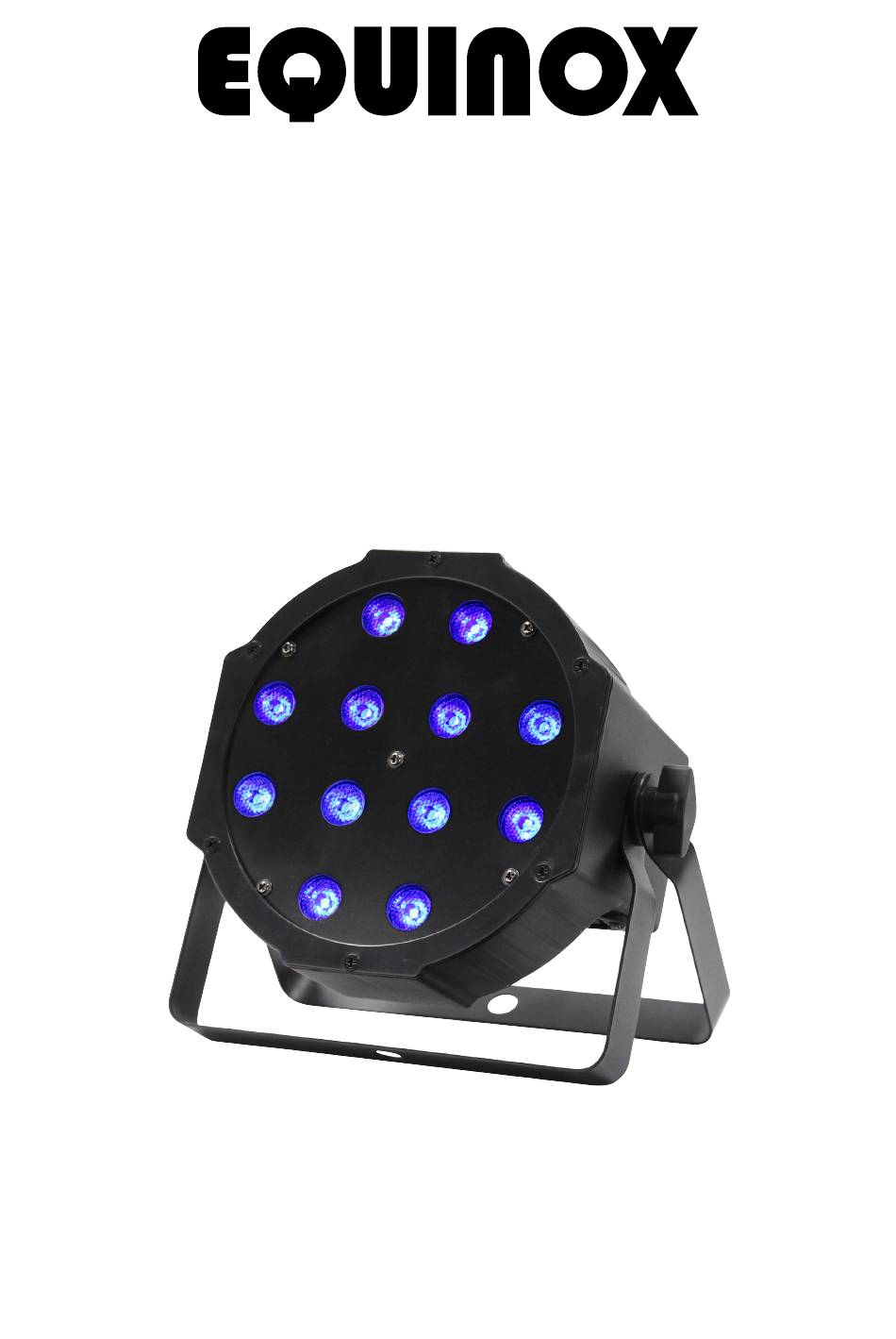

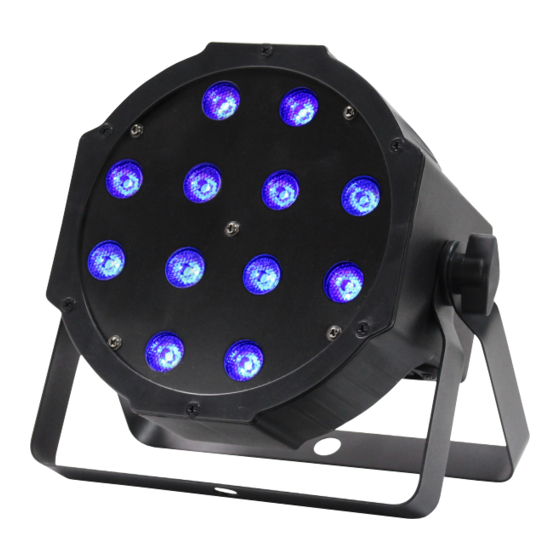

- Page 1 MaxiPar Tri User Manual Order code: EQLED111...
-
Page 2: Safety Advice
• Only use the equipment indoors. • If your product fails to function correctly, stop use • Do not expose to flammable sources, liquids or gases. immediately. Pack the unit securely (preferably in the original packing material), and return it to your Pro Light • Always disconnect the power from the mains when dealer for service. equipment is not in use or before cleaning! Only handle the power-cable by the plug. Never pull out the plug by • Only use fuses of same type and rating. pulling the power-cable. • Repairs, servicing and power connection must only be • Make sure that the available voltage is between carried out by a qualified technician. THIS UNIT CONTAINS 100~240V, 50/60Hz. NO USER SERVICEABLE PARTS. • Make sure that the power cable is never crimped or • WARRANTY: One year from date of purchase. damaged. Check the equipment and the power cable periodically. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk MaxiPar Tri User Manual... - Page 3 POWER OUTPUT MAXIPAR MODE DOWN ENTER DMX INPUT POWER INPUT: 100-240V~50/60Hz FUSE: F1A www.prolight.co.uk 01 - Bracket 05 - Microphone In the box: 1 x fixture, 02 - Bracket tightening knobs 06 - DMX input socket 1 x power cable & 03 - LED display 07 - DMX output socket 09 - IEC power output socket 1 x user manual 04 - Function buttons 08 - IEC power input socket 10 - Fuse F1A 250V www.prolight.co.uk MaxiPar Tri User Manual...
- Page 4 Sound active (when CH6 is 001-255) 000-255 Speed (slow-fast)/Sensitivity (low-high) RGB colour mix mode: In this mode you can set the fixture to any colour and any brightness. Pr-- To access the colour mix mode press “MODE” until the display shows on the LED display. Pr00 Press the “ENTER” button and use the “UP” and “DOWN” buttons to select r--- Press the “ENTER” button to show with 3 digits after on the LED display. Press the “ENTER” button to confirm. The represents red, = green and = blue. The 3 digits after are the brightness setting from For example: If you set all to zero, your unit will have no LEDs lit up (blackout). r000 r255 If you set to and and to zero, your unit will show only red LEDs. Press the “ENTER” button to confirm the setting and move to the next colour. To exit out of any of the above options, press the “MODE” button. www.prolight.co.uk MaxiPar Tri User Manual...
- Page 5 SLav To set the other units in slave mode, press the “MODE” button on the rear of the unit to show on the LED display and press the “ENTER” button to confirm the setting. The units will now run in sequence with the master unit. To exit out of any of the above options, press the “MODE” button. Menu system Built-in program mode Pr00 - RGB colour mix mode Pr00 - Pr13 Pr01 - R Pr02 - G Pr03 - B pr04 - RG Pr05 - RB Pr06 - GB Pr07 - RGB Pr08 - Colour fade in-out (3 colours) Pr09 - Colour fade in-out (7 colours) Pr10 - Colour fade Pr11 - Colour fade in-out (7 colours) & colour fade Pr12 - Colour change (3 colours) Pr13 - Colour change (7 colours) Static colour mode r000~r255 R G000~G255 G b000~b255 B Slave mode SLAV Sound active mode SOUd Sens 000~ 100 DMX mode Address setting A001~A512 www.prolight.co.uk MaxiPar Tri User Manual...
-
Page 6: Dmx Setup
DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk MaxiPar Tri User Manual... - Page 7 5-pin XLR (socket) 3-pin XLR (socket) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk MaxiPar Tri User Manual...
-
Page 8: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk MaxiPar Tri User Manual...
