Equinox Systems Double Decker User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

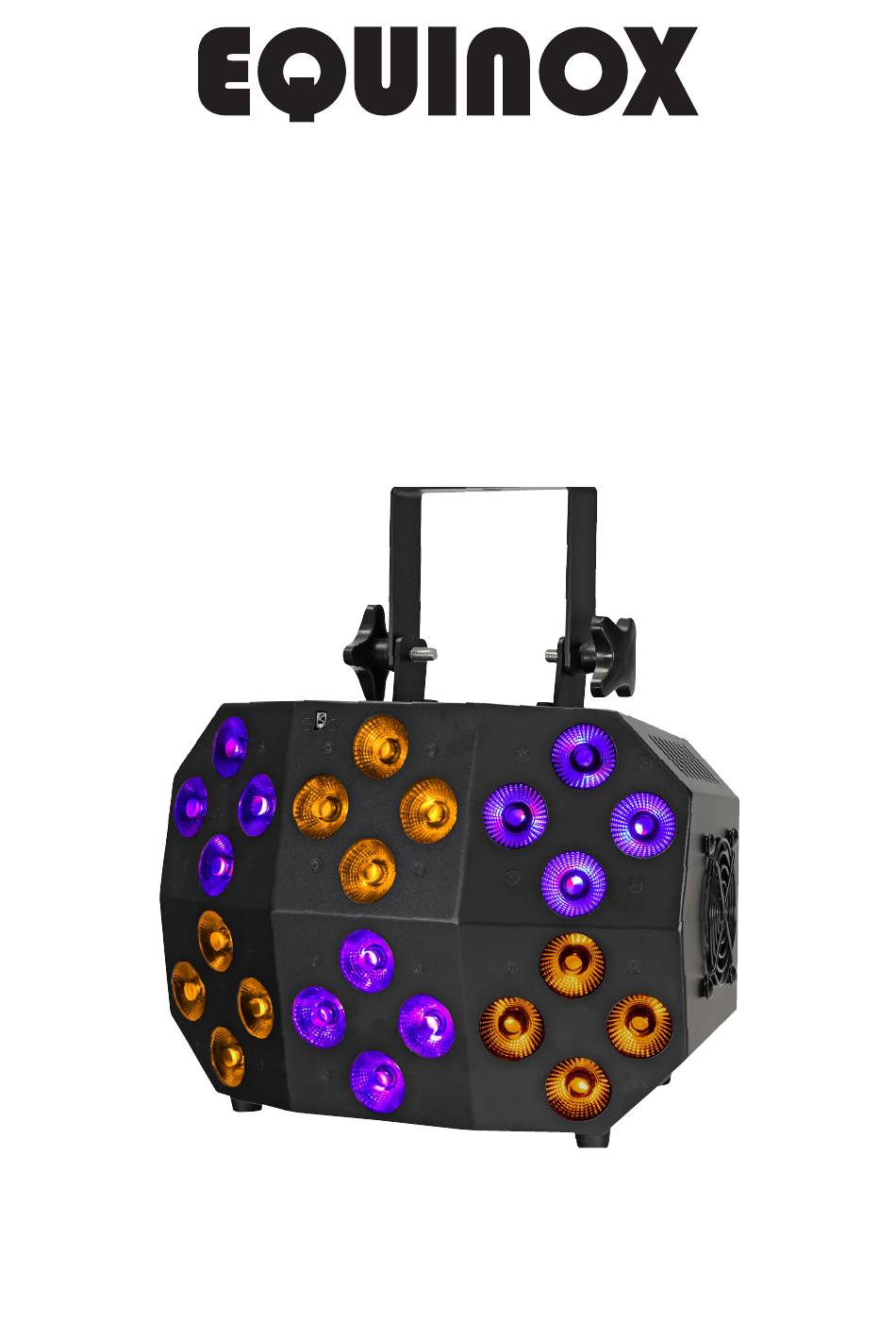

Double Decker
User Manual
Order code: EQLED452

Advertisement

loading
Need help?

Need help?

Do you have a question about the Double Decker and is the answer not in the manual?

Questions and answers

Related Manuals for Equinox Systems Double Decker

Summary of Contents for Equinox Systems Double Decker

  • Page 1 Double Decker User Manual Order code: EQLED452...

  • Page 2: Safety Advice

    Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. • Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Double Decker User Manual...
  • Page 3 Double Decker The Double Decker is a super bright and versatile wash effect featuring 24 six-colour LEDs flooding venues in vibrant satu- rated colours and subtle pastel hues. The unit features 6 zone control perfect for colour chases and eye-candy effects whilst advanced primary and secondary programming synchronisation allows fixtures to mirror each other.

  • Page 4: Technical Specifications

    10 - 3-Pin DMX output 1 x power cable & 03 - LED display 07 - PowerTwist TR1 output 11 - Safety eye 1 IR remote 04 - Function buttons 08 - Fuse T5A 250V 12 - IR receiver www.prolight.co.uk Double Decker User Manual...

  • Page 5: Installation

    The installation should be checked annually by a qualified person. The Equinox Double Decker can be operated in a number of mounting positions as shown in the dia- gram above, hanging upside-down from the ceiling or truss, mounting sideways on truss or stood upright on a flat level surface.
  • Page 6 2. Mount the fixture onto your truss system via the clamps and tighten to ensure it is secure. 3. Pull the safety cable through the safety eye located on the back of the fixture and around the truss. www.prolight.co.uk Double Decker User Manual...

  • Page 7: Sound Sensitivity

    F F u 0 0 0 u 2 5 5 F 0 0 0 F 2 5 5 V E r x x x Software version r S E t Factory reset y E S www.prolight.co.uk Double Decker User Manual...

  • Page 8: Dmx Channel Mode

    000-255 White dimmer (0-100%) 138-145 Auto Program 17 000-255 Amber dimmer (0-100%) 146-153 Auto Programs 1-17 (cycle) 000-255 UV dimmer (0-100%) 154- 161 Sound Program 1 162-169 Sound Program 2 170-177 Sound Program 3 178-185 Sound Program 4 www.prolight.co.uk Double Decker User Manual...
  • Page 9 Sound Program 3 178-185 Sound Program 4 186-193 Sound Program 5 194-201 Sound Program 6 202-209 Sound Program 7 210-217 Sound Program 8 218-225 Sound Program 9 226-233 Sound Program 10 234-241 Sound Program 11 www.prolight.co.uk Double Decker User Manual...
  • Page 10 000-255 Master dimmer (0-100%) 000-009 No function 010-255 Strobe speed (slow-fast) 000-255 Red Zone 1 dimmer (0-100%) 000-255 Green Zone 1 dimmer (0-100%) 000-255 Blue Zone 1 dimmer (0-100%) 000-255 White Zone 1 dimmer (0-100%) www.prolight.co.uk Double Decker User Manual...
  • Page 11 LED display. Now press the “ENTER” button and use the d000 d100 “UP” and “DOWN” buttons to choose between (LED off) to (full brightness). Press the “ENTER” button to confirm the setting. www.prolight.co.uk Double Decker User Manual...
  • Page 12 LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to choose between Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Double Decker User Manual...

  • Page 13: Ir Remote Functions

    ‘+’ and ‘-’ buttons to adjust the – Speed program speed 08 - Adjusts the built-in programs and built-in program speed, sound program, flash speed for static colour, brightness of static colour www.prolight.co.uk Double Decker User Manual...

  • Page 14: Dmx Setup

    Please quote: 3-Pin: CABL10 – 2m CABL11 – 5m CABL12 – 10m 5-Pin: CABL185 – 2m CABL187 – 5m CABL188 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Double Decker User Manual...

  • Page 15: Line Termination

    5-pin XLR (male) 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Double Decker User Manual...
  • Page 16 Please note: Caution should be used when power linking other fixtures to the Double Decker as the power consumption of other fixtures will vary. Fixtures fitted with lamps often require 2/3 times more current on startup, these may require their own power source.

This manual is also suitable for:

Eqled452
