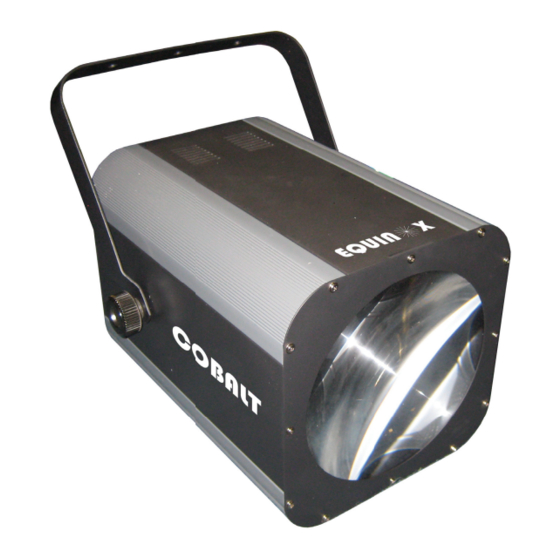

COBALT
order code: EQLED23
user manual
w w w . p r o l i g h t . c o . u k

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COBALT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Equinox Systems COBALT

Summary of Contents for Equinox Systems COBALT

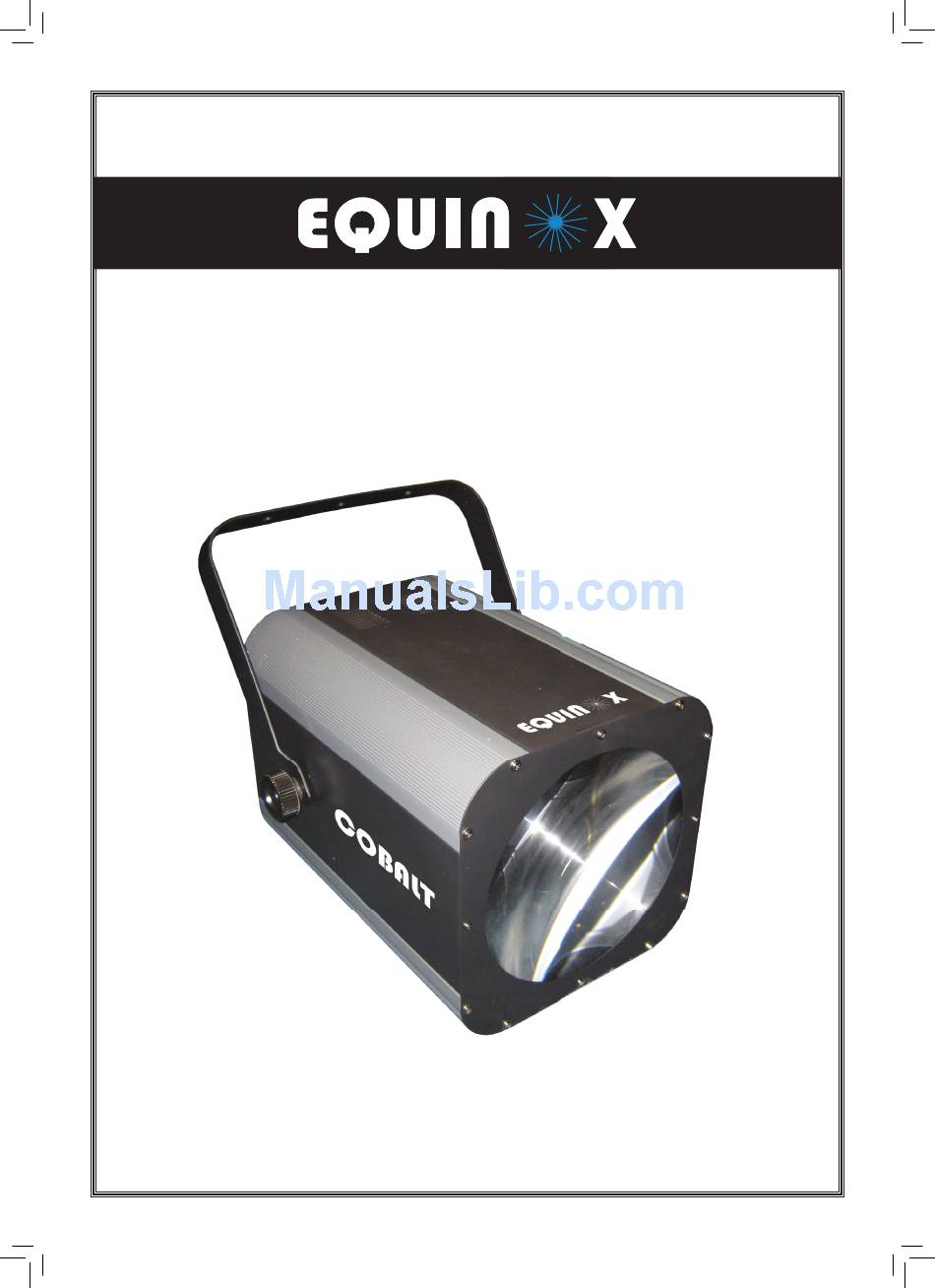

  • Page 1 COBALT order code: EQLED23 user manual w w w . p r o l i g h t . c o . u k...

  • Page 2: Safety Instructions

    Equinox Cobalt Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this...

  • Page 3: Operating Determinations

    Equinox Cobalt Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •...

  • Page 4: Technical Specifications

    Equinox Cobalt Technical specifications You should find inside the Equinox carton the following items: 1, Cobalt Unit 2, Power cable 3, Instruction manual Technical Specifications: Voltage: AC 230 ~ 50Hz 156 Ultra bright 10mm LED’s (R: 48, G: 36, B:36, W:36)
  • Page 5 Cobalt DMX Tables DMX table: Channel 2 Channel 3 Channel 4 Channel 5 Channel 6 Channel 1 000-010 Dimmer 0-255 - Red 0-255 - Green 0-255 - Blue 0-255 - White 011-024 Programme 1 025-039 Programme 2 040-054 Programme 3...

  • Page 6: Dmx Control Mode

    Equinox Cobalt DMX control mode DMX Control Mode Operating in a DMX control mode environment gives the user the greatest flexibility when it comes to customising or creating a show. In this mode you will be able to control each individual trait of the fixture and each fixture independently.
  • Page 7 DATA Cable (DMX cable) requirements (for DMX operation): • The Equinox Cobalt can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output (figure 1).
  • Page 8 Equinox Cobalt DMX Set up Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
  • Page 9 Equinox Cobalt Dip Switch Reference Chart DMX Dip Switch Quick Reference Chart Dip Switch Position Dip Switch position DMX Address...
