- Page 1 Fusion Reflecta User Manual Order code: EQLED079...
-
Page 2: Safety Advice

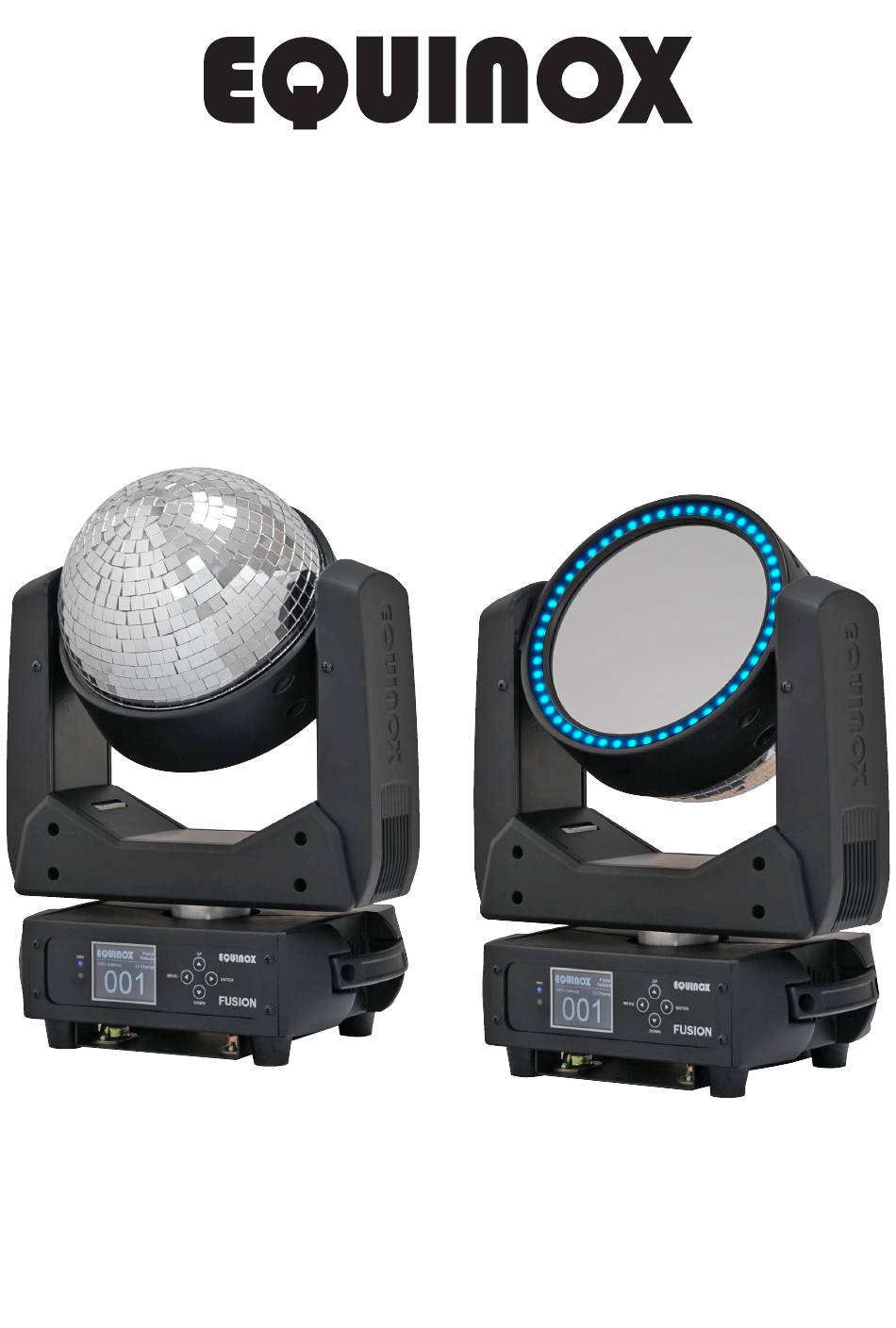

Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Fusion Reflecta User Manual... - Page 3 Fusion Reflecta The Fusion Reflecta is a versatile, multi-application moving head that combines a flat reflective mirror, a half mirror ball, and an LED ring to enhance any light show. It’s not just a one-trick pony but adds an extra dimension to your lighting setup.
-
Page 4: Technical Specifications
Technical specifications 217mm 99mm 304mm 293mm 183mm 165mm www.prolight.co.uk Fusion Reflecta User Manual... - Page 5 2 x omega clamps, 03 - 3-Pin DMX input 07 - Fuse F2A 250V 09 - PowerTwist TR1 output & 1 x power cable 04 - 3-Pin DMX output 08 - PowerTwist TR1 input 10 - Carry handles www.prolight.co.uk Fusion Reflecta User Manual...
-
Page 6: Installation
The installation should be checked annually by a qualified person. The Equinox Fusion Reflecta can be operated in a number of mounting positions as shown in the diagram above, hanging upside-down from the ceiling or truss, mounting sideways on truss or stood upright on a flat level surface. - Page 7 4. Mount the fixture onto your truss system via the clamps and tighten to ensure secure. 5. Pull the safety cable through the safety cable holes located on the metal base plate on the underside of the fixture and around the truss. www.prolight.co.uk Fusion Reflecta User Manual...
- Page 8 The LCD control panel situated on the front of the fixture allows the user to access the menu system to adjust the fixtures settings. When the unit has been powered on the display will show “Equinox Fusion Reflecta”, “Motor Reset... Please Wait...” whilst the unit performs its motor reset. The fixture will then return to its home screen.
- Page 9 Now press the “ENTER” button and use the “UP” and “DOWN” buttons to set the required DMX channel. Press the “ENTER” button to 8 Channel confirm the setting. 12 Channel 16 Channel 85 Channel 88 Channel www.prolight.co.uk Fusion Reflecta User Manual...
- Page 10 “ENTER” button and use the “UP” and “DOWN” buttons to show “Pan Invert” on the LCD display. Press the “ENTER” button and use the “UP” and “DOWN” buttons to select between “No” and “Yes”. Press the “ENTER” button to confirm the setting. www.prolight.co.uk Fusion Reflecta User Manual...
- Page 11 Press the “ENTER” button and use the “UP” and “DOWN” buttons to select “Display Invert”.Press the “ENTER” button and use the “UP” and “DOWN” buttons to select between “No” and “Yes”. Press the “ENTER” button to confirm the setting. www.prolight.co.uk Fusion Reflecta User Manual...
-
Page 12: System Information
“ENTER” button and use the “UP” and Total Run Time “DOWN” buttons to show “System Information” xxxxxH on the LCD display The unit will now display the fixtures current run time, total run time, Software temperature and software version. Version Vx.x www.prolight.co.uk Fusion Reflecta User Manual... - Page 13 “Factory Reset” on the LCD display. Press the “ENTER” button and use the “UP” and “DOWN” buttons to select between “Yes” and “No”. Press the “ENTER” button to perform the factory reset when yes is selected. www.prolight.co.uk Fusion Reflecta User Manual...
- Page 14 Pink 082-093 Yellow 094-105 Magenta 106-117 Amber 118-129 Lime Green 130-141 Pastel Pink 142-153 Light Pink 154-165 Medium Yellow 166-177 Peach 178-189 Purple 190-201 Light Purple 202-213 Violet 214-225 Pink 226-237 Turquoise 238-255 Hot Pink www.prolight.co.uk Fusion Reflecta User Manual...
- Page 15 Ring Macro Program Speed/Direction 000-124 Anti-clockwise (fast-slow) 125-130 Macro stop 131-255 Clockwise (slow-fast) Ring 000-255 Master dimmer (0-100%) 000-009 Blackout 010-253 Strobe (slow-fast) 254-255 Ring on 000-255 Red dimmer (0-100%) 000-255 Green dimmer (0-100%) 000-255 Blue dimmer (0-100%) www.prolight.co.uk Fusion Reflecta User Manual...
- Page 16 Blue dimmer (0-100%) - Pixel 23 & 24 000-255 Red dimmer (0-100%) - Pixel 25 & 26 000-255 Green dimmer (0-100%) - Pixel 25 & 26 000-255 Blue dimmer (0-100%) - Pixel 25 & 26 www.prolight.co.uk Fusion Reflecta User Manual...
- Page 17 Red dimmer (0-100%) - Pixel 49 & 50 000-255 Green dimmer (0-100%) - Pixel 49 & 50 000-255 Blue dimmer (0-100%) - Pixel 49 & 50 Motor Reset 000-200 No function 201-255 Motor reset (hold 5s) www.prolight.co.uk Fusion Reflecta User Manual...
-
Page 18: Dmx Setup
Please quote: 3-Pin: CABL10 – 2m CABL11 – 5m CABL12 – 10m 5-Pin: CABL185 – 2m CABL187 – 5m CABL188 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Fusion Reflecta User Manual... -
Page 19: Line Termination
5-pin XLR (male) 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Fusion Reflecta User Manual... - Page 20 Please note: Caution should be used when power linking other fixtures to the Fusion Reflecta as the power consumption of other fixtures will vary. Fixtures fitted with lamps often require 2/3 times more current on startup, these may require their own power source.
-
Page 21: Weee Notice
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Fusion Reflecta User Manual...
