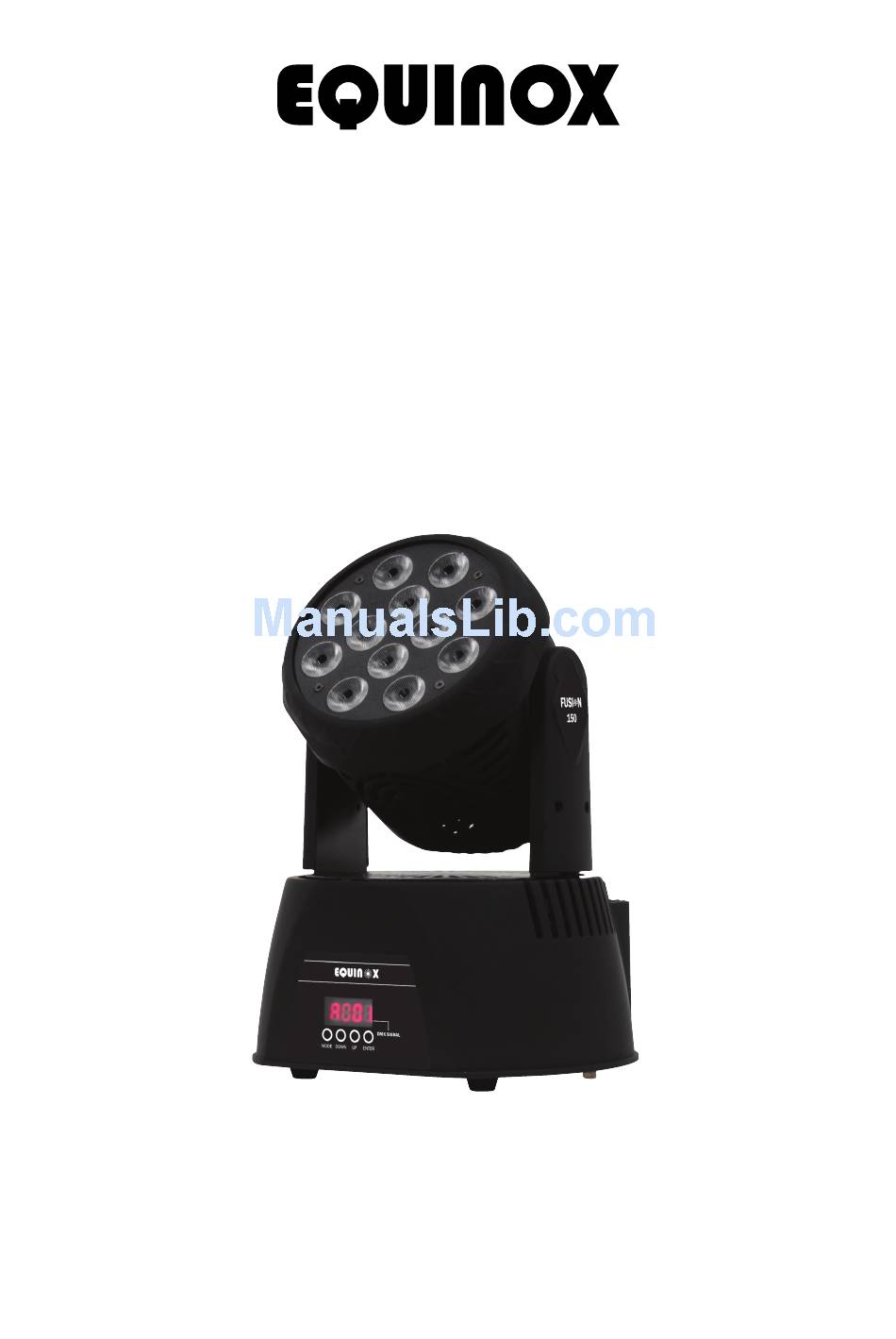

- Page 1 Fusion 150 12 x 12W Moving Head User Manual Order code: EQLED005...
-
Page 2: Safety Advice
• Only use the equipment indoors. • If your product fails to function correctly, stop use • Do not expose to flammable sources, liquids or gases. immediately. Pack the unit securely (preferably in the original packing material), and return it to your Pro Light • Always disconnect the power from the mains when dealer for service. equipment is not in use or before cleaning! Only handle the power-cable by the plug. Never pull out the plug by • Only use fuses of same type and rating. pulling the power-cable. • Repairs, servicing and power connection must only be • Make sure that the available voltage is between carried out by a qualified technician. THIS UNIT CONTAINS 100~240V, 50/60Hz. NO USER SERVICEABLE PARTS. • Make sure that the power cable is never crimped or • WARRANTY: One year from date of purchase. damaged. Check the equipment and the power cable periodically. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Fusion 150 User Manual... - Page 3 Housing 12 x 12W quad colour LEDs, the Equinox Fusion 150 moving head wash gives smooth colour mixing from rich saturated hues to subtle pastel shades. The compact and lightweight design allows for easy transportation and installation. The 4 push button LED menu allows for easy access to the functions including DMX, auto, sound active and master/slave modes. Loaded with advanced internal programming by Equinox the sound active and auto modes deliver stunning light shows. • 12 x 12W quad-colour LEDs • Beam angle: 40° • Pan: 540°, Tilt: 180° • DMX channels: 1, 4, 7 or 10 selectable • Auto, sound active, strobe and master slave modes • 0-100% dimming • 4 push button menu with LED display • IEC in/out sockets • 3-pin XLR in/out socket • Fan cooled • Supplied with hanging bracket 45° - Lux Specifications Fusion 150 Power consumption 180W Power supply 100~240V, 50/60Hz 45° Dimensions 288 x 222 x 190mm Weight 3.6kg Order code EQLED005 222mm 190mm www.prolight.co.uk Fusion 150 User Manual...
-
Page 4: Technical Specifications
Technical specifications POWER IN/OUT DMX IN DMX OUT MENU DOWN ENTER In the box: 1 x fixture, 01 - LED display 05 - Enter button 09 - DMX in 1 x power cable, 02 - Menu button 06 - Power out socket 10 - On/off switch hanging bracket & 03 - Down button 07 - Power in socket 11 - DMX out 1 x user manual 04 - Up button 08 - Fuse 5A 250V www.prolight.co.uk Fusion 150 User Manual... -
Page 5: Operating Instructions
Operating instructions DMX channel selection: Operating in DMX control mode gives the user the greatest flexibility when it comes to customising or creating a show. In this mode you will be able to control each individual trait of the fixture and each fixture independently. CHnd To access the DMX channel mode, press the “MODE” button on the font of the unit to show on the LED display. Now press the “ENTER” button and the channel mode will be displayed. Use the “UP” and “DOWN” buttons to choose one of the 1, 4, 7, or 10 DMX channel modes. Press the Addr “ENTER” button again, this will set the DMX channel. The display will now display To exit out of any of the above options, press the “MODE” button. 1 channel mode: Channel Value Function Blackout 8-127 Auto run (AT01) 128-255 Sound active (128: low sensitivity, 255: high sensitivity) www.prolight.co.uk Fusion 150 User Manual... - Page 6 Pastle green (green & white) 105-114 Pastle red (red & white) 115-124 Pastle blue (blue & white) 125-134 Pastle pink (red, blue & white) 135-144 Warm white (orange & white) 145-150 Blackout 151-200 Colour fade (151: slow fade, 200: fast fade) 201-255 Colour change (201: slow change, 255: fast change) 7 channel mode: Channel Value Function 0-255 Pan adjustment 0-255 Tilt adjustment 0-255 0-100% dimming (0: low brightness, 255: high brightness) 0-255 Red (0: low brightness, 255: high brightness) 0-255 Green (0: low brightness, 255: high brightness) 0-255 Blue (0: low brightness, 255: high brightness) 0-255 White (0: low brightness, 255: high brightness) www.prolight.co.uk Fusion 150 User Manual...
- Page 7 105-144 Pastle red (red & white) 115-124 Pastle blue (blue & white) 125-134 Pastle pink (red, blue & white) 135-144 Warm white (orange & white) 145-150 Blackout 151-200 Colour fade (151: slow fade, 200: fast fade) 201-255 Colour change (201: slow change, 255: fast change) 0-127 Sound control via controller is OFF 128-255 Sound control via controller is ON Changing the address: Addr To access the address menu, press the “MODE” button on the front of the unit to show A001. is displayed. Press the “ENTER” button, the unit should now display Use the “UP” and “DOWN” A001 A512 buttons to select through . Press the “ENTER” button again, this will set the address. To exit out of any of the above options, press the “MODE” button. www.prolight.co.uk Fusion 150 User Manual...
- Page 8 . Press the “ENTER” button again, CL01-CL15 Fade. this will enable you to choose between or Fade When using the function press the “ENTER” button and use the “UP” and “DOWN” buttons SP01-SP31. to select the desired fade speed between Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MODE” button. Other settings: PAn (X motor positive/negative move set) YES/NO tilt (Y motor positive/invert move set) YES/NO Led (digital display ON/OFF set) ON/OFF diSp (digital display invert) YES/NO test (function test) HoUr (total fixture run time) rSEt (reset) www.prolight.co.uk Fusion 150 User Manual...
-
Page 9: Dmx Setup
DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m Note: DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Fusion 150 User Manual... - Page 10 5-pin XLR (socket) 3-pin XLR (socket) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Fusion 150 User Manual...
-
Page 11: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Fusion 150 User Manual... - Page 12 Fusion 150 User Manual...
