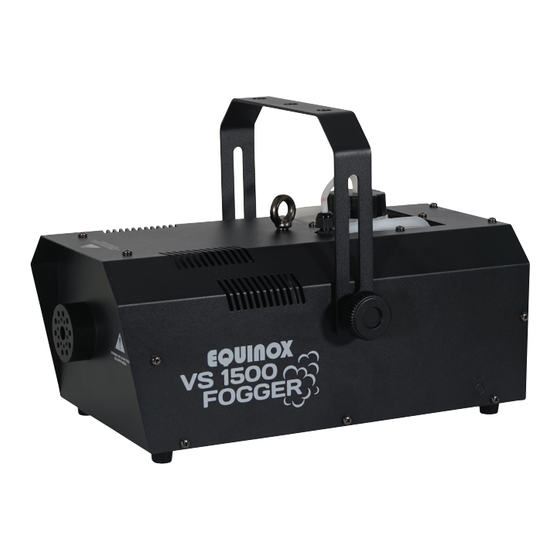

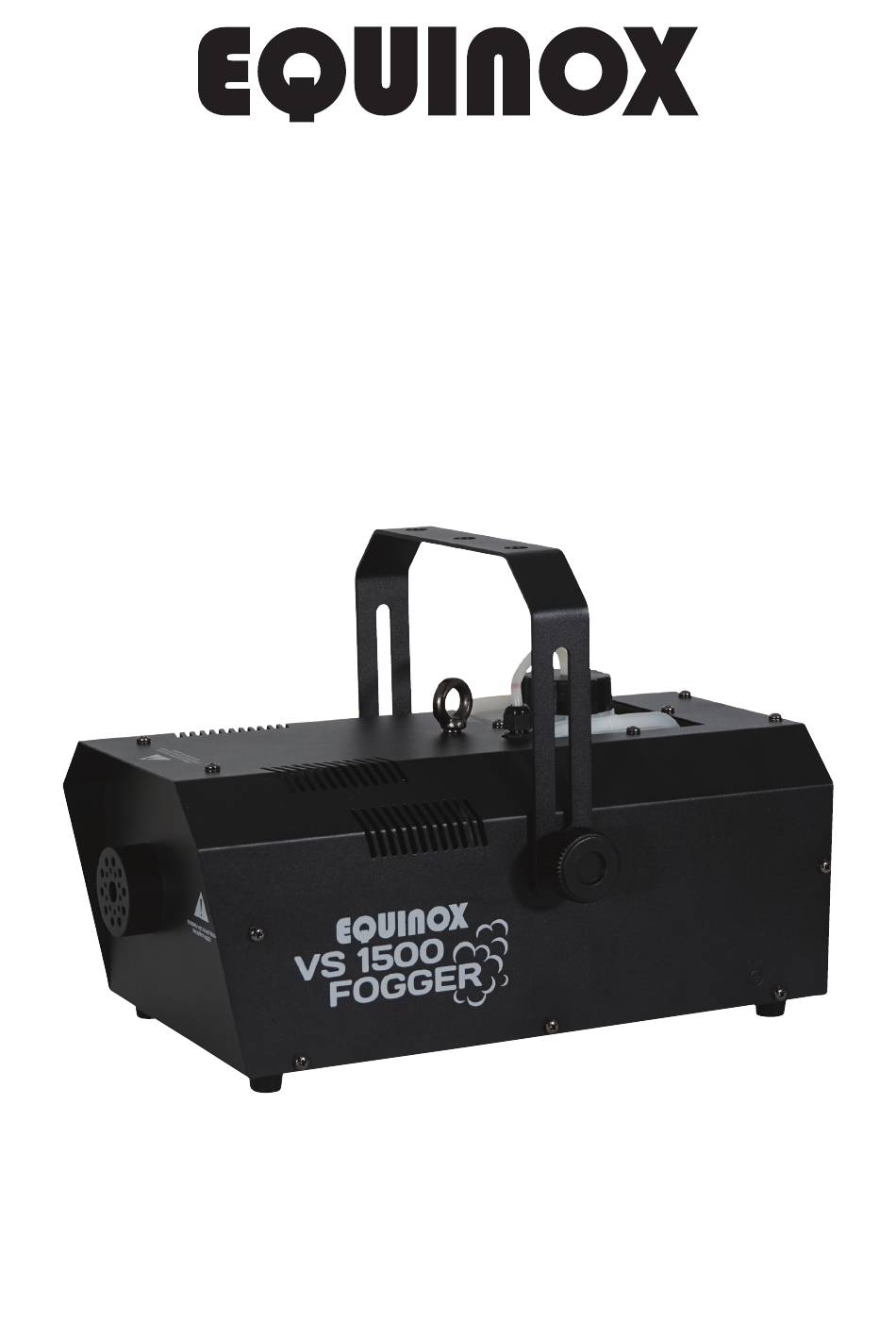

- Page 1 VS 1500 Fogger User Manual Order code: EQLED363...
-
Page 2: Safety Advice
Operate the unit only after you have familiarised yourself with its functions. Do not permit operation by persons not qualified for operating the unit and always drain the tank and use the original packaging if the unit is to be transported. www.prolight.co.uk VS 1500 Fogger User Manual... - Page 3 VS 1500 Fogger The high performance VS 1500 fogger has been designed to output high volumes of fog via the supplied wired or wireless remotes, or via DMX. Its robust design makes it ideal for use in a variety of environments including nightclubs, stage shows and theatres.
- Page 4 1 x 11 - DMX dipswitches** - The LED above the dipswitches wireless remote 12 - 3-Pin DMX input illuminates when a DMX signal 1 x IEC cable is detected 13 - 3-Pin DMX output www.prolight.co.uk VS 1500 Fogger User Manual...
-
Page 5: Operation
DANGER TO LIFE! Disconnect from the mains before starting maintenance Only use quality fog fluids recommended by your dealer. You must not use substances which are classified as ‘DANGEROUS WORKING MATERIALS’ or ‘FLAMMABLE FLUIDS’. www.prolight.co.uk VS 1500 Fogger User Manual... -
Page 6: Dmx Mode
To set the DMX address please see the example Switch 1 2 4 8 16 32 64 128 256 table below: (Note: 1 = On, 0 = Off) value Dipswitches Address ........www.prolight.co.uk VS 1500 Fogger User Manual... -
Page 7: Troubleshooting
Check fuse. If using wireless, check batteries. Fluid indicator states no fog, Try resetting the fog machine by turning the power off, and then on again. but the container if full Possible faulty part. Contact reseller for further instructions. www.prolight.co.uk VS 1500 Fogger User Manual... -
Page 8: Dmx Setup
Please quote: 3-Pin: CABL10 – 2m CABL11 – 5m CABL12 – 10m 5-Pin: CABL185 – 2m CABL187 – 5m CABL188 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk VS 1500 Fogger User Manual... -
Page 9: Line Termination
5-pin XLR (male) 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk VS 1500 Fogger User Manual... -
Page 10: Weee Notice
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk VS 1500 Fogger User Manual... - Page 11 VS 1500 Fogger User Manual...
