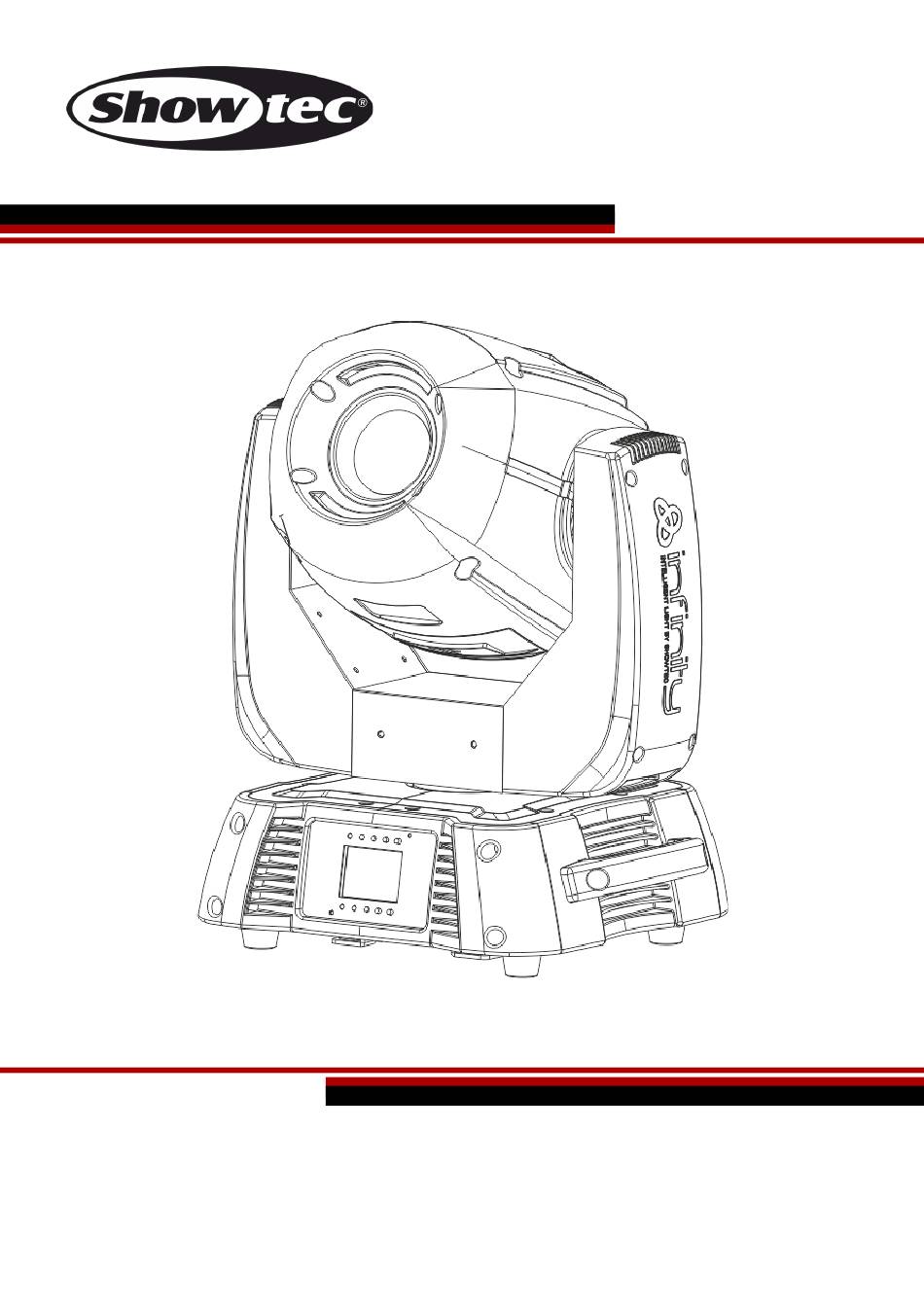

- Page 1 MANUAL ENGLISH Infinity iS-100 Ordercode: 41500 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Infinity iS-100 Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Return Procedure ................................6 Claims ....................................6 Description of the device ..............................7 Overview ..................................8 Backside ..................................8 Installation ................................... 9 Set Up and Operation ............................... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● Showtec Infinity iS-100 LED Spot with Powercon powercable 0,9m ● 2 brackets for truss mounting ●... - Page 4 ● If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
Infinity iS-100 Operating Determinations ● This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. ● The minimum distance between light-output and the illuminated surface must be more than 1 meter. - Page 6 Infinity iS-100 Mounting a clamp to the underside of the Infinity moving head Improper installation can cause serious damage to people and property ! Ordercode: 41500...
-
Page 7: Return Procedure
Infinity iS-100 Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER FASE BLUE... -
Page 8: Description Of The Device

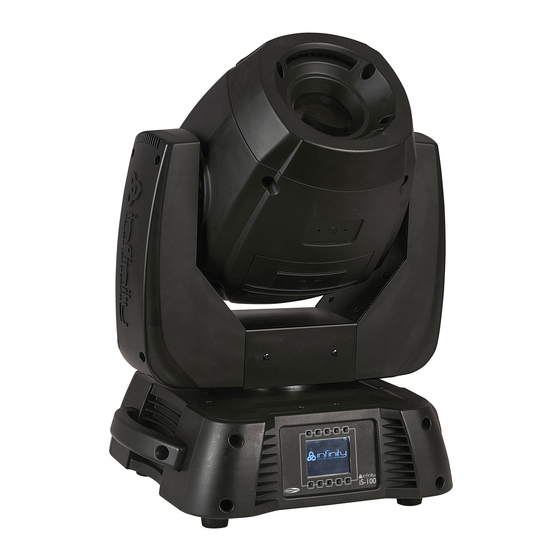

Infinity iS-100 Description of the device Features The Showtec Infinity iS-100 LED Spot is a moving-head with high output and great effects. ● Covers with quick lock screws ● Fast color & gobo changes due to high torque motors ●... -
Page 9: Overview
Infinity iS-100 Overview Fig. 01 01) Lens 02) Menu Buttons + LCD Display Backside Fig. 02 DMX signal connector (IN) 5-pin DMX signal connector (OUT) 5-pin 05) DMX signal connector (IN) 3-pin DMX signal connector (OUT) 3-pin Neutrik Powercon IN... -
Page 10: Installation
Infinity iS-100 Installation Remove all packing materials from the Infinity iS-100 LED Spot. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 11: Multiple Infinity's (Dmx Control)
Infinity iS-100 Multiple Infinity’s (DMX Control) 01) Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Plug the end of the electric mains power cord into a proper electric power supply socket. -
Page 12: Fixture Linking
Infinity iS-100 Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 13: Control Panel
Infinity iS-100 Control Panel Home button Edit Menu button Settings Mode Button Address Setting Button Infinity Logo Button Up Button Down Button OK/ENTER Left Button Right Button LCD Display Fig. 05 Control Mode The fixtures are individually addressed on a data-link and connected to the controller. -
Page 14: Menu Overview
Infinity iS-100 Menu Overview Ordercode: 41500... -
Page 15: Main Menu Options
Infinity iS-100 Main Menu Options DMX address Edit Mode Settings Menu Built-in Programs Test Mode Info Home Edit Menu Down Setting Mode Address Setting Left Infinity Logo Right 1. DMX Addressing With this menu you can set the DMX address. -
Page 16: Edit Mode
Infinity iS-100 2. Edit Mode With this menu you can set your desired mode. 01) Press the button and select 02) Press the button, to confirm. You can choose 3 different modes. Use the Up / Down buttons to select the required mode:... -
Page 17: Built-In Programs
Infinity iS-100 4. Built-in Programs With this menu you can set your desired mode. 01) Press the button and select 02) Press the button, to confirm. You can choose 10 different modes. Use the Up / Down buttons to select the required mode:... -
Page 18: Test Menu
Infinity iS-100 5. Test Menu With this menu you can set your desired mode. 01) Press the button and select 02) Press the button, to confirm. You can choose 2 different modes. Use the Up / Down buttons to select the required mode:... -
Page 19: Information Menu
Infinity iS-100 6. Information Menu With this menu you can set your desired mode. 01) Press the button and select 02) Press the button, to confirm. 03) You can only view 4 current settings, you cannot change anything Ordercode: 41500... -
Page 20: Dmx Channels
Infinity iS-100 DMX Channels 19 Channels (Advanced) Channel 1 – Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish. - Page 21 Infinity iS-100 Channel 9 – Colourwheel 1 Linear color change following the movement of the slider. Between 128 - 255, the color-wheel rotates continuously the so-called “Rainbow” effect. Open / White 7-13 High Transparent Red 14-20 Orange 21-27 Light Green...
- Page 22 Infinity iS-100 Channel 12 – Static Gobo-wheel + Gobo Shake Open / White 7-13 Gobo 1 14-20 Gobo 2 21-27 Gobo 3 28-34 Gobo 4 35-41 Gobo 5 42-48 Gobo 6 49-55 Gobo 7 56-63 Gobo 8 64-71 Gobo Shake 8 from slow to fast...
- Page 23 Infinity iS-100 Channel 15 – Iris 0-63 Iris from big to small 64-127 Auto Zoom from slow to fast 128-191 Zoom in slowly, zoom out fast 192-255 Zoom in fast, zoom out slowly Channel 16 – Focus 0-255 Continuous adjustment from far to near Channel 17 –...
- Page 24 Infinity iS-100 Channel 18 – Built-in Programs No Function 8-15 Built-in Program 1 16-23 Built-in Program 2 24-31 Built-in Program 3 32-39 Built-in Program 4 40-47 Built-in Program 5 48-55 Built-in Program 6 56-63 Built-in Program 7 64-71 Built-in Program 8...
-
Page 25: Channels (Basic)
Infinity iS-100 16 Channels (Basic) Channel 1 – Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish. - Page 26 Infinity iS-100 Channel 09 – Rotating Gobo-wheel + Gobo Shake Open / White 8-15 Gobo 1 (Glass) 16-23 Gobo 2 (Glass) 24-31 Gobo 3 (Metal) 32-39 Gobo 4 (Metal) 40-47 Gobo 5 (Metal) 48-55 Gobo 6 (Metal) 56-63 Gobo 7 (Glass)
-
Page 27: Channel Settings
Infinity iS-100 Channel 13 – Prism rotation 0-127 Prism-indexing 128-189 Clockwise rotation (CW) from slow to fast 190-193 Stop 194-255 Counter-clockwise rotation (CCW) from slow to fast Channel 14– Iris 0-63 Iris from big to small 64-127 Auto Zoom from slow to fast... -
Page 28: Maintenance
Infinity iS-100 Maintenance The Showtec Infinity iS-100 LED Spot requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply and then wipe the cover with a damp cloth. Wipe the front glass panel clean with glass cleaner and a soft cloth. - Page 29 Infinity iS-100 Fig. 08 03) Loosen the service lid of the housing, by sliding it to the bottom. 04) Gently tilt the head so the small metal housing will slide out more easy. 05) Turn the gobo wheel, with the gobo you want to remove, to the upside.
- Page 30 Infinity iS-100 Colorwheel 1 Fig. 10 Rotating Gobo-wheel Static Gobo-wheel Fig. 11 Fig. 12 Ordercode: 41500...
-
Page 31: Battery Replacement
Infinity iS-100 Battery Replacement (must be carried out by a qualified technician!) 01) Unplug the unit from the electric power source. 02) Remove the 6 screws on the front side of the Infinity. 03) Gently pull the front cover from the device. -
Page 32: Troubleshooting
01) First try to reset the device to its original factory default settings (3-Settings Menu Menu see page 15). 02) Power supply. Check that the unit is plugged into an appropriate power supply. 03) The LEDs. Return the Infinity to your Showtec dealer. 04) The fuse. Replace the fuse. See page 23 for replacing the fuse. - Page 33 Infinity iS-100 Problem Probable cause(s) Remedy One or more No power to the fixture. ● Check that power is switched on fixtures are and cables are plugged in. completely dead. Primary fuse blown. ● Replace fuse. ● Fixtures reset The controller is not connected.
-
Page 34: Product Specification
Infinity iS-100 Product Specification Model: Showtec Infinity iS-100 LED Spot Input Voltage: 100-240 VAC Continuous Power: 220W max. at full output Fuse: F5AL / 250V Dimensions: 304 x 366 x 485 mm (LxWxH) Weight: 16,5 kg Operation and Programming Signal pin OUT:... - Page 35 Infinity iS-100 Gobos Colourwheel: heat-resistant and intensify glass; dichroic glas coating Max. ambient temperature t 40°C; Max. housing temperature t : 80°C Motor: high quality stepping-motor controlled by microprocessors Minimum distance: Minimum distance from flammable surfaces: 0.5m Minimum distance to lighted object: 1.3m...
