VPro MA Series Instruction Manual

NIPPON VALVE CONTROLS, INC.
Please read this manual before installation and use.
GENERAL
This series is suitable for original or bypass valve in
piping system.
The plate of position indicator is newly designed.
It's very easy to recognize even from a distant
place.
The position of manual handle can be changed, so
this valve can be installed in any piping systems.

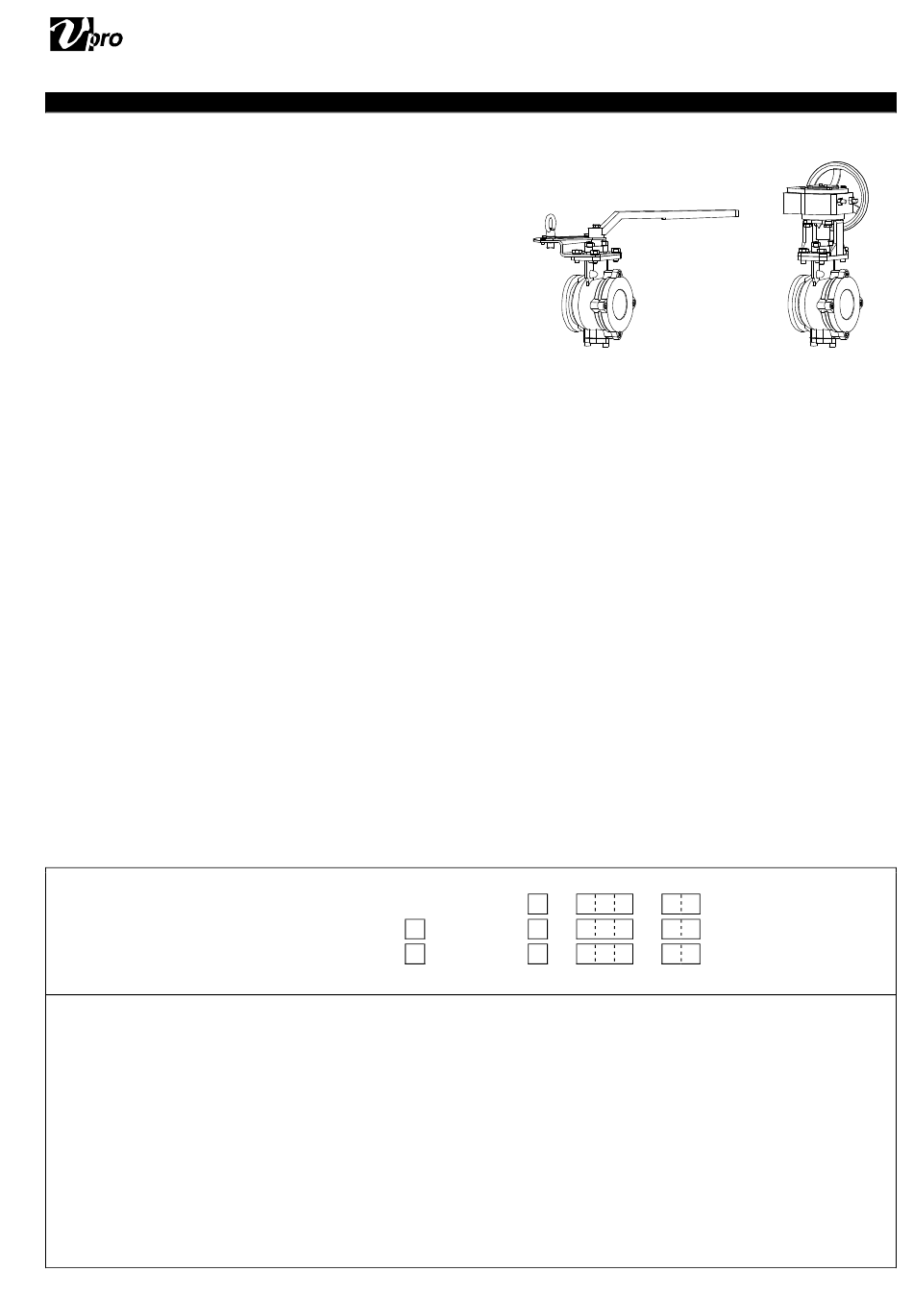

Manual operation
Lever
Gear
Valve
GS type For Wafer. (JIS 10K / 20K)
PRODUCT CODE
GS type (V-port)
(Full port)
(Standard port)
(1) Actuator
MA-
(2) Valve
GS
(3) Manual operation
L : Lever
G : Gear
(4) Hyphen
Instruction manual
MA- SERIES Ball Valve GS
M A - G S L
M A - G S
M A - G S
(1) (2) (3) (4) (5) (6) (7) (8)
(5) Connection
3 : JIS 20K
(6) Body material
U : SCS14A
(7) Ball material
U : SCS14A
Lever
- 3 U U V
- 3 U U -
- 3 U U R
(9)
(8) Seat material
G : R-PTFE
K : PEEK
I : API
C : R-PEEK
M : SUS316 + Stellite
(9) Size [mm]
ex. 25 A ® 025
(10) Option
LA : Limit switch for OPEN / SHUT signal.
1/5
OSYGS23B-EN
Gear
-
-
-
(10)
SP-1531
