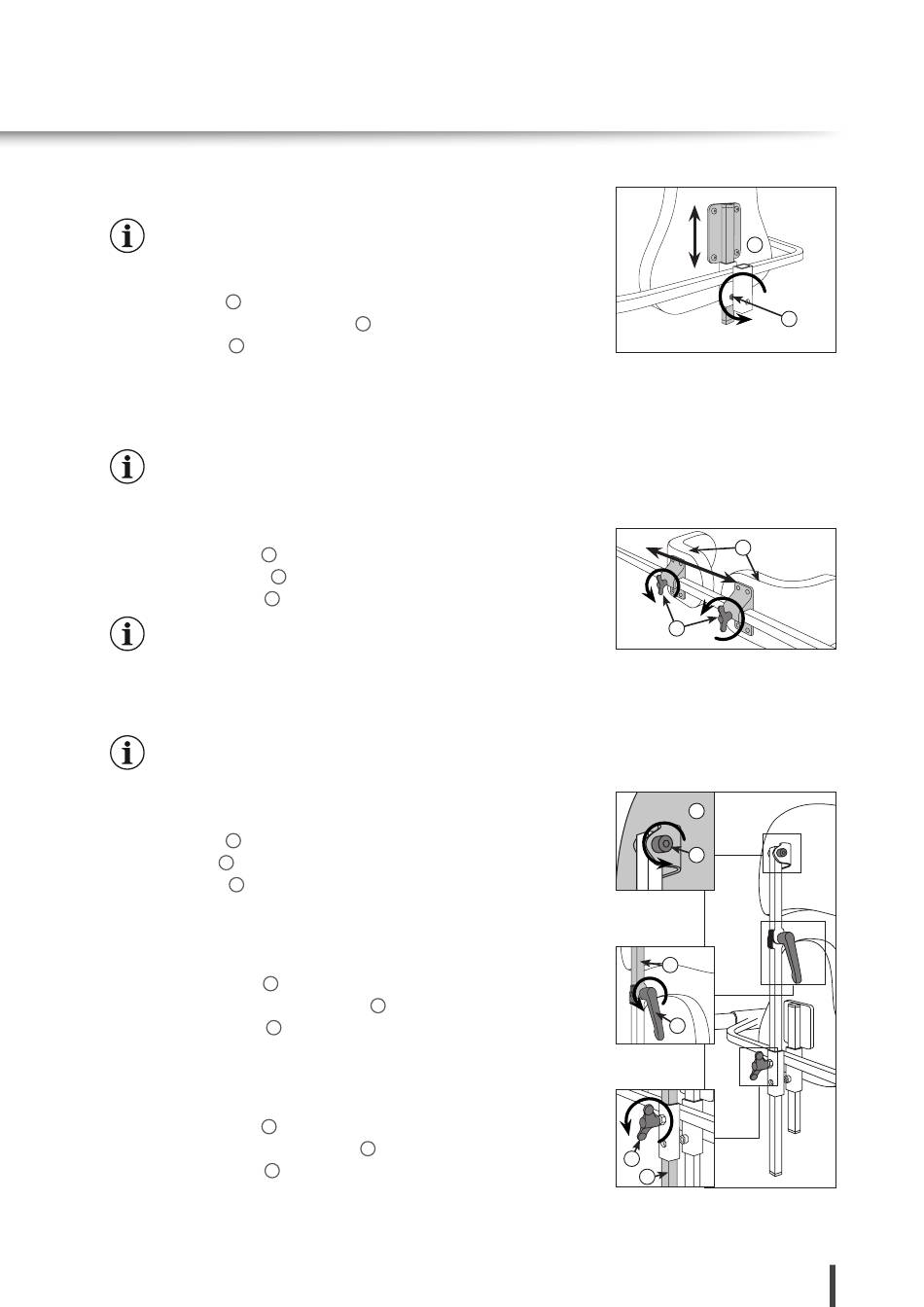

Height adjustment
If the headrest is mounted, it must be removed before adjusting the
back support, then mounted again after adjustment (see chapter
„Headrest").
Loosen the screw
1
Adjust the height of the back support
Tighten the screw
1
5.16 P E LV I C S U P P O R T (O P T I O N A L )
The depth of the pelvic support depends on the type of frame (swivel
arm or scissor) and cannot be adjusted any further.
Width adjustment
Loosen the wing screw
Move the pelvic support
Tighten the wing screw
Repeat the procedure to adjust the other pelvic support.
5.17 H E A D R E S T (O P T I O N A L )
The headrest is attached to the back support holder. If the back support
is adjusted in depth, the headrest is automatically adjusted as well.
Recline adjustment, headrest
Loosen the screw
1
Tilt the headrest to the desired inclination.
2
Tighten the screw
1
Angle adjustement, headrest attachment bracket
Loosen the clamp lever
Adjust the headrest attachment bracket
Tighten the clamp lever
Height adjustment
Loosen the wing screw
Slide the headrest attachment bracket
Tighten the wing screw
