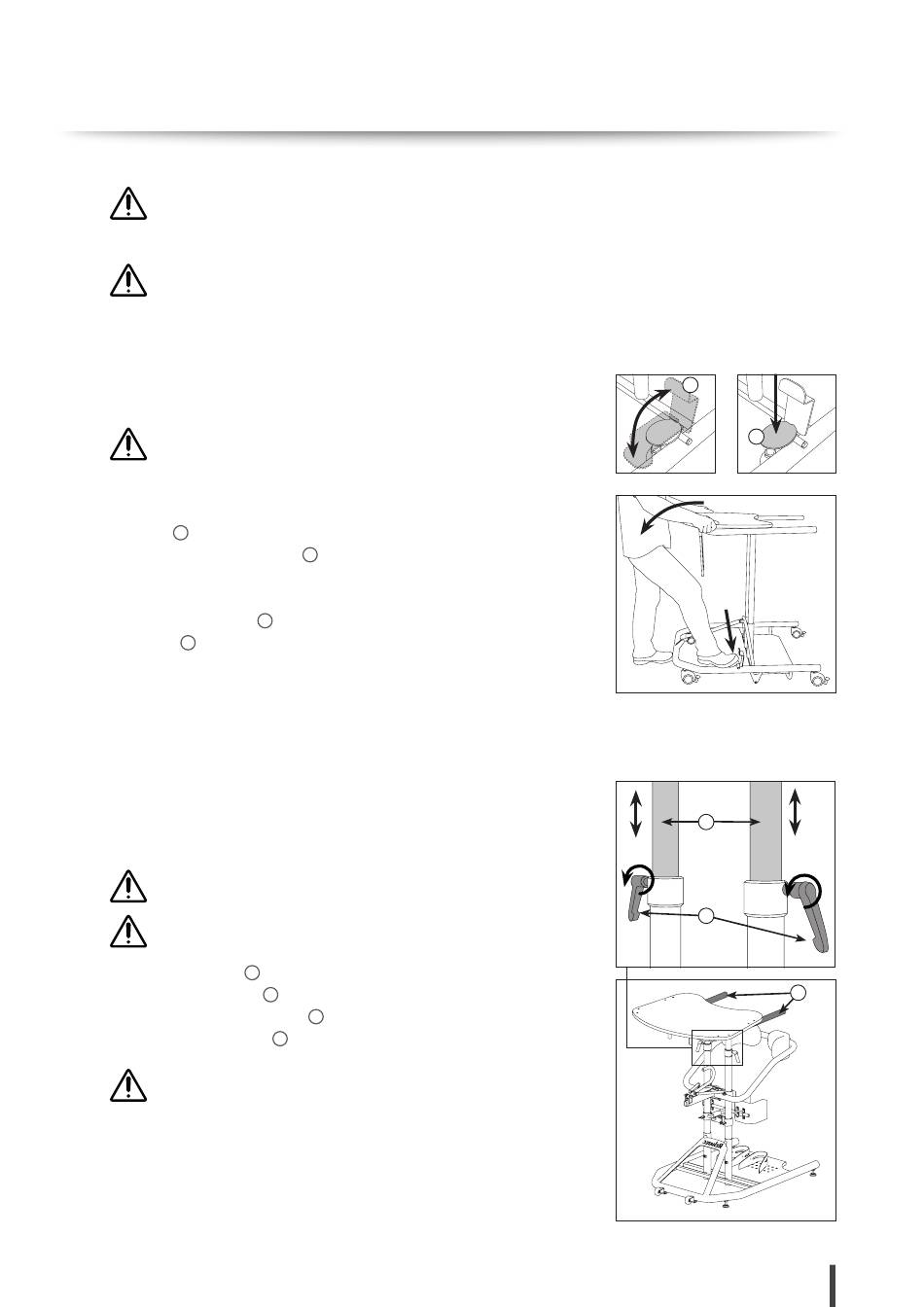

5. Adjusting the unit
When carrying out any adjustment work, be aware of the risk
of pinching and crushing. Adjustments should be made by two
people to prevent possible injuries!
If castors are present, they must be locked before adjusting the
unit!
5.1 M U LT I F R A M E (O P T I O N A L )
With the Multi frame, the frame can be tilted forwards by up to 20°. This
serves to train the back muscles and to straighten the pelvis.
If castors are present, they must be locked before adjusting the
unit!
How to adjust the inclination
Lift cover upwards.
1
Press down on the foot pedal
Hold the tray with both hands and press down until desired inclination is
achieved.
Release the foot pedal
Fold cover back down.
1
5. 2 T R AY P I L L A R S
The upper edge of the tray must be adjusted to the patient's elbow height.
To do this, the elbow is bent 90° and the measurement between the elbow
and the footplate is measured. This measurement corresponds to the
required tray top edge.
The adjustment must be carried out by two persons to prevent
possible injuries!
The red marking of the pillars must not be exceeded.
Hold the tray mount
Loosen the clamp lever
Adjust the height of the pillars
Tighten the clamp levers
The clamp levers must be firmly tightened - otherwise there is a
risk of injury!
1023926_EN_0 Subject to technical changes and misprints.
and hold.
2
.
2
with two hands.
1
.
2
by lifting the tray to the desired height.
3
.
2
1
2
3
2
1
