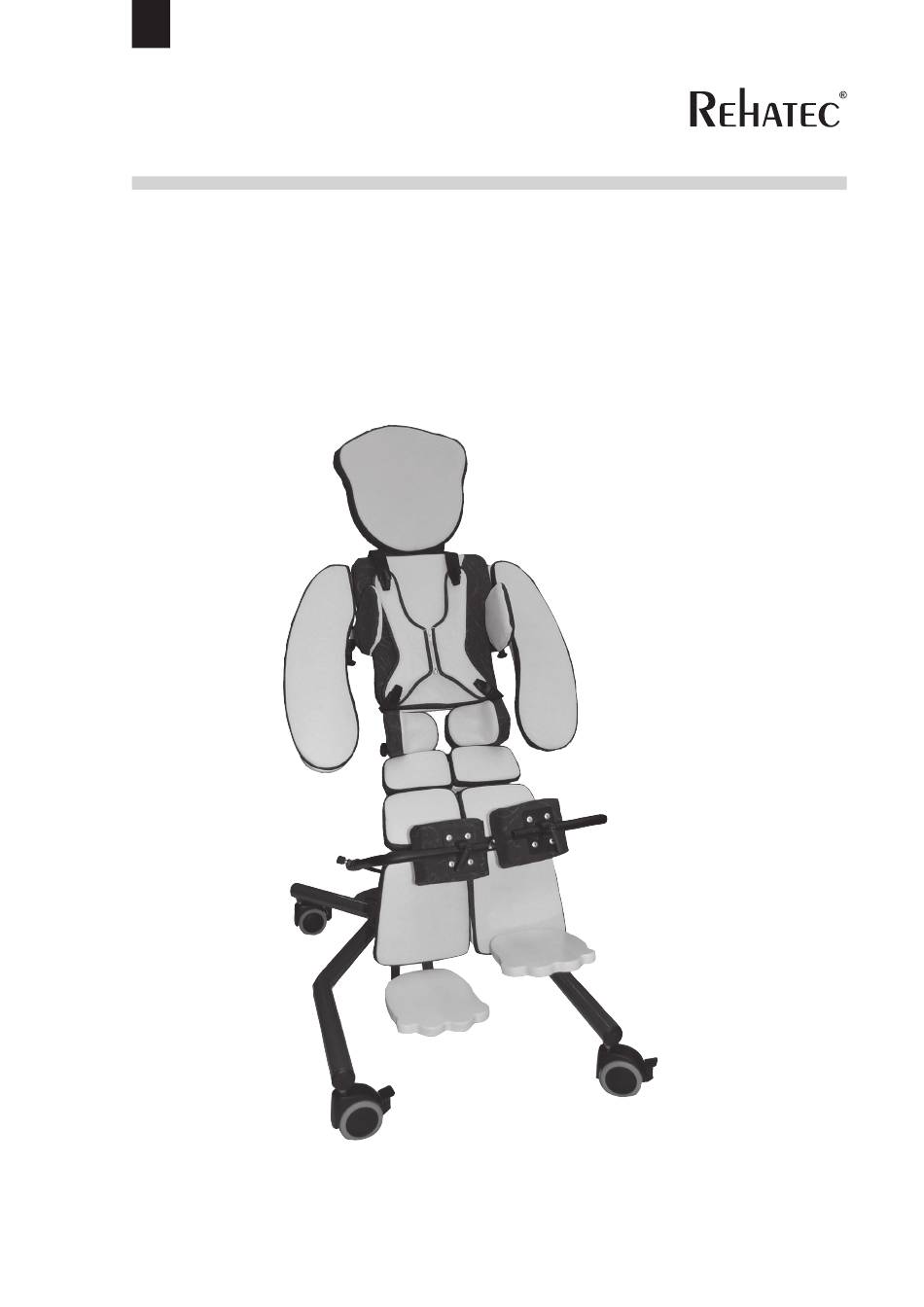

- Page 1 Dieter Frank GmbH User Instructions Supine-Bear „Lasse“...
-
Page 3: Table Of Contents
5.2. Lateral trunk supports (optional) 5.3. Pelvic supports 5.4. Knee blocks 5.5. Chest belt 5.6. Tilting the entire standing system “Lasse” Adjusting the device for the patient ..........12 6.1. Head support 6.2. Lateral trunk supports 6.3. Pelvic supports 6.4. Leg supports 6.5. -
Page 4: Preface
1. Preface Dear User, You chose the supine standing system “Lasse” from Rehatec Dieter Frank GmbH. We would like to thank you for your trust in our products. The innovative Supine-Bear “Lasse” offers maximum comfort and greatest possible individuality. The standing system provides smoothly gradable, supported and controlled standing training and a great measure of functionality. -
Page 5: Legal Terms
2. Legal Terms Intended use The Supine-Bear “Lasse” is a standing system which has been designed for children. Maximum user weight is 50kg for size 1 and 60kg for size 2. All safety precautions, advices and information in this manual have to be considered by the user/ope- rator, to insure safe and successful use of the device. -
Page 6: Declaration Of Conformity
User Instructions Declaration of Conformity Rehatec Dieter Frank GmbH as manufacturer with sole responsibility declares that the standing sys- tem Supine-Bear “Lasse” conforms to the requirements of the 93/42/EWG Guidelines Medical Device Regulations. 3. Safety Signs and Symbols Attention! Used especially for information concerning safety. -
Page 7: Overview: Product And Delivery
Supine-Bear “Lasse” Dieter Frank GmbH 4. Overview: Product and Delivery Delivery contents Typically, the Supine-Bear “Lasse” is delivered fully assembled and pre-adjusted to the child by the au- thorized supplier. Standard delivery contents contain the following components: • Head support “Bear”... -
Page 8: Check Parts
• Rim for tray • Lateral trunk supports • ASIS (anterior superior iliac spine) support • Armrests (removable) • Pelvi.Loc-belt (pelvis) • Head support (shell shaped) • Pes equinus correction • Foot holders incl. foot straps Rehatec ® Dieter Frank GmbH - 02.2014... -
Page 9: Preparing The Device
Please follow the below listed steps before transferring the child onto the Supine-Bear “Lasse”! Caster wheels Locking the caster wheels (image 1) Place the Supine-Bear “Lasse” on even, nonslip surface. Lock all 4 casters. Bild 1: Locking the caster wheels Lateral trunk supports (optional) Optionally available accessory - please note assembly instructions where applicable. -
Page 10: Knee Blocks
Opening the chest harness (image 5) Unzip the Zipper (A) fully. Open the buckles (B). Move harness to the side or to the back to position the child Bild 5: Open chest harness unimpeded. Rehatec ® Dieter Frank GmbH - 02.2014... - Page 11 Keep the hand lever (A) pushed and move the entire stan- ding system into the horizontal position (B). Release the hand lever. Now the Supine-Bear “Lasse” is prepared for the transfer of the child. Use the same hand lever to move the child into the vertical position.
-
Page 12: Adjusting The Device For The Patient
User Instructions 6. Adjusting the device to the child Before using the Supine-Bear “Lasse” you have to adjust it to the body measurements of the child! Variable positioning through multi-functional adjustment of height, depth and tilt angle, provides safe supine positioning as well as interactive, supported vertical standing. -
Page 13: Lateral Trunk Supports
Supine-Bear “Lasse” Dieter Frank GmbH Lateral trunk supports (optional) The optionally available lateral trunk supports guide the thoracic position. The following steps describe adjustment of one trunk support and have to be carried out in the same order for the second one. -
Page 14: Pelvic Supports
Loosen wing nut (A) at pelvic support mounting. Adjust pelvic support to the height of the pelvis. Retighten wing nut. Bild 13: Adapt height of pelvic Repeat step 1-3 for the other pelvic support. supports Rehatec ® Dieter Frank GmbH - 02.2014... -
Page 15: Leg Supports
Bild 14: Triple-adjustment of pelvic supports Leg supports The leg supports of the Supine-Bear “Lasse” can be adjusted in vari- ous ways such as in general height, general angle and knee angle. The following steps describe adjustment of one leg support and have to be carried out in the same order for the second one. - Page 16 Retighten wing nut (A). Retighten locking lever (B). Repeat step 1-5 to adjust the knee angle of the other side. Bild 17: Adjusting the knee angle of the leg support Rehatec ® Dieter Frank GmbH - 02.2014...
-
Page 17: Knee Blocks (Optional)
Supine-Bear “Lasse” Dieter Frank GmbH Knee blocks (optional) The optionally available knee blocks control the position of the knees. The following steps describe adjustment of one knee block and have to be carried out in the same order for the second one. -
Page 18: Individual Footplates
User Instructions Individual footplates Two footplates belong with the Supine-Bear “Lasse”. They should be adjusted to the needed height of the user‘s feet. The various adjustment options allow for adjustment of foot length and ankle position as well as for consi- deration of therapeutic goals (e.g. -
Page 19: Arm Supports
The tilt mechanism of the Supine-Bear “Lasse” gives the child the chance to slowly get used to the upright position and allows a slow adjustment of the cardiovascular system to the vertical position. -
Page 20: Technical Data
• Check the function of the locking brakes regularly. 9. Passing on and Recycling When passing on the device, please hand over all device related documents to the new owner. For recycling please consult with your supplier. Rehatec ® Dieter Frank GmbH - 02.2014... -
Page 21: Type Signs
Warranty extends to defects of the product as result of provable flaws of material or workmanship. A three year warranty is provided for all frame parts of the Supine-Bear “Lasse”. Defect parts will be replaced free of cost. The manufacturer will not take responsibility in the case that constructive intervention and changes have taken place, which exceed the device‘s adjustability in regard to the user‘s size. - Page 22 Notice ® Dieter Frank GmbH In den Kreuzwiesen 35 D-69250 Schönau + 49 (0) 6228 - 91 36 0 + 49 (0) 6228 - 91 36 99 www.rehatec.com info@rehatec.com...
- Page 23 The below identified Rehatec product is of perfect quality and functional construction. Any damage as a result of material defects will be remedied free of cost by Rehatec within a three year time frame, starting with the date of purchase.
- Page 24 ® Dieter Frank GmbH In den Kreuzwiesen 35 D-69250 Schönau + 49 (0) 6228 - 91 36 0 + 49 (0) 6228 - 91 36 99 www.rehatec.com info@rehatec.com...
