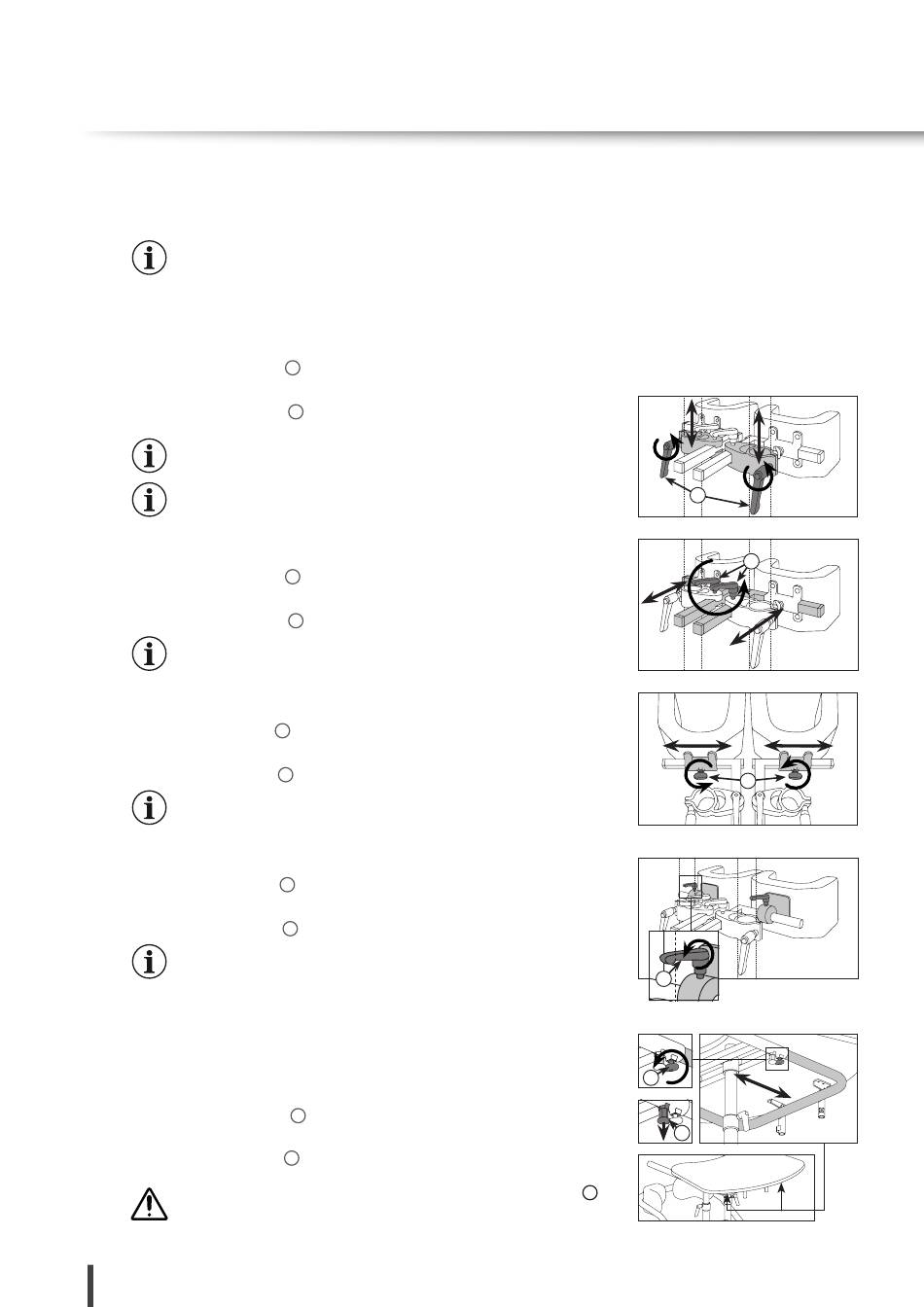

5. Adjusting the unit
5. 8 K N E E CU P S
( I N D I V I D UA L LY A DJ U S TA B L E , O P T I O N A L )
The adjustment options refer to the optional, individually adjustable
attachments that can be used with the U-shaped and contoured knee
cups.
Height adjustment
Loosen the clamp lever
Slide the knee cup to the desired height.
Tighten the clamp lever
By loosening the clamp lever you can also adjust the horizontal angle of
the knee cups.
Repeat the process to adjust the other knee cup.
Depth adjustment
Loosen the clamp lever
Adjust the depth of the knee cup.
Tighten the clamp lever
Repeat the process to adjust the other knee cup.
Width adjustment
Loosen the mini wing
Adjust the width of the knee cup.
Tighten the mini wing
Repeat the process to adjust the other knee cup.
Angle adjustment
Loosen the clamp lever
Adjust the angle of the knee cup.
Tighten the clamp lever
Repeat the process to adjust the other knee cup.
5.9 T R AY
Tray depth adjustment
Loosen both mini wings
Adjust the depth of the tray.
Tighten the mini wings
The maximum adjustment is reached when the locking bolt
released.
24
.
1
again.
1
.
2
again.
2
.
1
again.
1
(only for 3-axis knee cups, optional)
.
1
again.
1
(optional)
.
1
again.
1
1
2
1
1
1
2
is
2
1023926_EN_0 Subject to technical changes and misprints..
