Replace a module
Dismantle the door station (figure 3).
„ Remove the connection terminal block (12)
from the video insert.
„ Loosen the screws (18) on the rear base of the
modules (19) using a screwdriver and remove
the base (figure 17).
„ Remove the connecting cable connectors from
the module (12) to be exchanged (figure 2).
(18)

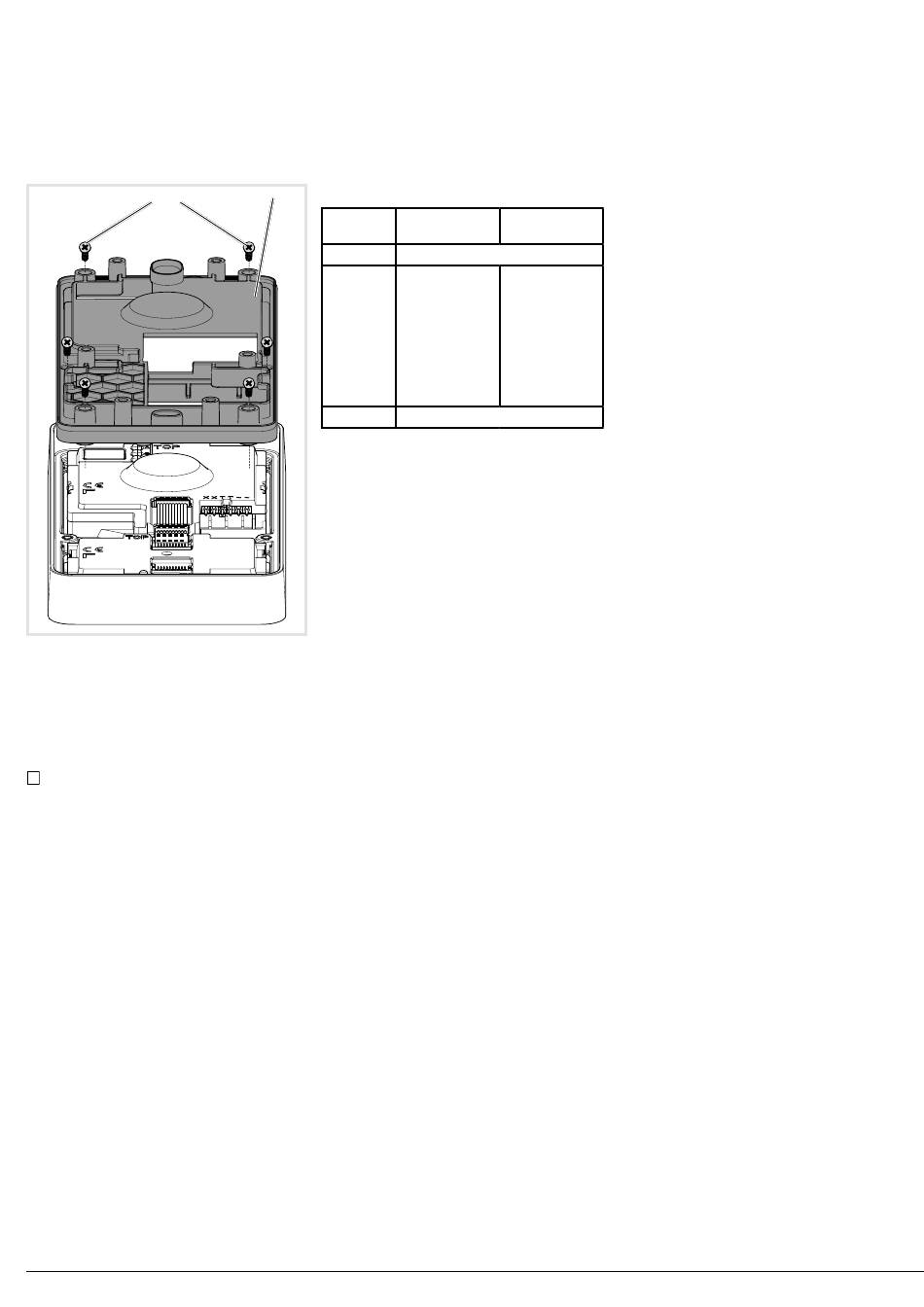

Figure 17: Module base dismantling
(18) Vis
(19) Module base
The audio module and the call push-button module
can be removed.
„ Remove the module to be replaced and install
the new module in reverse order.
i
Automatic or manual addressing of the module
is required to operate the door station.
6 Elcom Kommunikation GmbH-Zum Gunterstal-66440 BLIESKASTEL-GERMANY - www.elcom.de -
Appendix
Technical data
Operating voltage
Current consumption audio insert
Stand-by
Current consumption audio insert
Operation
Current name plate lighting
per call push-button module
(19)
Menu Backlighting On
setting
0
1 ≈ 750 lx
2 .
3 .
4 .
5 .
6 .
7 .
8 .
9 ≈ 60 lx
10
Table 2: Switch-on brightness level name plate-
lighting
Door release contact T/T potential-free
Door release unlocking time
Degree of protection
Degree of protection
Average degree of humidity
without condensation at 25°C,
can vary between 85% and 95%
Operating temperature
Storage/transport temperature
Connecting terminals
for conductor diameter
Dimensions:
Small call push-button
Small name plate insert
Medium call push-button
Medium name plate insert
Width of name plate insert
Door station dimensions
(W x H x D)
22 ... 24 V=
5 mA
110 mA
45 mA
Backlighting Off
Permanent Off
≈ 1600 lx
.
.
.
.
.
.
.
≈ 110 lx
Permanent On
max. 24 V/1 A
1 ... 10 s
IP 54
IK07
from 5% to 75%
for 30 days in the year
-20°C ... +55°C
-30°C ... +80°C
0.5 ... 0.8 mm
75.8 x 14.5 mm
72.1 x 12 mm
75.8 x 32.6 mm
72.1 x 30.1 mm
max. 0.5 mm
100 x 191 x 29.5 mm
