Install door station
The system settings are complete.
„ Use a Torx T10 screwdriver.
„ Position the door station on the base and
tighten the two screws in the front plate
(figure 12).

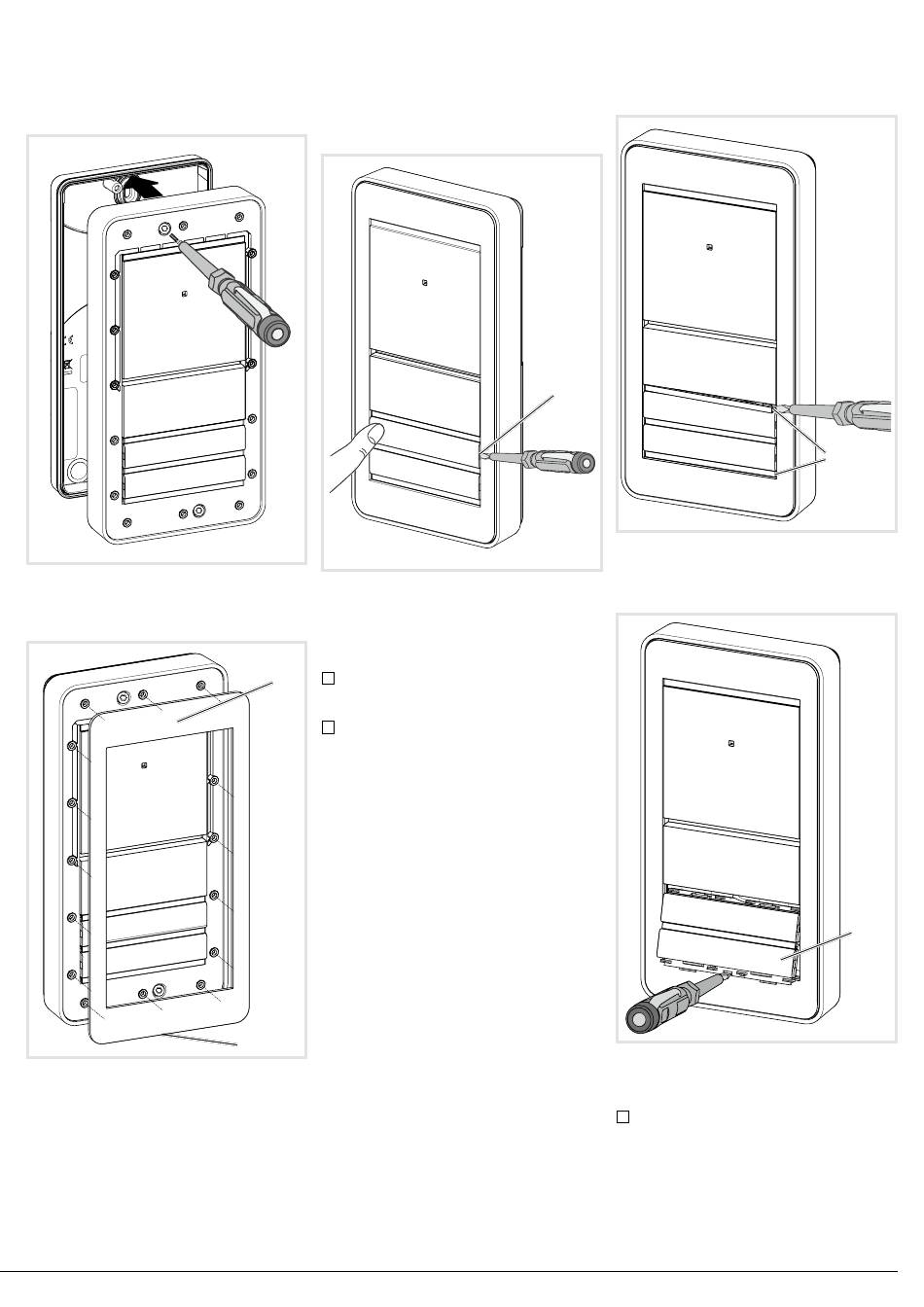

Figure 12: Installing door station
„ Clip the design front plate (1) on to the door
station making sure that the unclipping slot (15)
is pointing downwards (figure 13).
Figure 13: Clipping the design front plate on to the
base.
(15) Unclipping slot
5 Elcom Kommunikation GmbH-Zum Gunterstal-66440 BLIESKASTEL-GERMANY - www.elcom.de -
Label call push-button
„ Press one side of the call push-button.
The other side can be levered open (16) using
a screwdriver.
„ Insert the screwdriver into the lever opening
system (16) and unlock the button (figure 14).
„ Remove cover with name plate insert.
Figure 14: Removing name plate cover
(16) Lever opening system
„ Label name plate insert if required.
„ Place a name plate or label inside the cover
and press down on the cover.
i
Do not use a paper name plate or label as it
(1)
may be damaged by damp and UV light along
with the writing on it.
i
Use UV-resistant media and laser printing
or marking devices for the labelling:
- small buttons - 12 mm
- medium buttons - 30 mm
It is advisable to use white writing on a black
background.
(15)
Dismantle call push-button module cover
During cleaning or replacement, the call push-but-
ton module cover can be dismantled from the front.
„ Lever open the top and bottom of the cover
strips (6) and remove them (figure 15).
(16)
Figure 15: Removing cover strips
„ Use a screwdriver to lever open the push-but-
ton module cover and remove it from the front
(figure 16).
Figure 16: Dismantling the call push-button module
cover
(17) Call push-button module cover
i Defective covers can only be replaced by co-
vers with the same number of push-buttons.
„ Remove the module to be replaced and install
the new module in reverse order.
(6)
(17)
