Unit Elements
4.6 Housing and Handie Designation Ord. No.
Housing Labelling ............,.......,.,...... 3452 0643
Foot stand complete with rubber feet ............. 3450 5415
Rubber feet (20 pes] .........,,.......,........ 3477 3096
Unit handle with O-rings and PT screws ........... 3450 3450
Power cord fixation ...........,......,..,...... 3452 0651
Exchange
Remove battery (see "Battery" pg. 4-1).
Loosen 4 screws from the foot stands and remove foot stands.
1.
2
3. Remove the plug holder.
PT5.0x16 4
Remove the safety seal from the rear panel, break tamper-
roof cap and remove screw.
Power cord P p
fixation 5. Slidiy widen the sides at the bottom of the housing and
pull off to the top.
| 6. Lay the unit on the front side and assemble in reverse order.
[ Safety seal the rear panel screw after functional check.
3 |
È 會 | Check
Safety check.
8
OK 4x M4x8
8 06015

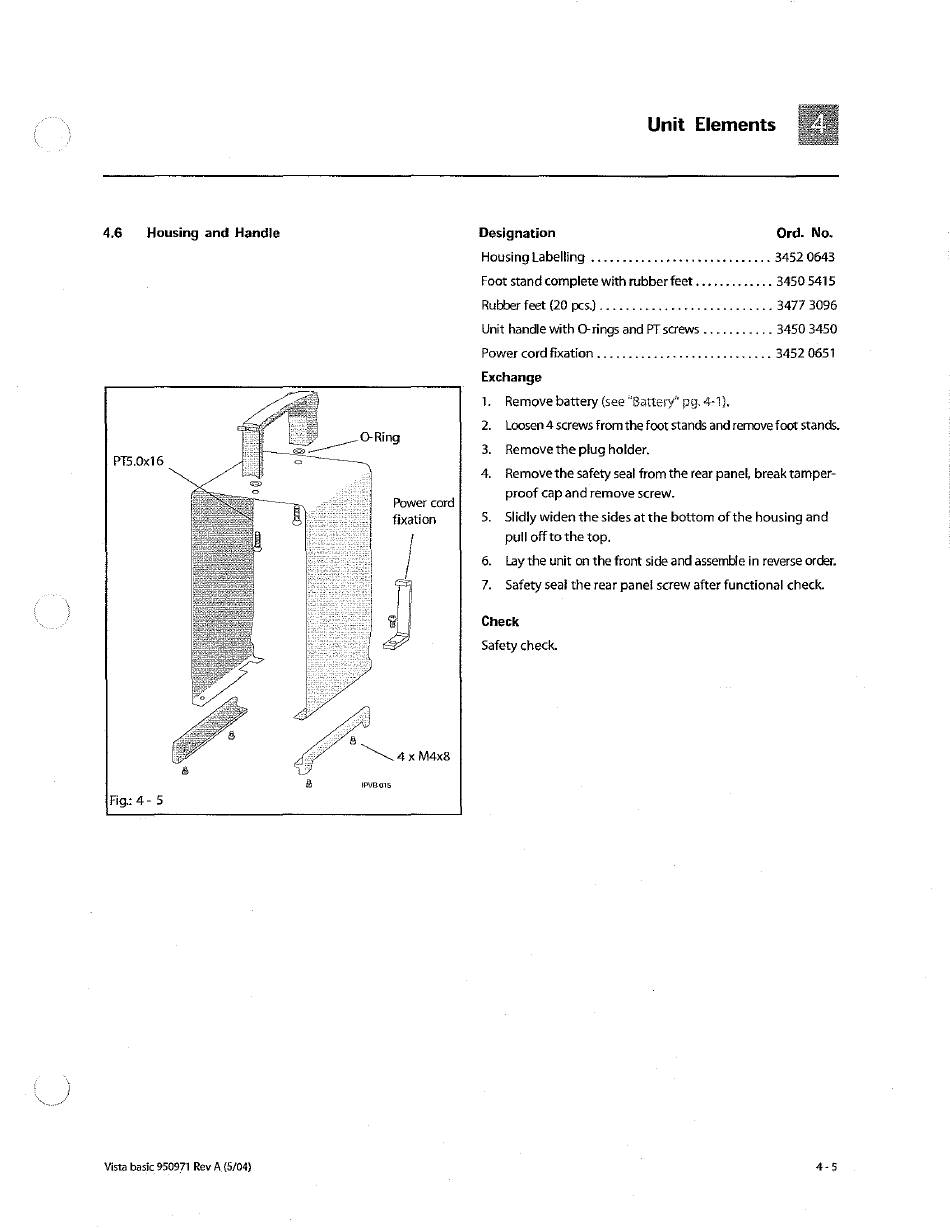

Fig: 4-5
Vista basic 950971 Rev A (5/04) 4-5
