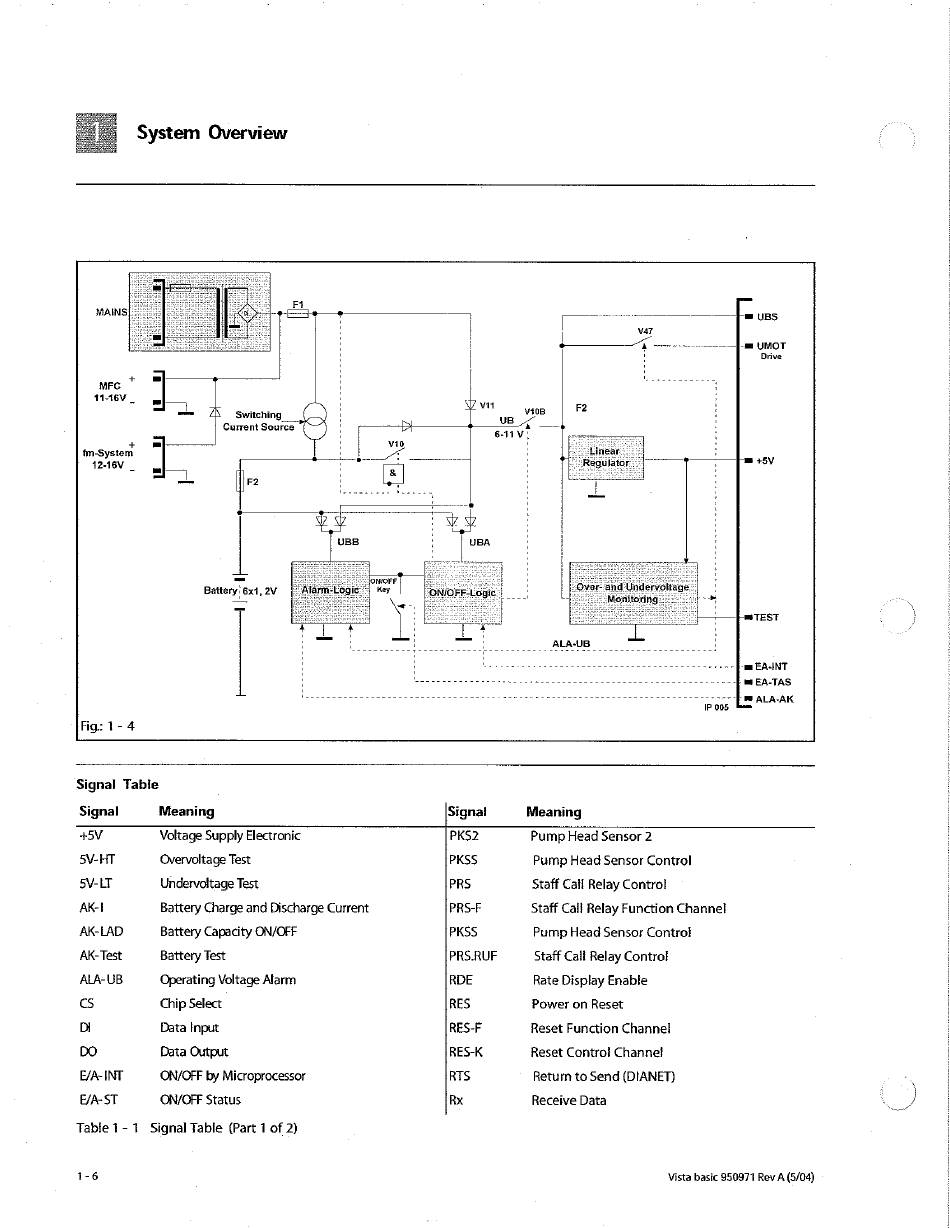

System Overview
MAINS:
+
MFC
11-16\ _
Switching
Current Source
+
fm-System
1246V
+8V
Battery: 6x1, 2V
T
TEST
- Pan EASINT
mi EA-TAS
τον
8 ALA-AK
IP 005
Fig: 1-4
Signal Table
Signal
Meaning
Signai
Meaning
+5V
Voltage Supply Electronic
PKS2
Pump Head Sensor 2
5V-HT
Overvoltage Test
PKSS
Pump Head Sensor Control
5V-LT
Undervoltage Test
PRS
Staff Call Relay Control
AKI
Battery Charge and Discharge Current
PRS-F
Staff Cali Relay Function Channel
AK-LAD
Battery Capacity ON/OFF
PKSS
Pump Head Sensor Control
AK-Test
Battery Test
PRS.RUF
Staff Cali Relay Control
ALA-UB
Operating Voltage Alarm
RDE
Rate Display Enable
G
Chip Select
RES
Power on Reset
Di
Data Input
RES-F
Reset Function Channel
DO
Data Output
RES-K
Reset Control Channel
E/A-INT
ON/OFF by Microprocessor
RTS
Return to Send (DIANET)
E/A-ST
ON/OFF Status
Rx
Receive Data
Table 1 - 1
Signal Table (Part 1 of 2)
1-6
Vista basic 950971 Rev A (5/04)
