B. Braun Vista basic Service Manual page 4

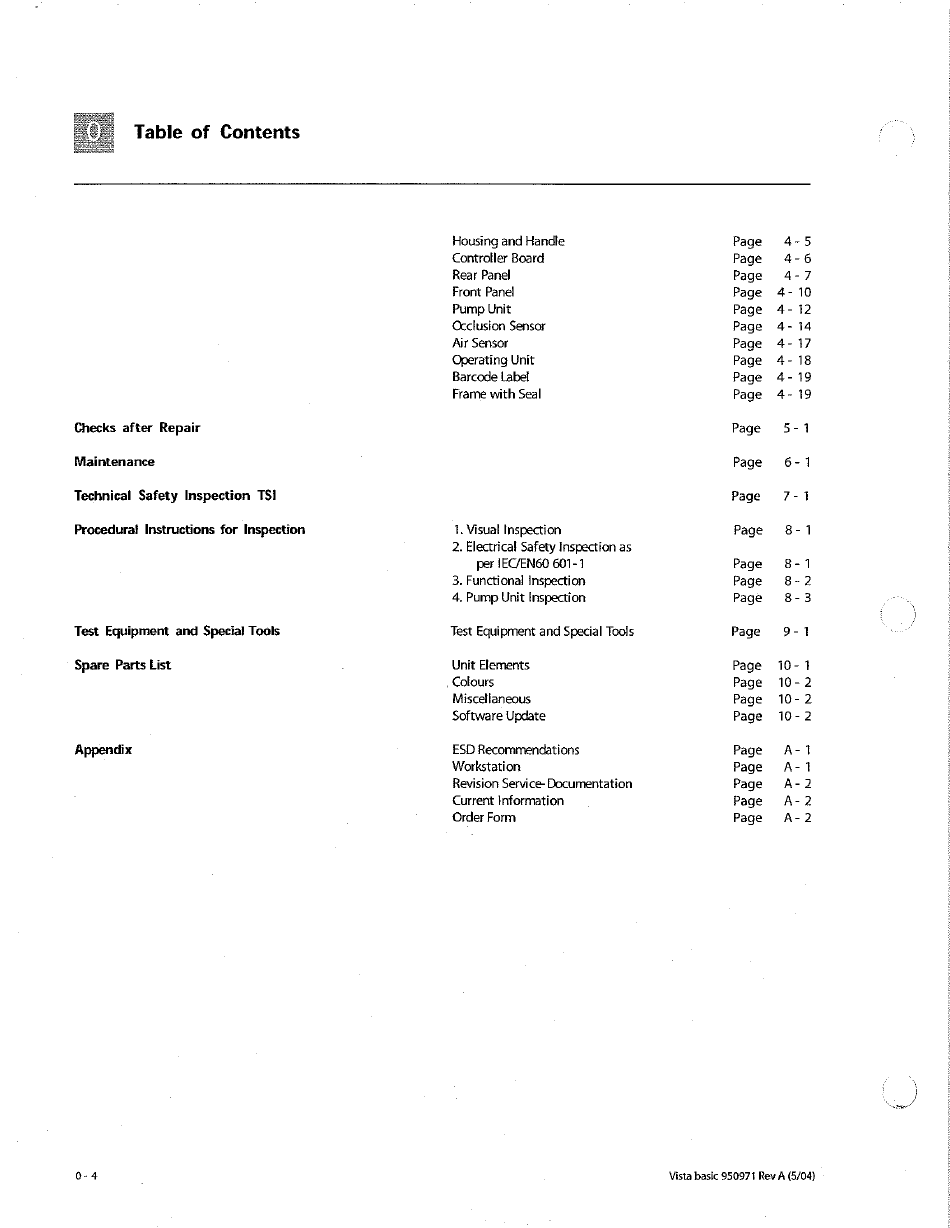

Table of Contents
Housing and Handle Page 4-5
Controller Board Page 4-6
Rear Panel Page 4-7
Front Panel Page 4-10
Pump Unit Page 4- 12
Occlusion Sensor Page 4-14
Air Sensor Page 4-17
Operating Unit Page 4-18
Barcode Label Page 4-19
Frame with Seal Page 4-19
Checks after Repair Page 5-1
Maintenance Page 6-1
Technical Safety Inspection TSI Page 7-1
Procedurat Instructions for Inspection 1. Visual Inspection Page 8-1
2. Electrical Safety Inspection as
per IEOEN60 601-1 Page 8-1
3. Functional Inspection Page 8-2
4. Pump Unit Inspection Page 8-3 n
)
Test Equipment and Special Tools Test Equipment and Special Tools Page 9-1 -
Spare Parts List Unit Elements Page 10-1
„Colours Page 10-2
Miscellaneous Page 10-2
Software Update Page 10-2
Appendix ESD Recommendations Page A-1
Workstation Page A-1
Revision Service- Documentation Page A-2
Current Information Page A-2
Order Form Page A-2
0-4 Vista basic 950971 Rev A (5/04)
