General notes

Read and adhere to these installation instructions
before installation.
Keep these installation instructions for future use and for future
owners.
Description
These installation instructions describe the mounting and con-
nection of the R100, R120 and D100 brush heads
Note
The illustrations show the R 100 brush head as an example.
Mounting and connection of the R 120 and D 100 brush heads
are carried out in the same manner as described and shown.

Safety instructions

Hazard levels
DANGER
● Indication of an imminent threat of danger that will lead to se-
vere injuries or even death.
WARNING
● Indication of a potentially dangerous situation that may lead to
severe injuries or even death.
CAUTION
● Indication of a potentially dangerous situation that may lead to
minor injuries.
ATTENTION
● Indication of a potentially dangerous situation that may lead to
damage to property.
Safety instructions
WARNING
Risk of injury from crushing and cutting off body parts!
When lowering and raising the brush head, there is a risk of injury
from crushing and cutting off body parts.
Do not reach into the area of movement when lowering or raising
the brush head.
Switch off the power to the machine before working on the brush
head and secure the machine against being switched on again.
ATTENTION
Risk of damage due to improper installation.
Improper installation or connecting up of the attachment can
damage the attachment as well as the vehicle or the machine.
Malfunctions and failures can occur on the attachment and the
vehicle or machine.
Have the assembly, installation and connecting up of the attach-
ment carried out only by a qualified specialist.
ATTENTION
Risk of damage due to sharp-edged objects and soiling!
Sharp-edged or dirty objects can cause damage such as scratch-
es, notches and deformation when coming into contact with de-
vice components. Dirty tools, cloths and work surfaces can cause
irreversible soiling and discolouration.
Use only suitable, undamaged and clean tools and auxiliary ma-
terials and exercise care when working. Place components and
devices only on clean, padded surfaces.
For safety and warranty reasons, we recommend that you have
Kärcher Service perform the installation and connection.
Keep these installation instructions for future reference or for fu-
ture owners.
Note
Also adhere to the operating instructions for the vehicle or device
in which the attachment is installed.
Order numbers and spare parts
You can find all order numbers and spare parts in DISIS.
● Remove the brush head to be replaced (see service manual).
● Turn the programme selection switch to the "OFF" position.
● Set the safety switch to position "0".
● Pull out the KÄRCHER Intelligent Key (KIK) on the control
panel.

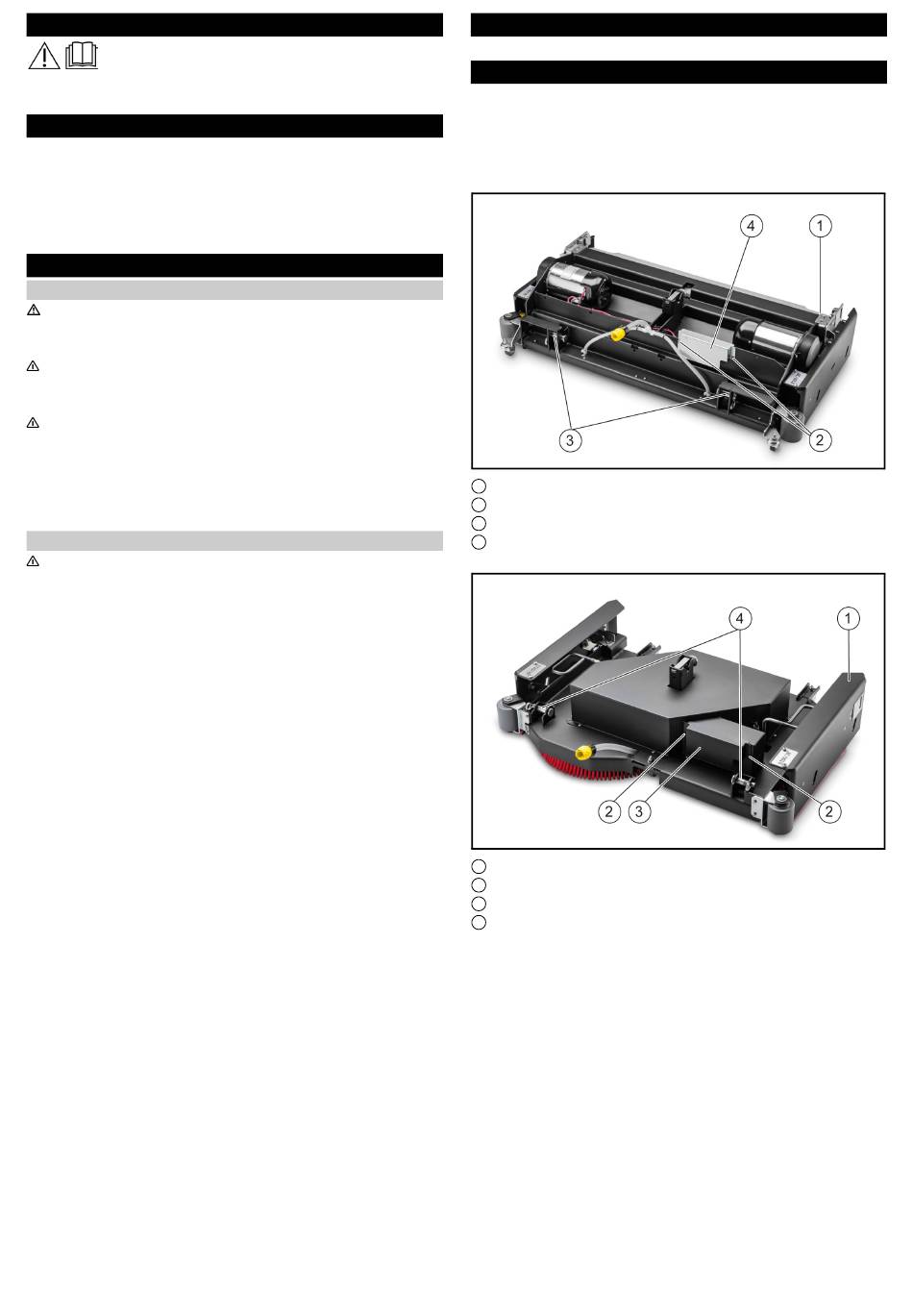

Brush head (R-variant)
Brush head
1
Screw M6x12
2
Bolt
3
Cover
4
Brush head D100 (D-variant)
Brush head
1
Screw M6x12
2
Cover
3
Bolt
4
English
Preparatory work
5
