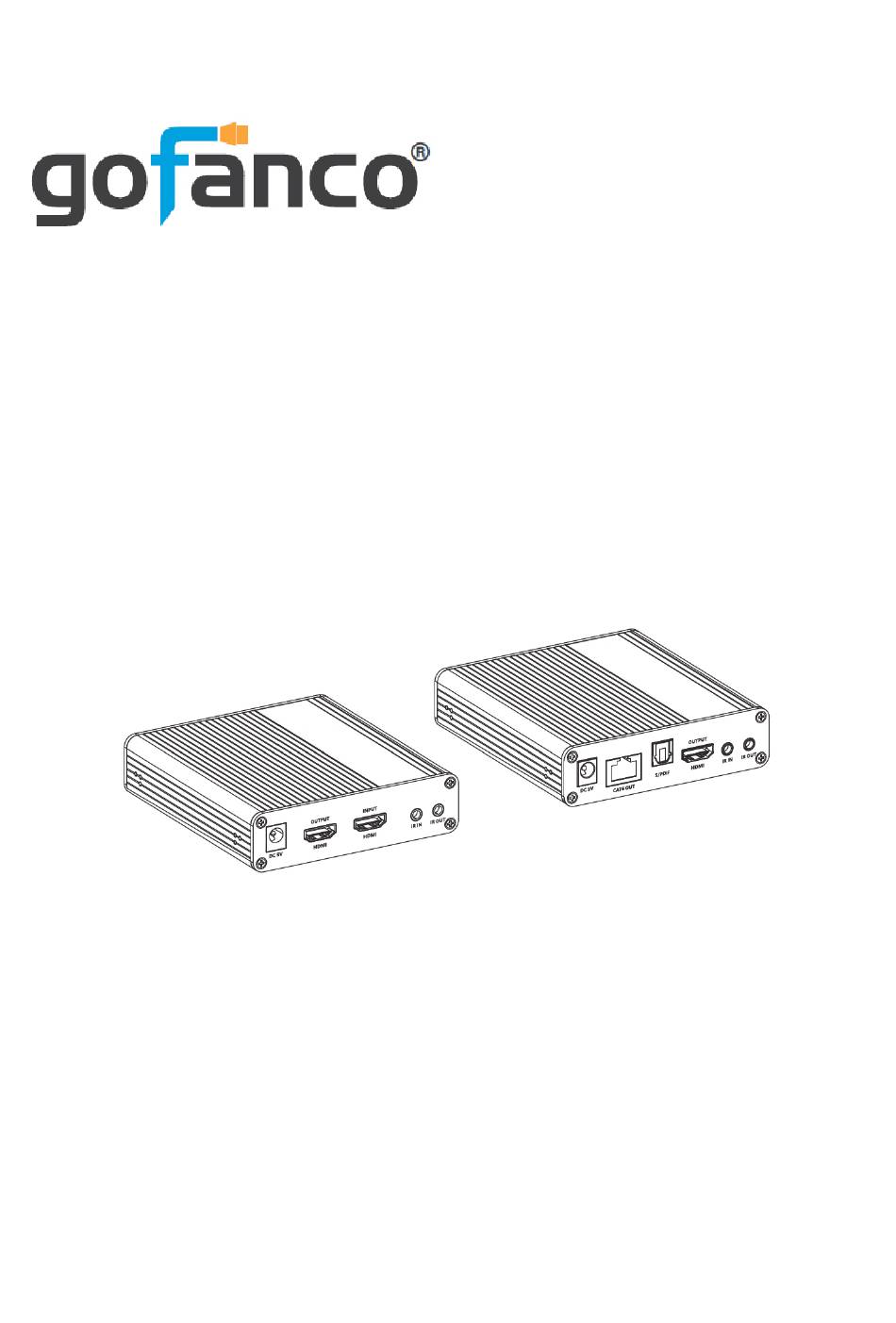

- Page 1 18G HDMI 2.0 CAT Extender with Cascade - 70m User's Guide P/N: HD20Ext-Cas & HD20Ext-RX G4-0109A...
- Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User’s Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
- Page 3 • Shut off power and make sure environment is safe before installation • Do not plug the HDMI cables and IR cables in/out when the device is in use to avoid cable damage. Make sure they are plugged into the correct ports •...
- Page 4 • Supports 5.1ch digital audio and audio extraction to Toslink • Near zero latency • Lightning/Surge/ESD protection Package Contents • 18G HDMI 2.0 CAT Extender with Cascade - 70m (1 Transmitter & 1 Receiver) • 1x IR Blaster cable and 1x IR Receiver cable •...
- Page 5 Product Layout Transmitter TX Front and Rear Panel Reset Button: Press to reset the TX RJ45 Out: Connects to the Receiver's RJ45 In using a CAT cable Power/Signal LED: Blinks when powered on with no HDMI signal detected, and solid on when HDMI signal is detected Power Jack: Connects to the included power adapter...

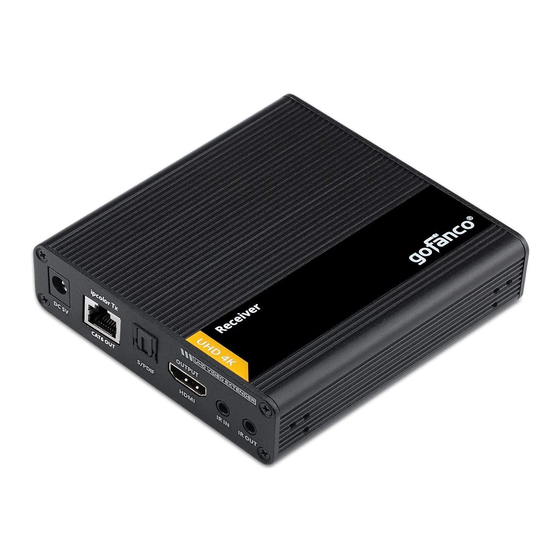

- Page 6 Receiver RX Front and Rear Panel Reset Button: Press to reset the RX Audio Switch: Extracts HDMI/ARC audio to Optical Out: • S/PDIF: Extracts audio from the HDMI source (from TX) to S/PDIF Toslink output • ARC: Extracts audio from the display (RX's HDMI output) to S/PDIF Toslink output RJ45 In: Connects to the Transmitter's RJ45...
- Page 7 RJ45 Out: Optional: When cascading receivers, connects to the latter receiver's RJ45 In using a CAT cable Optical Out: Connects to your speakers or HDMI Out: Connects to an HDMI display IR In: Connects to the included IR Receiver cable to control the remote display device from the HDMI source location 10.
- Page 8 Hardware Installation Power off all devices including your HDMI source and HDMI display(s). Connect your HDMI source device to the Transmitter's HDMI In connector with an HDMI cable (HDMI cable not included). Optional: Connect your HDMI display to the Transmitter's HDMI Out connector with an HDMI cable (HDMI cable not included) for local monitoring of the HDMI signal.
- Page 9 Plug the included power adapters into the TX's and RX's power jack, then plug the power adapters into reliable power sources. Power on all connected devices. 10. The HDMI extender is ready for use. IR Application Control HDMI source device from RX location Connect the IR Blaster cable to the TX's IR Out port.
- Page 10 Application Diagram 1-to-1 Connection 1-to-Many Connection...
- Page 11 FAQ & Troubleshooting There is no video output: 1) Check the HDMI source device is powered on. 2) Check the HDMI cables for solid connection. Use different HDMI cables if necessary. 3) Check the CAT cables for solid connection. Use different CAT cables if necessary 4) Connect the HDMI source device directly to the display to see if there is a signal.
-
Page 12: Specifications
Specifications Item Specifications HDMI Signal HDMI 2.0 and HDCP 2.2 compatible 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840X2160@24/30/50/60Hz, Resolution 4096x2160@24/25Hz, 1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900, 1024x768, 800x600 Low resistance, oxygen free, 100% Network Cable copper (CAT6/CAT6A/CAT7) Audio Formats Up to Dolby Digital 5.1Ch Transmission Distance Up to 230 ft (70m) - Page 13 Blank Page...
- Page 14 Blank Page...
- Page 15 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user’s guide. The pictures on the user’s guide are just for reference, and there may be some slight differences with the actual products.
- Page 16 Thank you for choosing gofanco www.gofanco.com...
