Control Section B - EWM Puls Operating Instructions Manual

Intended use
Machine control – Operating elements
Item Symbol
6
3.4.1.2

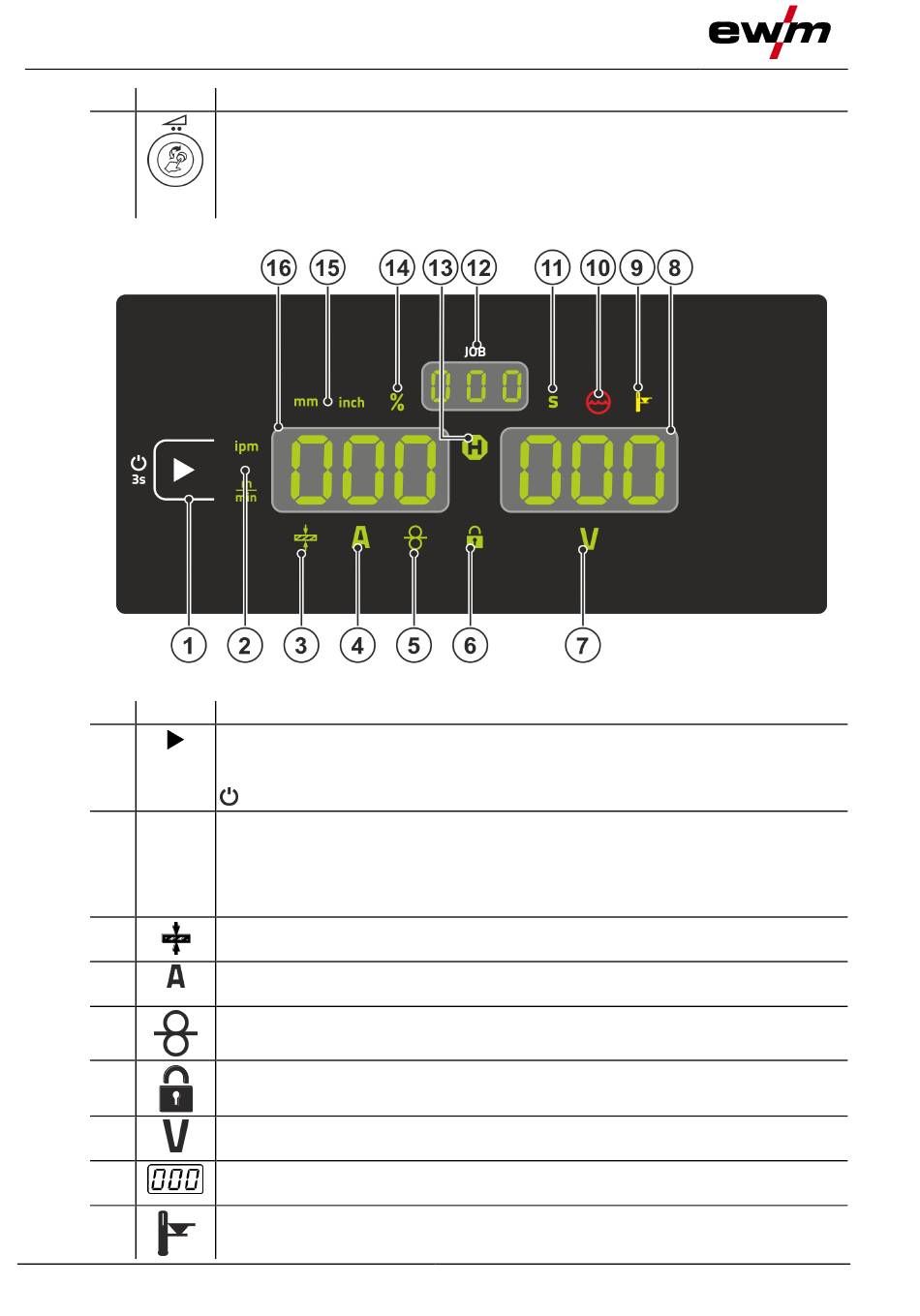

Control section B

Item Symbol
1
2
3
4
5
6
7
8
9
10
Description 0
Correction of arc length click wheel
• ---------- Setting the arc length correction > see 4.2.2.3 chapter
• ---------- Setting arc dynamics > see 4.2.2.4 chapter
• ---------- Setting various parameters values depending on the preselection.
The white signal lights (LED) around the rotary knob light up when setting is possible.
Description 0
Display left / Lock function push-button
Switching the device display between various welding parameters. Signal lamps show
the selected parameter.
-------- Press for 3 s to put the machine into lock function > see 3.6.5 chapter.
Wire feed speed unit signal light
m/min --- Parameter value is displayed in meters per minute.
ipm ------ Parameter value is displayed in inches per minute.
Switching between metric or imperial system via special parameters
"P29" > see 4.4 chapter.
Material thickness signal light
Indication of the selected material thickness.
Welding current signal light
Display of the welding current in amperes.
Signal light, Wire speed
Lights when the wire speed is shown on the display.
Lock function signal light
Use display left / lock function push-button to switch on and off.
Correction voltage arc length signal light
Display of correction voltage arc length in volts.
Display, right > see 3.5 chapter
V --------- welding voltage
Excess temperature signal light / Welding torch cooling failure
For error messages > see 5 chapter
Figure 3-3
099-0M37XK-EW501
16.07.2018
